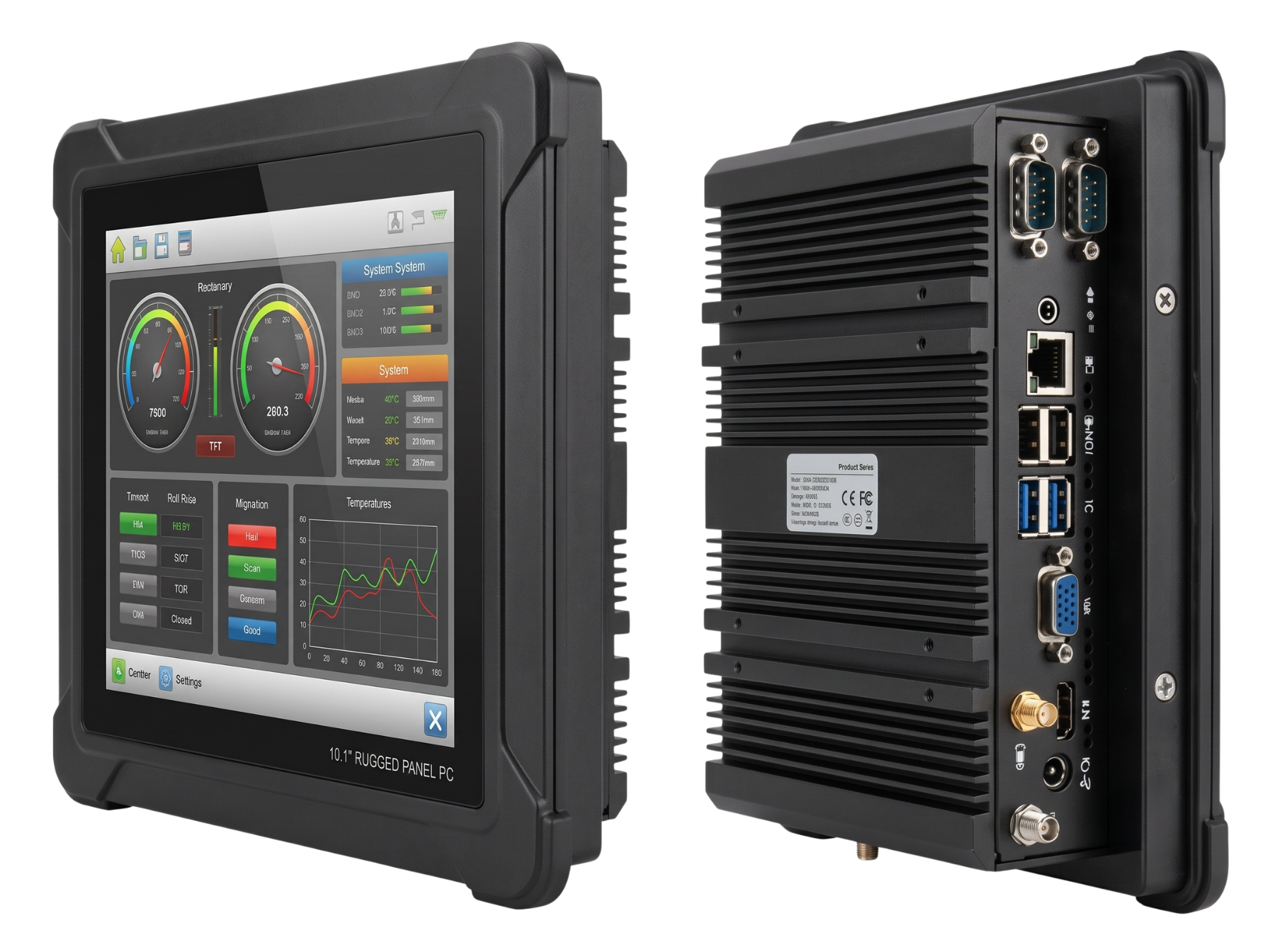

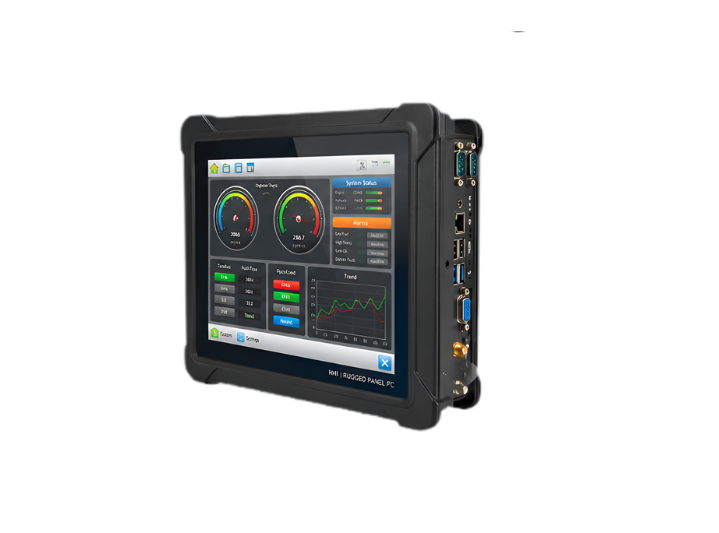

10.1" Rugged Panel PC (CC104RPPC-J1900)
INDUSTRIAL GRADE
CC104RPPC-J1900
Intel® Celeron® J1900 @2.00GHz (Burst 2.42GHz) | 8GB RAM | 256GB SSD | Windows 11 Pro
Model Number:
CC104RPPC-J1900
Reference No.:
202609150132
KEY HIGHLIGHTS
- Processor: Intel® Celeron® Quad-Core Processor J1900 with passive fanless thermal architecture.

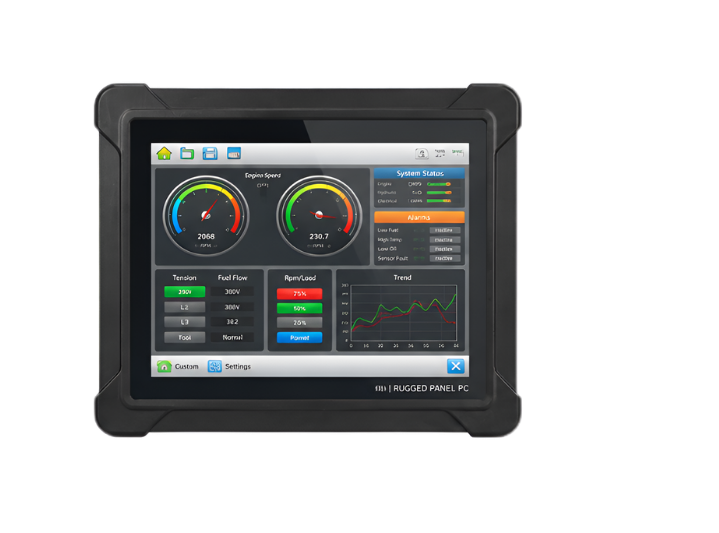

- Display & Touch: 10.1" High-Brightness Industrial TFT LCD (1280×800) with Projected Capacitive (PCAP) Multi-Touch / Armored Glass.
- Ingress Protection: Full IP65/IP66 front aluminum bezel sealed against high-pressure water jets and fine dust ingress.
- Extensive Industrial I/O: Dual Gigabit Ethernet RJ45, 2x RS-232/422/485 serial ports, USB 3.0, and independent HDMI/VGA dual displays.
- Power Architecture: Wide input range 9V – 36V DC terminal block with integrated over-voltage and surge protection.
Technical Specifications
RAM 8GB / 256GB SSD M.2 | OS Windows 11 ProDisplay
Screen Diagonal:10.1" Rugged TFT LCD
Aspect Ratio:16:10
Resolution:1280 × 800 WXGA
Active Area:216.96 × 135.60 mm
Brightness:350 cd/m² (Sunlight Readable)
Contrast Ratio:800:1
LED Lifetime:30,000 h
Visual Angle:170° / 170°
Display Interface:LVDS
Touch Panel
Touch Type:Projected Capacitive 10-Point Multi-Touch
Glass Thickness:1.1 mm (Chemically Etched)
Surface Treatment:Anti-Glare (AG), Anti-Fingerprint
Impact Rating:IK08 Vandal Resistant
Strengthening:Thermally Strengthened Armored Glass
Touch Controller:EXC81W60 (USB Interface)
Optical Bonding:Clear Bond® (Full Gapless Lamination)
PC System
Processor:Intel® Celeron® J1900 Quad-Core @2.00 GHz
System Memory (RAM):8 GB DDR3L SO-DIMM
Primary Storage:256 GB M.2 NVMe / SATA High-Speed SSD
Installed OS:Windows 11 Pro (64-bit Pre-activated)
Alternative OS:Windows 10 IoT Enterprise, Ubuntu 22.04 LTS
Cooling System:100% Fanless Passive Thermal Design
Graphics:Intel® HD Integrated Graphics
Audio:Realtek Audio (Integrated 2x 2W Speakers)
Environmental Conditions
Operating Temperature:-20°C ~ +60°C (Wide Industrial Range)
Storage Temperature:-30°C ~ +70°C
Relative Humidity:10% - 95% RH (Non-Condensing)
Vibration Resistance:5-500Hz, 2Grms Random (Operational)
Shock Resistance:20G Peak Acceleration (11ms Duration)
Interface & I/O Ports
Ethernet (LAN):2x RJ45 Gigabit Ethernet
USB Ports:1x USB 3.0 Type-A, 3x USB 2.0 Type-A
Serial COM:2x DB9 RS-232 / RS-422 / RS-485
Display Outputs:1x HDMI, 1x VGA (Dual View)
Audio Jack:1x 3.5mm Line-Out, 1x Mic-In
Wireless Expansion:1x Mini-PCIe (Supports Wi-Fi / 4G LTE)
SIM Card Slot:1x Onboard Micro-SIM Slot
Power Connector:3-Pin Lockable Phoenix Terminal Block
Chassis & Mechanical
Enclosure Material:Milled Heavy-Duty Aircraft-Grade Aluminum
Ingress Protection:IP65 / IP66 Front Bezel Water & Dust Sealed

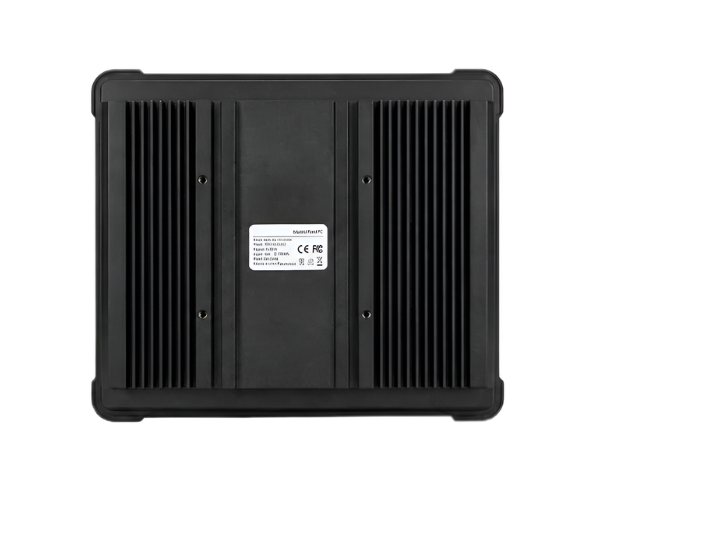

Rear Housing:IP40 Heavy-Duty Passive Heat-Sink Chassis
Dimensions (L×W×H):244.9 × 195.8 × 44.0 mm
Panel Cut-Out (L×H):231.0 × 190.0 mm
Mounting Options:Panel Mount & VESA 100 × 100
Power
Input Voltage:Wide Range 9V – 36V DC Input
Power Consumption:20W Typical Industrial Load
Electrical Protection:Over-Voltage, Over-Current & Reverse
Status Indicator:Front-facing Green LED (Power / Storage)
Rugged Standards & Certifications
Ingress Protection:Full IP65 / IP66 Certified
Defense EMI/EMC:Compliant with MIL-STD-461G
Environmental:Tested to meet MIL-STD-810G/H
Commercial Standards:CE, FCC Class A, RoHS Compliant
Net / Gross Weight:2.00 kg / 2.90 kg est.
Included in Package:
100-240V AC to 12V DC Industrial Power Adapter, Panel Mount Hardware Clamps, Wi-Fi Antenna, Quick Start Manual.
