Rugged Computing Solutions
Mission-Critical Rugged Computing Systems
Comptek designs and manufactures high-performance rugged computing solutions engineered to withstand extreme vibrations, harsh weather, moisture, and dust. Serving vital sectors including Defence, Aerospace, Railways, and Heavy Manufacturing, we provide failure-free performance where standard commercial IT cannot survive.
Key Highlights:
- Built Tough: Engineered for extreme shock, vibration, dust, and moisture.
- Reliable Performance: 24/7 continuous operation in severe operating temperatures.
- Complete Portfolio: Rugged Laptops, Tablets, Panel PCs, Displays, and Handhelds tailored to industrial standards.
Featured Rugged Computing Products
Engineered to outperform in mission-critical environments. Discover Comptek’s high-reliability rugged laptops, tablets, touch monitors, embedded BOX, workstation, console systems, ethernet switch, servers, PCs, smartphone, keyboard, and accessories.
Rugged Panel PCs

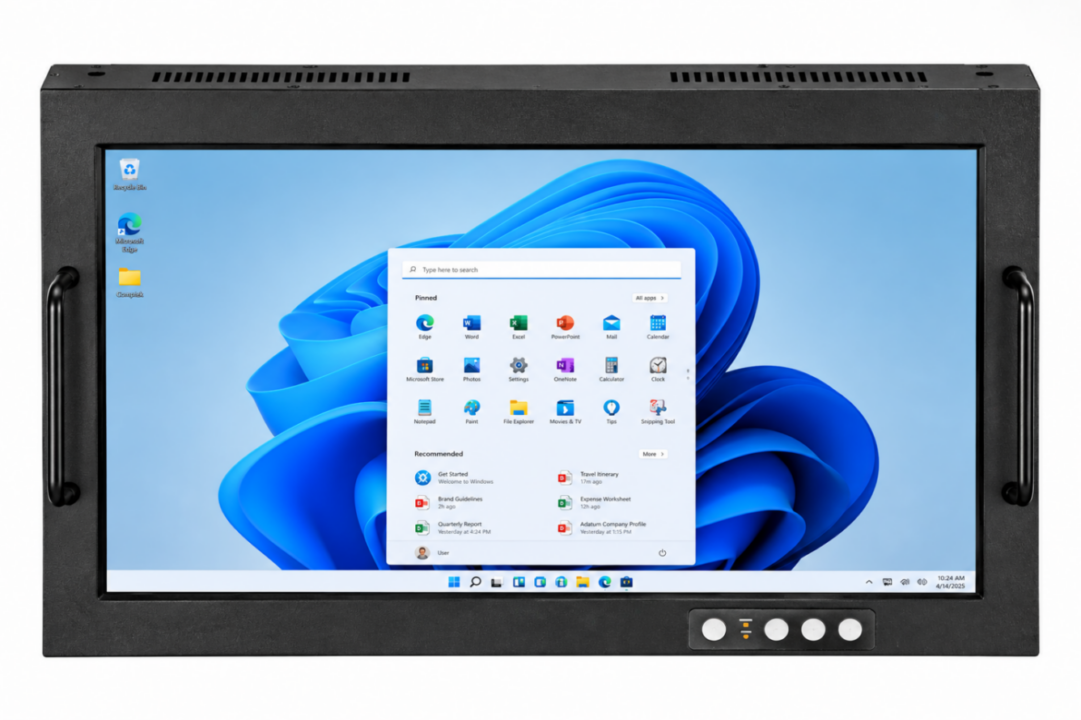

Rugged Monitor LCD

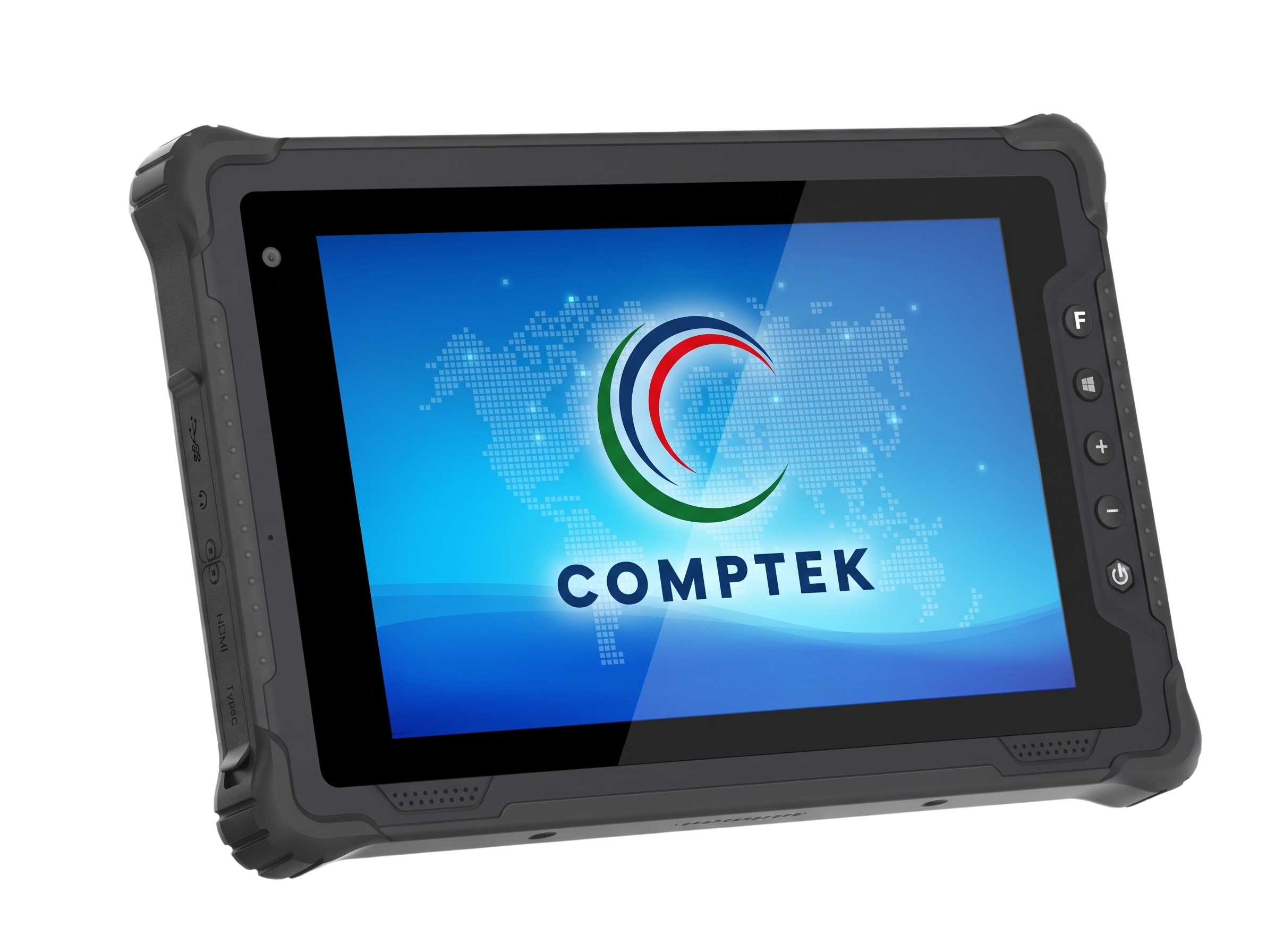

Rugged Tablet PCs

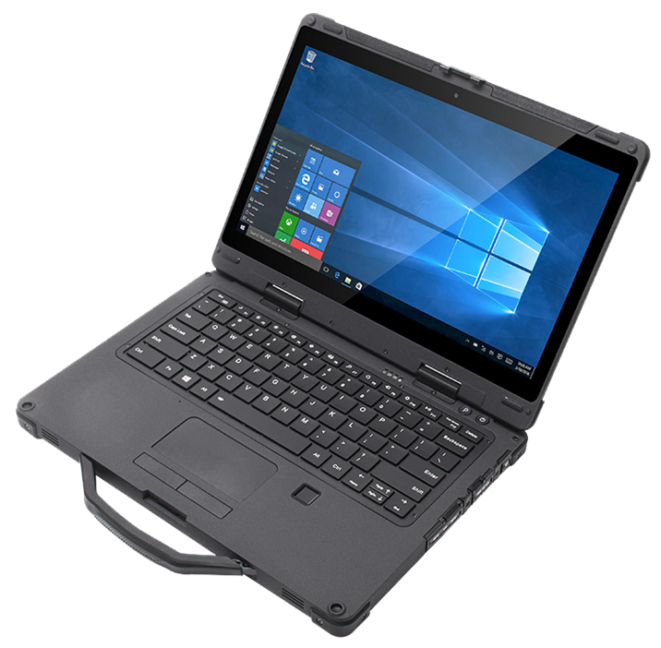

Rugged Laptop
Key Specifications:
- Performance: Intel Core i5 / i7 (up to 4.2GHz), 16GB / 32GB RAM, 512GB / 1TB / 2TB M.2 NVMe SSD
- Protection: Full IP65 / IP66 rated dust and water-resistant front bezel
- Display & Touch: Sunlight-readable high-brightness LCD with Projected Capacitive (PCAP) / Resistive Touch
- Industrial Design: Fanless wide-temperature design (-20°C to 60°C) with Dual LAN, COM ports, & Wide DC Input
Key Specifications:
- Performance: Intel Core i5 / i7 (up to 4.2GHz), 16GB / 32GB RAM, 512GB / 1TB / 2TB M.2 NVMe SSD
- Protection: Full IP65 / IP66 rated dust and water-resistant front bezel
- Display & Touch: Sunlight-readable high-brightness LCD with Projected Capacitive (PCAP) / Resistive Touch
- Industrial Design: Fanless wide-temperature design (-20°C to 60°C) with Dual LAN, COM ports, & Wide DC Input
Key Specifications:
- Performance & OS: Intel Celeron / Core / Atom; Up to 32GB RAM & 1TB SSD; Windows / Android / Linux
- Display & Touch: 8" to 13.3" Sunlight-Readable multi-touch screen with Glove & Rain mode
- Rugged Certification: IP67 / IP68 rated waterproof/dustproof with MIL-STD-810G / 810H compliance
- Data Capture: Integrated 1D/2D Barcode Scanner, NFC card reader, and smart card options
Key Specifications:
- Performance: Intel Core i5 / i7 / i9 (up to 4.2GHz), 16GB / 32GB RAM, 512GB / 1TB / 2TB NVMe SSD
- Display & Graphics: 14" / 15.6" Sunlight-Readable FHD anti-glare display with optional touch
- Durability: MIL-STD-810G / 810H certified, IP65 / IP66 rated for extreme drops, shock, & vibration
- Field Ready: Hot-swappable dual battery design, RS232 COM ports, Dual GbE LAN, & 4G/5G LTE support
Fully Embedded BOX PC
Rugged Workstation

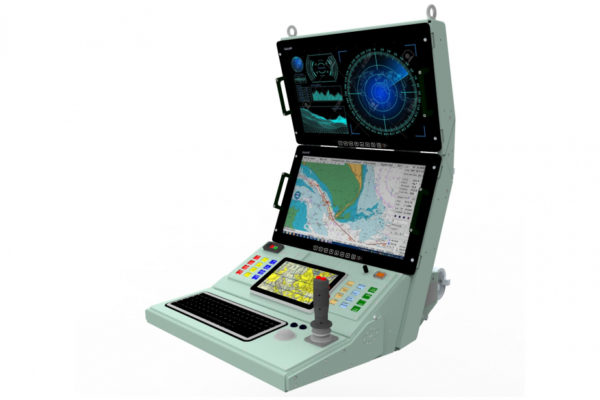

Rugged Console Systems
Rugged Ethernet Switch
Key Specifications:
- Computing Power: Intel Xeon / Core i7 / i9 Processors, Up to 128GB ECC/Non-ECC DDR4/DDR5 RAM
- High-End Graphics: Dedicated NVIDIA Quadro / RTX GPU support for AI, mission control, & 3D rendering
- Storage & Redundancy: Multi-drive NVMe SSD / SATA SSD with RAID 0/1/5/10 data protection support
- Durability & Build: Shock-resistant heavy-duty chassis, MIL-STD-810G certified, & redundant industrial power supply
Key Specifications:
- Display Configurations: 21.5" to 24" Single, Dual, & Triple Sunlight-Readable FHD/4K LCD Displays
- Form Factor: 19" Rackmount 1U/2U fold-down console with integrated industrial keyboard & touchpad/trackball
- Defense Grade: Rugged aluminum/steel chassis designed to meet MIL-STD-810G and MIL-STD-461E/F standards
- Connectivity & Video: Multi-input HDMI, DVI, VGA, DisplayPort with integrated KVM switch support
Key Specifications:
- Port Configurations: 4 to 24+ Port GbE / 10GbE RJ45 & SFP/SFP+ Fiber Uplink options
- Network Management: Managed / Unmanaged L2/L3 switching with QoS, VLAN, IGMP Snooping, & Rapid Ring redundancy
- Industrial Grade: Fanless IP40/IP67 rugged metal chassis with wide operating range (-40°C to 75°C)
- Power & Reliability: Dual redundant DC power inputs (12V–48V) with built-in high surge/ESD protection
Rugged Server PCs
Rugged Smartphone
Rugged Keyboard
Rugged Accessroies
Key Specifications:
- Processing Power: Single / Dual Intel Xeon Scalable Processors, Up to 512GB ECC Registered DDR4/DDR5 RAM
- Form Factor: 1U / 2U / 4U Short-Depth Rackmount rugged aluminum chassis engineered for defense & naval applications
- High-Speed Storage: Multiple Hot-Swappable U.2 NVMe / SATA SSD Bays with Hardware RAID 0/1/5/6/10 support
- Rugged Reliability: MIL-STD-810G/H & MIL-STD-461E/F compliant, wide-temp operation, with redundant AC/DC power supply
Key Specifications:
- Performance & OS: Octa-Core High-Performance Processor, Android Enterprise Recommended, Up to 8GB RAM & 128GB/256GB Storage
- Display & Touch: 5.5" to 6.3" Sunlight-Readable FHD+ Gorilla Glass screen with Glove & Wet-Finger tracking
- Rugged Certification: IP68 / IP69K rated waterproof/dustproof, MIL-STD-810H certified for extreme drops & vibration
- Field Connectivity: 5G/4G LTE Dual SIM, Dedicated PTT (Push-to-Talk) button, NFC, & Integrated 1D/2D Barcode Scanner option
Key Specifications:
- Protection Rating: Full IP65 / IP68 rated sealed silicone rubber or stainless steel waterproof design
- Form Factor & Layout: Compact desktop, panel-mount, or 19" rackmount with integrated touchpad or trackball
- Backlighting & Typing: Adjustable NVIS / red / green LED backlit keys suitable for low-light defense environments
- Durability & Standards: MIL-STD-810G and MIL-STD-461 compliant with industrial USB / PS2 interface support
Key Specifications:
- Mounting & Docks: Heavy-duty vehicle docking stations, desk cradles, and VESA mount brackets
- Power Solutions: Multi-bay battery chargers, AC/DC industrial adapters, & high-capacity spare batteries
- Field Mobility: Ergonomic hand straps, shoulder harnesses, carry handles, & protective rubber bumpers
- Input & Cabling: Active digitizer styluses, MIL-STD rugged connectors, and IP67 sealed interface cables
End-to-End Manufacturing & Engineering Workflow
From initial technical inquiry to final field deployment, our certified manufacturing process guarantees high reliability, precision engineering, and rigorous military-grade quality standards.
Inquiry & Specs
Requirement analysis, application environments, & spec finalization.
Engineering & Design
3D CAD mechanical modeling, thermal analysis, & custom schematics.
CNC Fabrication
Precision CNC machining, sheet metal, & rugged enclosure milling.
Component Sourcing
Industrial hardware, optical bonding LCDs, & MIL-grade components.
Precision Assembly
ESD-controlled integration, IP sealing gaskets, & thermal pads.
QC & Testing
Burn-in, drop/shock, thermal chamber (-20°C to 60°C), & IP tests.
Secure Delivery
Anti-vibration packing, QA compliance sign-off, & client dispatch.
Electromagnetic Compatibility (EMC)
What is Electromagnetic Compatibility (EMC)?
Electromagnetic compatibility (EMC) is the branch of electrical engineering concerned with the unintentional generation, propagation, and reception of electromagnetic energy, which may cause unwanted effects such as electromagnetic interference (EMI) or physical damage to operational equipment.
EMC addresses three key concerns: Emission (unintended generation of EM energy), Susceptibility / Immunity (the tendency of electrical equipment to malfunction in the presence of unwanted emissions), and the Coupling Mechanism (the path through which interference travels).
Radiated EMI
Interference transmitted wirelessly through space. Typically evaluated across high frequency bands (30 MHz to 10 GHz / FCC guidelines).
Conducted EMI
Unwanted signals propagating directly through power lines, cabling, and PCB ground traces (typically from several kHz to 30 MHz).
Regulatory Standards of EMI
Key national and defense standards governing electromagnetic interference and product immunity:
| Entity / Sector | Applicable Standard & Description |
|---|---|
| USA | FCC Part 15, Subpart J (Unintentional Radiators, Class A / B) |
| Canada | CSA (Canadian Standards Association) |
| Defense / Military | MIL-STD-461: Requirements for the Control of Electromagnetic Interference Characteristics of Subsystems and Equipment |
| Aviation / Aerospace | DO-160: Environmental Conditions and Test Procedures for Airborne Equipment (Section 21/22) |
| Healthcare / Medical | IEC 60601-1-2: Medical electrical equipment — Electromagnetic disturbances, requirements, and tests |
Electromagnetic Compatibility Solutions
To guarantee full compliance and avoid costly redesigns, our engineering incorporates specialized mechanical and material shielding solutions:
Metal Foil Tape
Conductive copper or aluminum backing for quick seams, cable wrapping, and enclosure repair.
Conductive Paint
Nickel, copper, or silver-filled spray coatings to shield non-conductive plastic housing interiors.
Conductive Plastic Cases
Molded thermoplastic embedded with carbon or stainless steel microfibers for structural shielding.
Conductive Conformal Metal Gasket
Elastomeric core wrapped in woven metallized fabric for low-resistance chassis joint seals.
Custom Conductive Gasket
Die-cut custom form factors ensuring continuous ground contact across custom bezel interfaces.
Special Purpose Electronic Shielding
Board-level metal cans, mu-metal high-permeability magnetic barriers, and display mesh filters.
Conductive O-Ring
Silver-aluminum loaded silicone elastomers providing dual IP67 waterproof and EMI shielding.
Connector Gasket
Flange gaskets for D-sub, RJ45, USB, and circular military connectors preventing aperture leakage.
Compressible Gasket
Beryllium copper or stainless steel fingerstock strips providing high spring-recovery seam seals.
