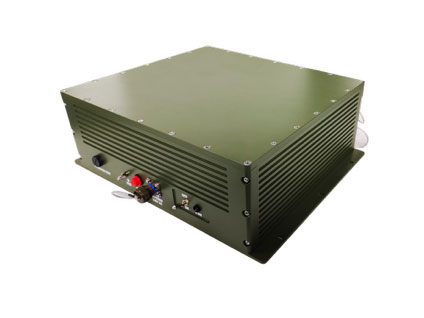

Rugged Ethernet Switch (CCRES Series)
MIL-SPEC C4ISR NETWORKING
CCRES-8P / 16P / 24P
8-Port Gigabit Base / Optional 16-Port & 24-Port | Optional 10GbE Fiber Ports | MIL-DTL-38999 Circular Connectors | IP67 Fanless Passive Cooling
Base Model:
CCRES-8P (8-Port Gigabit Ethernet Switch)
Optional Models:
CCRES-16P (16-Port) / CCRES-24P (24-Port) / CCMES-12P (12x 10G Copper + 4x 10G Fiber)
Defense Interconnects:
Amphenol MIL-DTL-38999 Series III Circular Connectors
KEY HIGHLIGHTS
- Versatile Port Scalability: Available in 8-Port (CCRES-8P) standard configuration with seamless scaling up to 16-Port (CCRES-16P), 24-Port (CCRES-24P), and high-bandwidth 12-Port 10GBASE-T + 4x 10G Fiber (CCMES-12P).
- Full Layer 2 / Layer 3 / Layer 4 Management: Wire-speed switching architecture with static routing, RIP v1/v2, OSPF v2/v3, VRRP, ECMP, VLAN Q-in-Q, and IGMP snooping multicast support.
- Heavy-Duty Military Interconnects: Equipped with lockable Amphenol MIL-DTL-38999 circular defense connectors ensuring IP67 water, sand, and dust ingress sealing.
- High-Reliability Power Engine: Wide isolated DC input range of 18V – 32V (24VDC Nominal) with MIL-STD-1275E/B spike, transient, and surge protection.
- Extreme Environmental Protection: Rugged machined aircraft aluminum enclosure with NATO green MIL-C-83286 Type II finish, certified for MIL-STD-810F/G/H shock and vibration.
- 100% Fanless Passive Conduction: Silent, solid-state thermal management with zero moving parts, certified for continuous operation from -40°C to +75°C.
Technical Specifications
Complete Defense Network Hardware SpecsEthernet Switching & Architecture
Base Ethernet Ports:8x 10/100/1000 Mbps Gigabit Ports (CCRES-8P)
Optional High-Density:16-Port (CCRES-16P) / 24-Port (CCRES-24P)
10G Managed Model:12x 10G Copper + 4x 10G Fiber (CCMES-12P)
Switching Architecture:Store-and-Forward Wire-Speed Non-Blocking
Forwarding Rate:Up to 240 Mpps Wire-Speed Forwarding
Switching Bandwidth:Up to 320 Gbps Switching Capacity
MAC Address Table:Up to 32K MAC Address Entries
Jumbo Frame Support:Up to 10K Jumbo Frame Bytes
Layer 2 / Layer 3 Protocol Features
Routing Capabilities:Static Routing, RIP v1/v2, OSPF v2/v3, VRRP & ECMP
VLAN Architecture:IEEE 802.1Q (Up to 4K VLANs), VLAN Q-in-Q
Multicast Protocols:IGMP Snooping, GARP, GMRP, MLD, GVRP
Ring Redundancy:STP (802.1D), RSTP (802.1w), MSTP (802.1s), Fast Ring
Link Aggregation:IEEE 802.3ad LACP Port Trunking
Network Management:Web GUI, CLI, Telnet & SNMP v1/v2/v3
Network Security & Quality of Service (QoS)
Access Security:IEEE 802.1X RADIUS Authentication, TACACS+
Port & Hardware ACL:Advanced Content-Aware Hardware ACL Policer
Attack Protection:CPU DoS Protection, IP Fragment & TCP Filtering
Traffic Queuing:Per-Port WFQ & Strict Queue Scheduling
Traffic Shaping:Ingress & Egress Rate Limiting (500 Kbps Granularity)
Storm Control:Broadcast, Multicast & Unknown Unicast Limiting
Interconnects & Physical Ports
Data Connectors:Amphenol MIL-DTL-38999 Series III Circular
Power Connector:Amphenol MIL-DTL-38999 Circular Jam-Nut
Fiber Connector:Optional MIL-DTL-38999 Circular Optical Fiber
Console Management:RS-232 Console via D38999 Circular Interface
LED Indicators:Power Status, Port Link & 10G/Gigabit Activity LEDs
Power Architecture & Electrical Specs
Nominal DC Input:24V DC Nominal Input
Operating Voltage Range:18V – 32V Wide DC Input Range
Vehicle Surge Compliance:MIL-STD-1275E/B Surge & Spike Protection
Aircraft Bus Compliance:MIL-STD-704A Electrical Characteristics
Maximum Consumption:87W with Full Load & Chassis Grounding
Mechanical & Environmental Protection
Chassis Enclosure:Machined Rugged Heavy-Duty Aircraft Aluminum
Thermal Cooling:100% Fanless Passive Cooling (Zero Moving Parts)
Dimensions (L×W×H):426 × 204 × 70 mm (Excluding Connectors)
Weight:Approximately 4.0 kg
Chassis Finish:NATO Green MIL-C-83286 Type II / Black Anodized
Ingress Protection:IP67 Waterproof, Sand, Dust & Moisture Sealed
Operating Temperature:-40°C to +75°C (-40°F to +167°F)
Storage Temperature:-40°C to +85°C (-40°F to +185°F)
Shock & Vibration:MIL-STD-810F/G Method 514.6 & Method 516.6
EMI / EMC Standards:MIL-STD-461E / MIL-STD-461F Certified
Target Deployments:
Armored combat vehicles, naval shipboard consoles, aerospace command platforms, military tactical mobile communication shelters, and harsh industrial automation.
DEFENSE TACTICAL SWITCHING INFRASTRUCTURE
12-Ports Military Managed Ethernet Switch
Model No: CCMES-12P | Comptek Computer Systems Pvt. Ltd.The CCMES-12P Rugged Military Managed Ethernet Switch from Comptek Computer Systems Pvt. Ltd. is engineered to deliver secure, high-speed, and reliable networking for mission-critical defence, aerospace, industrial, and transportation applications.
Supporting 12 × 10GBASE-T Copper Ports and 4 × 10G Fiber Ports, the CCMES-12P delivers high-bandwidth, secure, and reliable networking with advanced Layer 2/Layer 3 features, rugged fanless construction, military-grade connectors, and IP67 protection for mission-critical defense and industrial applications.
The CCMES-12P features a rugged aluminum enclosure with military-grade environmental protection for reliable operation in extreme temperatures, shock, vibration, dust, and moisture. Its fanless passive cooling design ensures maintenance-free performance, making it ideal for defence, aerospace, military vehicles, industrial automation, railways, oil & gas, mining, and other mission-critical networking applications.
Standard Model: CCRES-8P (8-Port Gigabit Switch)
Optional Variant: CCRES-16P (16-Port Gigabit Switch)
Optional Variant: CCRES-24P (24-Port Gigabit Switch)
Advanced Tactical: CCMES-12P (12x 10G Copper + 4x 10G Fiber Managed)
KEY FEATURES
- Fully Managed Layer 2 / Layer 3 / Layer 4 Ethernet Switch
- 12 × 10GBASE-T Copper Ethernet Ports
- 4 × 10G Fiber Optical Ports
- Wire-Speed Switching Architecture
- Static Routing, RIP v1/v2, OSPF v2/v3, VRRP & ECMP Support
- Advanced VLAN & VLAN Q-in-Q
- QoS Traffic Prioritization
- IEEE 802.1X Authentication
- ACL & Port Security
- Link Aggregation (802.3ad)
- IGMP Snooping & Multicast Support
- SNMP v2/v3, Web GUI, CLI & Telnet Management
- MIL-D-38999 Military Connectors
- 24VDC Power Input
- Rugged Aluminum Chassis & Fanless Passive Cooling
- IP67 Environmental Protection
TECHNICAL SPECIFICATIONS
| Ethernet Ports | Managed 12 × 10G copper ports + 4 × 10G fiber ports |
| Networking |
|
| Quality of Service (QoS) |
|
| Security |
|
| Redundancy & Ring Protection |
|
| Performance | 240 Mpps Wire-Speed Forwarding Rate, 320 Gbps Switching Bandwidth & 32K MAC Address Table |
| Connectors |
|
| Power |
|
| Chassis |
|
| Standards | MIL-STD-1275B, MIL-STD-704A, MIL-STD-461E, MIL-STD-810F/G & IP67 Compliant |
| Environmental |
|
| Physical |
|
| Cooling | Fanless Passive Cooling with No Moving Parts |
| Operating Temp | -40°C to +75°C (-40°F to +167°F) |
| Storage Temp | -40°C to +85°C (-40°F to +185°F) |
