Industrial Windows Panel PC Series

Essential (Atom / Celeron / N-Series) Performance (Core i3 / i5 / i7) Sizes: 7" – 45"

Comptek Industrial Windows Panel PC Series

Rugged Automation Multi-Touch Panel PCs & Embedded Workstations

Hover over any unit to view hardware specifications or click Full Specifications → to open the product details page.

Essential Computing

Fanless Intel® Atom®, Celeron® & N-Series Workstations

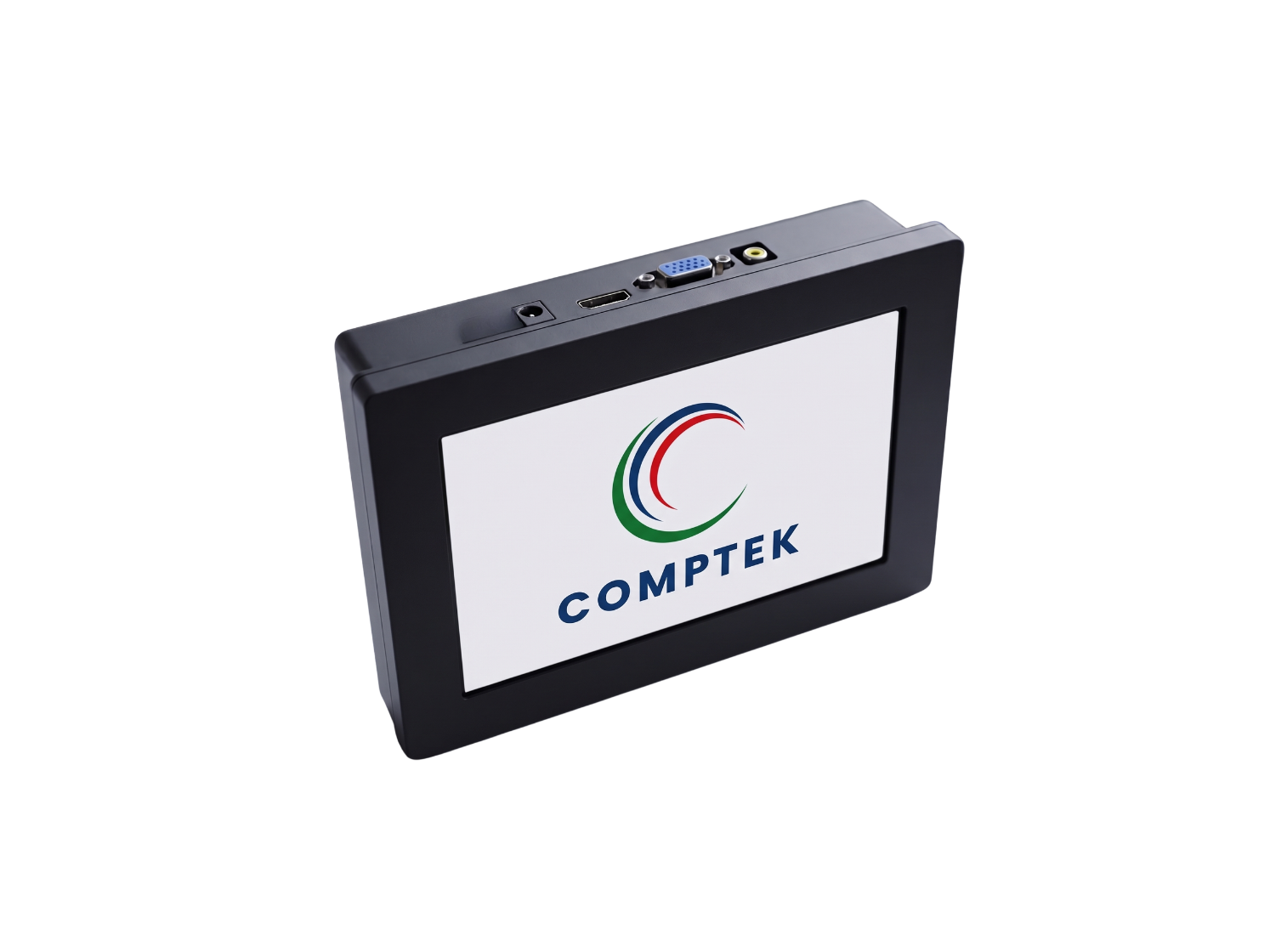

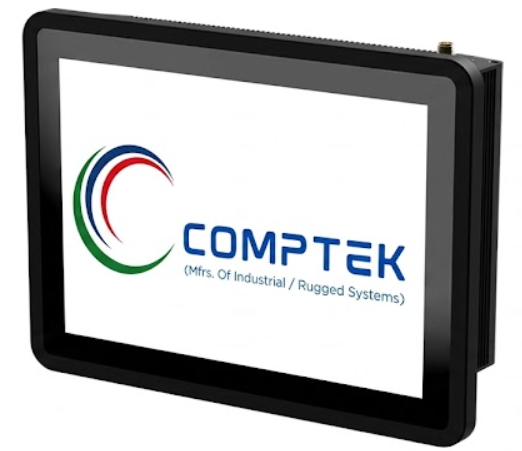

7" NEW!

CC07IPPC IP65 / IK08

Display: 7.0" Capacitive (500 cd/m²)
Processor: Intel Atom® x6413E Quad
RAM / SSD: 8GB DDR4 / 128GB SSD
Touch: 10-Point PCAP Touch
LAN: 2 × Gigabit Ethernet
Wireless: AX210 Wi-Fi 6 + BT
Expansion: SD Card + SIM Card
Mounting: VESA 100 × 100 mm

CC07IPPC

Intel® Atom® x6413E Quad-Core

Windows 10 / 11 IoT Enterprise Full Specifications →

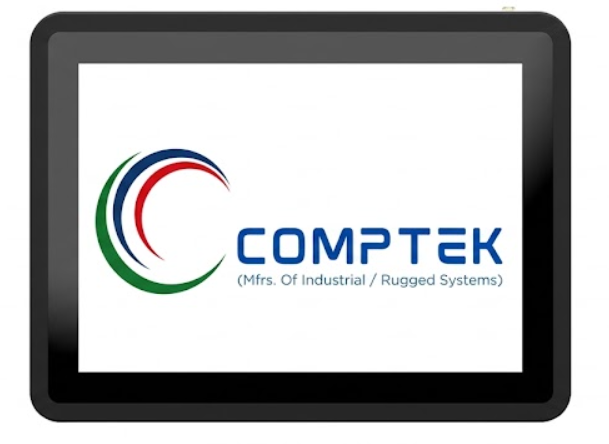

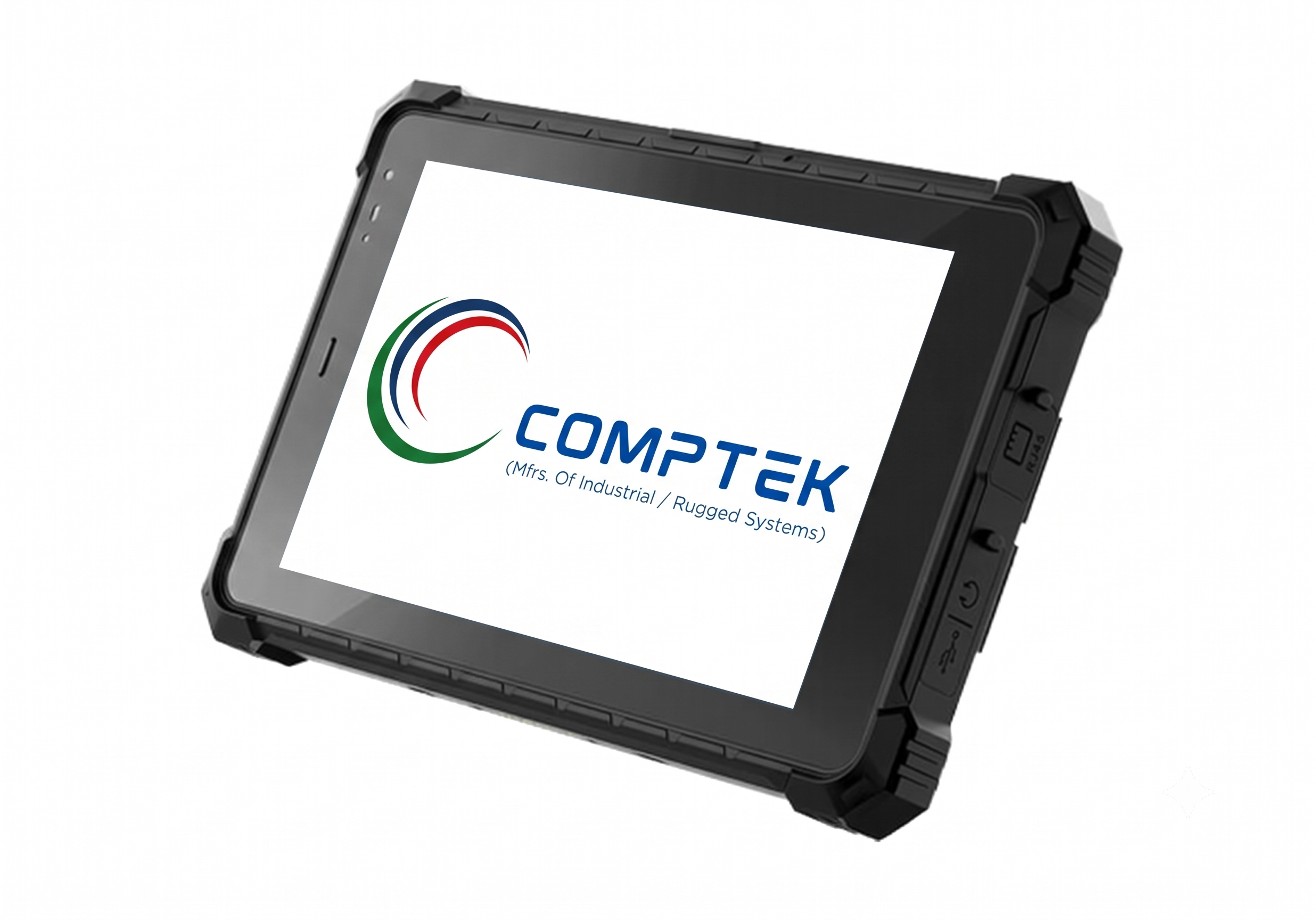

8" NEW!

CC08IPPC-N5 IP65 / IK08

Display: 8.0" Capacitive Touch
Processor: Intel Celeron® N5100 Quad
RAM / SSD: 8GB DDR4 / 128GB SSD
Touch: 10-Point PCAP Multi-Touch
LAN: 2 × Gigabit Ethernet
Wireless: AX210 Wi-Fi 6 + BT
Design: Fanless Aluminum Chassis
Mounting: VESA 100 × 100 mm

CC08IPPC-N5

Intel® Celeron® N5100 Quad-Core

Windows 10 / 11 IoT Enterprise Full Specifications →

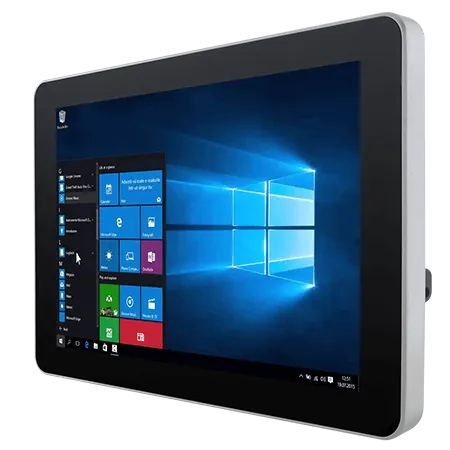

10.1" PoE ENABLED

CC101IPPC-N4 PoE PD 25W

Display: 10.1" 1280 × 800 (350 cd/m²)
Processor: Intel Pentium® N4200 2.5GHz
RAM / SSD: 4GB DDR3L (Max 8GB) / 128GB
PoE: IEEE 802.3at 25W PoE PD
LAN / COM: 2 × GbE, RS232/422/485
Security: TPM 2.0 / Front IP65
Mounting: Wall Mount / VESA

CC101IPPC-N4

Intel® Pentium® N4200 Quad-Core

Windows 10 / 11 IoT Enterprise Full Specifications →

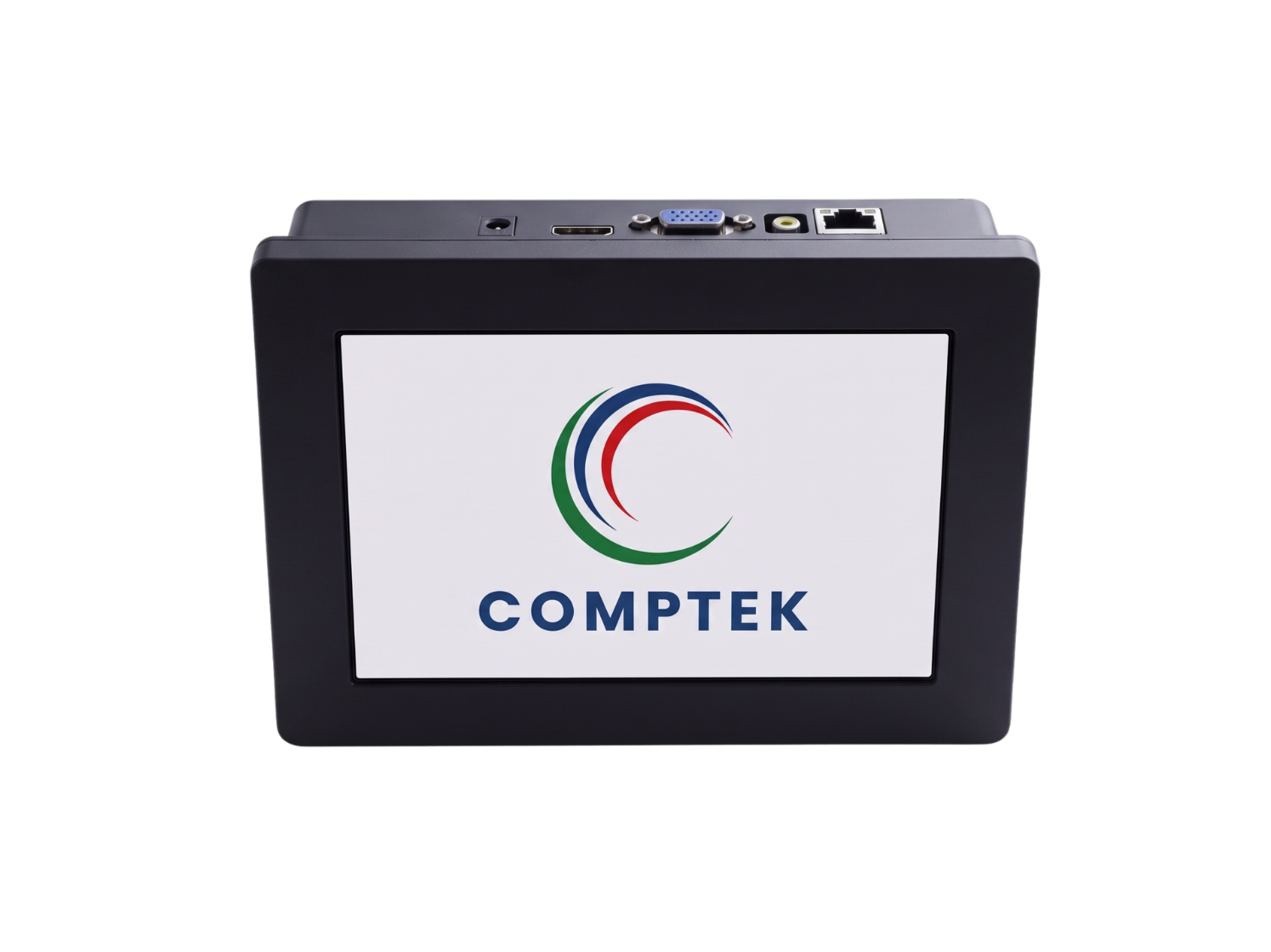

10.4" 600 NITS

CC104IPPC-N1 DDR5 / 2.5G

Display: 10.4" 800 × 600 (600 cd/m²)
Processor: Intel Processor N150 3.6GHz
RAM / SSD: 8GB DDR5-4800 / 128GB SSD
Touch: Opt. Resistive / Optical Glass
LAN: 2 × 2.5 Gigabit Ethernet
I/O: USB-C Gen 2, HDMI 2.0b, COM
Mounting: Open Frame / Panel / VESA

CC104IPPC-N1

Intel® Processor N150 (Twin Lake)

Windows 10 / 11 IoT Enterprise Full Specifications →

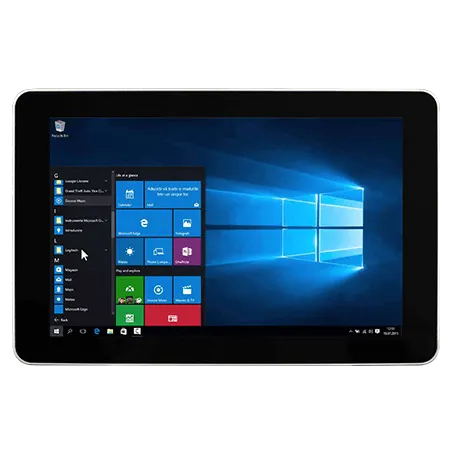

12.1" NEW!

CC121IPPC-N6 FRONT IP65

Display: 12.1" 1024 × 768 (500 cd/m²)
Processor: Intel Celeron® N6211 3.0GHz
RAM / SSD: 4GB RAM (Max 16GB) / 128GB
Touch: True-Flat PCAP Multi-Touch
LAN: 2 × 2.5 Gigabit Ethernet
Rugged: MIL-STD-810G Shock/Vibration
Mounting: VESA / Panel Mount

CC121IPPC-N6

Intel® Celeron® N6211 Elkhart Lake

Windows 10 / 11 IoT Enterprise Full Specifications →

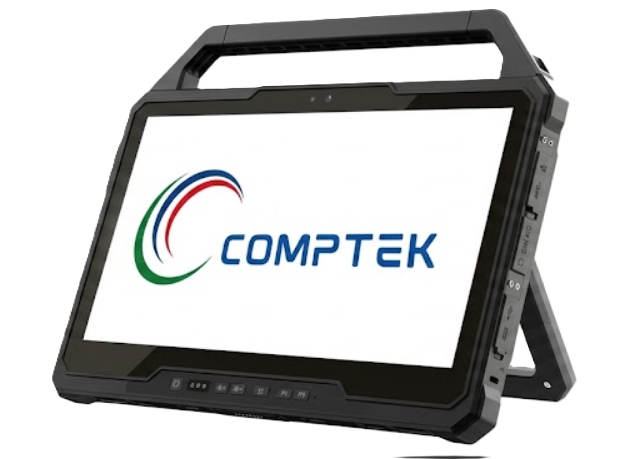

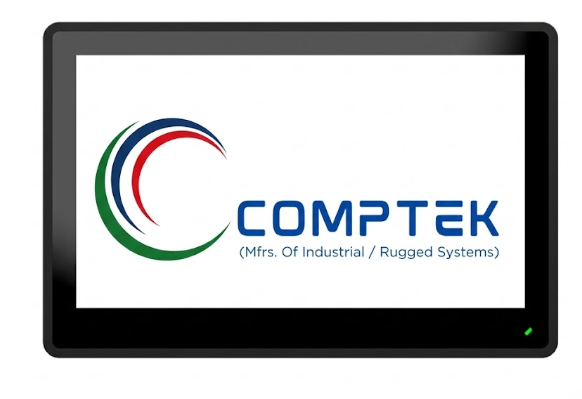

13.3" OPTICAL BOND

CC133IPPC IP65 / IK08

Display: 13.3" FHD (Clear Bond®)
Processor: Intel Atom® x6413E Quad
RAM / SSD: 8GB DDR4 / 128GB SSD
Touch: 10-Point PCAP Multi-Touch
LAN: 2 × Gigabit Ethernet
Wireless: Intel AX210 Wi-Fi 6 + BT
Expansion: SD Card + SIM Card Slot
Mounting: VESA 100 / Clamp Mount

CC133IPPC

Intel® Atom® x6413E Elkhart Lake

Windows 10 / 11 IoT Enterprise Full Specifications →

Performance Computing

High-Power Intel® 11th, 12th & 13th Gen Core™ i3 / i5 / i7 Workstations

10.4" CORE i5

CC104IPPC-i5 DDR5 / 2.5G

Display: 10.4" 1024 × 768 (500 cd/m²)
Processor: 12th Gen Core™ i5-1235U
RAM / SSD: 8GB DDR5-4800 / 128GB SSD
LAN: 2 × 2.5 Gigabit Ethernet
I/O: 2x USB 3.2 Gen 2, RS232/422/485
Audio: Dual Speakers / TPM 2.0
Mounting: Panel Mount / Optional VESA

CC104IPPC-i5

Intel® 12th Gen Core™ i5-1235U

Windows 10 / 11 IoT Enterprise Full Specifications →

12.1" CORE i5

CC121IPPC-i5 FRONT IP65

Display: 12.1" 1024 × 768 (500 cd/m²)
Processor: 12th Gen Core™ i5-1235U
RAM / SSD: 8GB DDR5-4800 / 128GB SSD
LAN: 2 × 2.5 Gigabit Ethernet
Touch: True-Flat PCAP Multi-Touch
Rugged: MIL-STD-810G Shock/Vibration
Mounting: VESA 75 × 75 / Panel Mount

CC121IPPC-i5

Intel® 12th Gen Core™ i5-1235U

Windows 10 / 11 IoT Enterprise Full Specifications →

15" 4:3 HMI

CC15IPPC-i5 FRONT IP65

Display: 15.0" 1024 × 768 (300 cd/m²)
Processor: 12th Gen Core™ i5-1235U
RAM / SSD: 8GB DDR5-4800 / 128GB SSD
LAN: 2 × 2.5 Gigabit Ethernet
Touch: True-Flat PCAP Multi-Touch
Rugged: MIL-STD-810G / Front IP65
Mounting: VESA 100 × 100 / Panel Mount

CC15IPPC-i5

Intel® 12th Gen Core™ i5-1235U

Windows 10 / 11 IoT Enterprise Full Specifications →

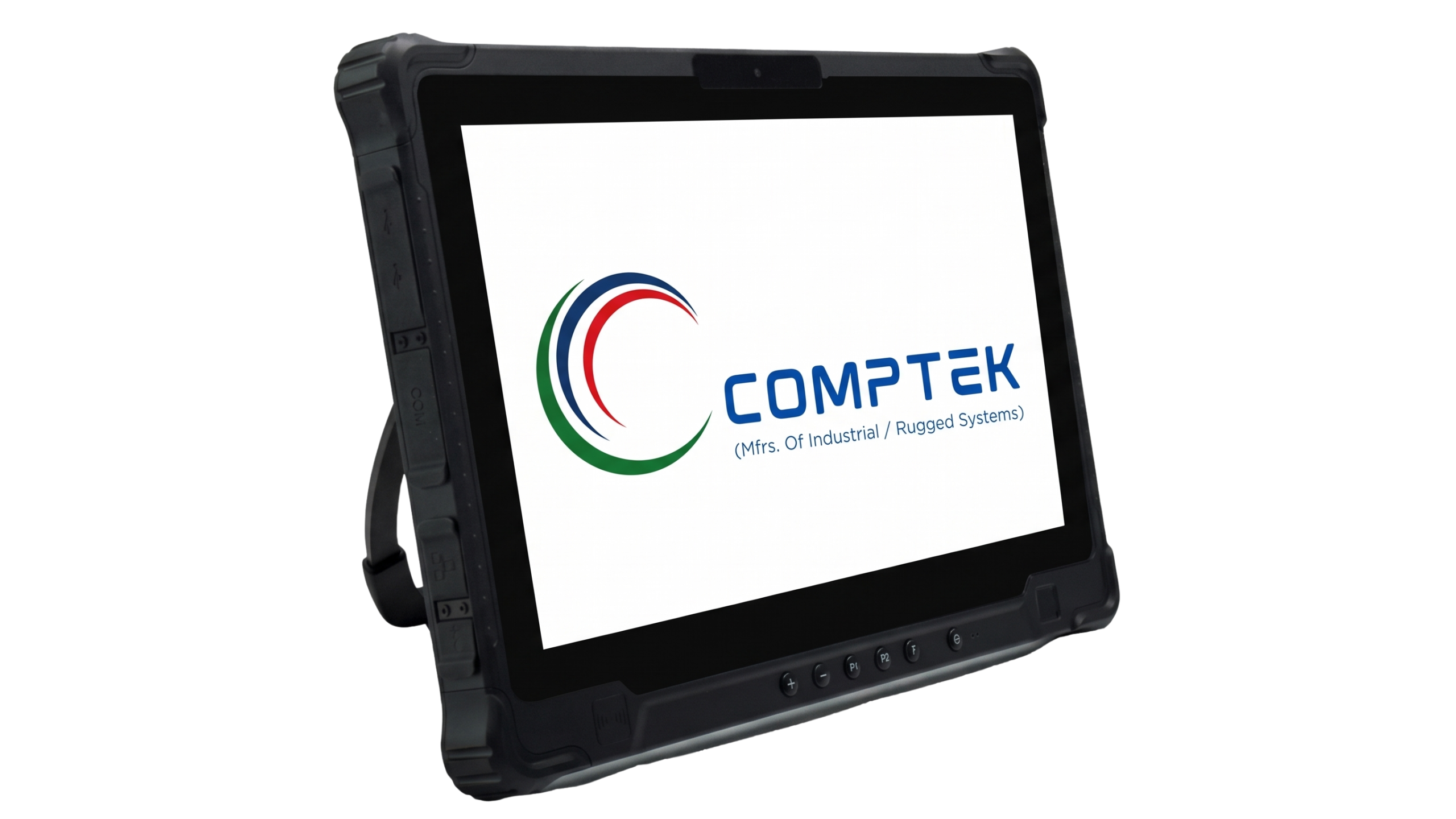

15.6" UP TO i9

15.6 Inch Industrial Panel PC Front View

CC156IPPC ALDER LAKE-S

Display: 15.6" 1366 × 768 (400 cd/m²)
Processor: Core™ i3-12100TE (Opt i5/i7/i9)
RAM / SSD: 8GB DDR5 (Max 64GB) / 128GB
Touch: 5-Wire Resistive / Opt. Glass
LAN: 2 × 2.5 Gigabit Ethernet
I/O: 4x USB 3.2, 2x COM, DP 1.4a
Mounting: Panel Mount / Optional VESA

CC156IPPC

Intel® Core™ i3-12100TE (Opt i5/i7/i9)

Windows 10 / 11 IoT Enterprise Full Specifications →

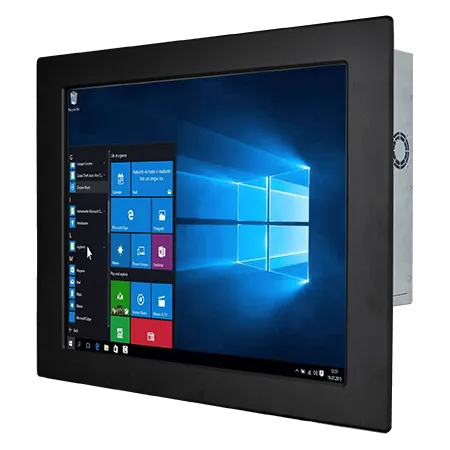

17" FRONT IP65

CC17IPPC 5:4 SXGA

Display: 17.0" 1280 × 1024 (350 cd/m²)
Processor: Core™ i3-12100TE (Opt i5/i7/i9)
RAM / SSD: 8GB DDR5 (Max 64GB) / 128GB
LAN: 2 × 2.5 Gigabit Ethernet
I/O: 4x USB 3.2, 2x COM, DP 1.4a
Protection: Front IP65 Waterproof / TPM 2.0
Mounting: Rugged Panel Mount

CC17IPPC

Intel® Core™ i3-12100TE (Opt i5/i7/i9)

Windows 10 / 11 IoT Enterprise Full Specifications →

19" ACTIVE COOL

CC19IPPC HEAVY DUTY

Display: 19.0" 1280 × 1024 (250 cd/m²)
Processor: Core™ i3-12100TE (Opt i5/i7/i9)
RAM / SSD: 8GB DDR5 (Max 64GB) / 128GB
LAN: 2 × 2.5 Gigabit Ethernet
Ports: 4x USB 3.2, 2x COM, DP 1.4a
Cooling: Industrial Active Cooling
Mounting: Industrial Touch Panel Mount

CC19IPPC

Intel® Core™ i3-12100TE (Opt i5/i7/i9)

Windows 10 / 11 IoT Enterprise Full Specifications →

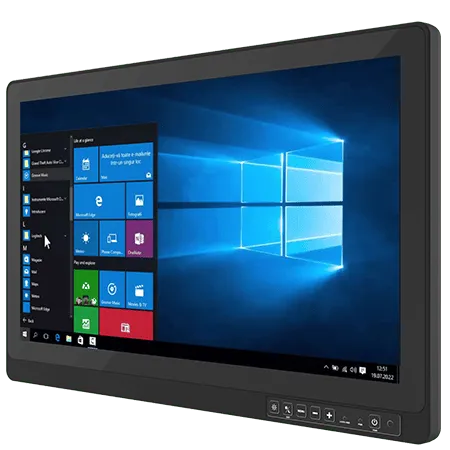

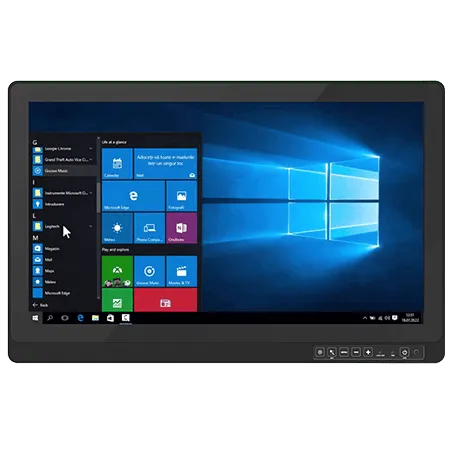

21.5" FULL IP67

CC215IPPC 1000 NITS

Display: 21.5" FHD (1000 cd/m² Sunlight)
Processor: Core™ i5-1235U up to 4.4GHz
RAM / SSD: 8GB RAM (Max 32GB) / 128GB
Optical: Full Optical Bonding / PCAP
Protection: Full IP67 All Around (M12)
Rugged: MIL-STD-810G Die-Cast Enclosure
Design: Fanless Rugged Enclosure

CC215IPPC

Intel® 12th Gen Core™ i5-1235U

Windows 10 / 11 IoT Enterprise Full Specifications →

21.5" CORE i7

CC215IPPC-i7 FRONT IP65

Display: 21.5" 1920 × 1080 (3000:1)
Processor: Core™ i7-12700TE (Opt i3/i5/i9)
RAM / SSD: 8GB DDR5 (Max 64GB) / 128GB
LAN: 2 × 2.5 Gigabit Ethernet
I/O: 4x USB 3.2, 2x COM, DP 1.4a
Protection: Front IP65 Waterproof / TPM 2.0
Mounting: Rugged Panel Mount

CC215IPPC-i7

Intel® Core™ i7-12700TE (Opt i3/i5/i9)

Windows 10 / 11 IoT Enterprise Full Specifications →

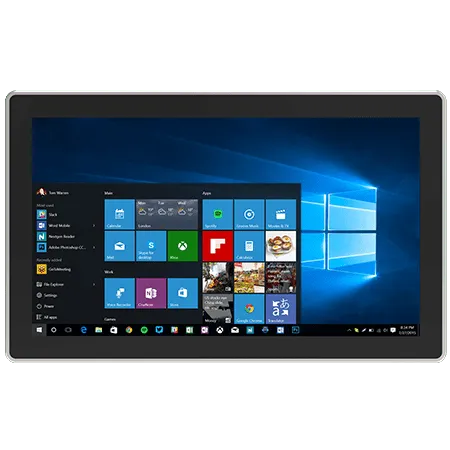

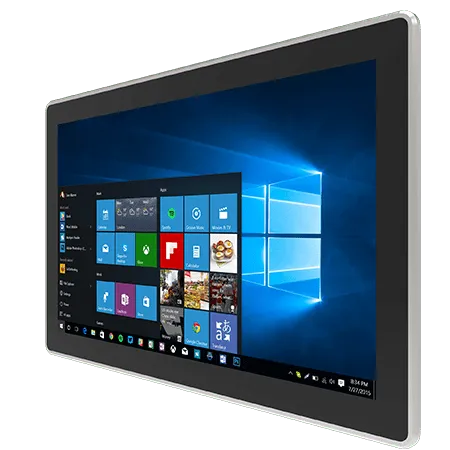

24" 11TH GEN i5

CC24IPPC-i5 FRONT IP65

Display: 24.0" 1920 × 1080 (3000:1)
Processor: Core™ i5-1135G7 up to 4.2GHz
RAM / SSD: 4GB RAM (Max 32GB) / 128GB
LAN: 2 × 2.5 Gigabit Ethernet
Touch: Projected Capacitive Multi-Touch
Audio: Dual Speakers / TPM 2.0
Mounting: Panel Mount

CC24IPPC-i5

Intel® Core™ i5-1135G7 Processor

Windows 10 / 11 IoT Enterprise Full Specifications →

24" 16GB / 1TB

CC24IPPC-i7 NVMe 1TB

Display: 24.0" 1920 × 1080 (3000:1)
Processor: Core™ i7 (Opt i3/i5/i9)
RAM / SSD: 16GB RAM / 1TB NVMe SSD
LAN: 2 × 2.5 Gigabit Ethernet
Touch: Projected Capacitive Multi-Touch
Housing: Slim Aluminum Fanless
Mounting: Rugged Panel Mount

CC24IPPC-i7

Intel® Core™ i7 (16GB RAM / 1TB SSD)

Windows 10 / 11 IoT Enterprise Full Specifications →

Technical Summary & Mounting Matrix

Cross-reference official Windows model codes, resolutions, processors, and mounting standards.

Model No	Screen	Resolution	Processor	Memory & Storage	Protection	Mounting Standard
CC07IPPC	7.0"	WSVGA (500 cd/m²)	Intel Atom® x6413E	8GB RAM / 128GB SSD	IP65 Front / IK08	VESA 100 × 100 mm
CC08IPPC-N5	8.0"	WXGA Capacitive	Intel Celeron® N5100	8GB RAM / 128GB SSD	IP65 Front / IK08	VESA 100 × 100 mm
CC101IPPC-N4	10.1"	1280 × 800 (PoE 25W)	Intel Pentium® N4200	4GB RAM / 128GB SSD	IP65 Front	Wall Mount / VESA
CC104IPPC-N1	10.4"	800 × 600 (600 cd/m²)	Intel Processor N150	8GB DDR5 / 128GB SSD	Fanless Metal	Open Frame / Panel / VESA
CC104IPPC-i5	10.4"	1024 × 768 (500 cd/m²)	12th Gen Core™ i5-1235U	8GB DDR5 / 128GB SSD	Front IP65 Opt.	Panel Mount / Optional VESA
CC121IPPC-N6	12.1"	1024 × 768 (500 cd/m²)	Intel Celeron® N6211	4GB RAM / 128GB SSD	Front IP65 / MIL-STD	VESA / Panel Mount
CC121IPPC-i5	12.1"	1024 × 768 (500 cd/m²)	12th Gen Core™ i5-1235U	8GB DDR5 / 128GB SSD	Front IP65 / MIL-STD	VESA 75 × 75 / Panel Mount
CC133IPPC	13.3"	1920 × 1080 (Clear Bond®)	Intel Atom® x6413E	8GB DDR4 / 128GB SSD	IP65 Front / IK08	VESA 100 / Clamp Mount
CC15IPPC-i5	15.0"	1024 × 768 XGA	12th Gen Core™ i5-1235U	8GB DDR5 / 128GB SSD	Front IP65 / MIL-STD	VESA 100 × 100 / Panel Mount
CC156IPPC	15.6"	1366 × 768 (400 cd/m²)	Core™ i3-12100TE (Opt i5-i9)	8GB DDR5 / 128GB SSD	Metal Sealed Housing	Panel Mount / Optional VESA
CC17IPPC	17.0"	1280 × 1024 (350 cd/m²)	Core™ i3-12100TE (Opt i5-i9)	8GB DDR5 / 128GB SSD	Front IP65 Waterproof	Rugged Panel Mount
CC19IPPC	19.0"	1280 × 1024 (250 cd/m²)	Core™ i3-12100TE (Opt i5-i9)	8GB DDR5 / 128GB SSD	Heavy-Duty Enclosure	Industrial Panel Mount
CC215IPPC	21.5"	1920 × 1080 (1000 cd/m²)	12th Gen Core™ i5-1235U	8GB RAM / 128GB SSD	Full IP67 All Around	VESA 100 × 100 mm (M12)
CC215IPPC-i7	21.5"	1920 × 1080 (3000:1)	Core™ i7-12700TE (Opt i3-i9)	8GB DDR5 / 128GB SSD	Front IP65 Waterproof	Rugged Panel Mount
CC24IPPC-i5	24.0"	1920 × 1080 (3000:1)	Intel Core™ i5-1135G7	4GB RAM / 128GB SSD	Front IP65	Panel Mount
CC24IPPC-i7	24.0"	1920 × 1080 (3000:1)	Intel Core™ i7 Processor	16GB RAM / 1TB NVMe	Front IP65 Waterproof	Rugged Panel Mount
CC27IPPC-i7	27.0"	2560 × 1440 2K QHD	Intel 13th Gen Core i7	16GB RAM / 512GB SSD	Front IP65	VESA 100 × 100 mm
CC32IPPC-i7	32.0"	3840 × 2160 4K UHD	Intel 12th/13th Gen Core i7	16GB RAM / 512GB SSD	Front IP65	VESA 200 × 200 mm
CC42IPPC-i7	42.0"	3840 × 2160 4K UHD	Intel 12th Gen Core i5/i7	16GB RAM / 512GB SSD	Front IP65	VESA 400 × 200 mm
CC45IPPC-i7	45.0"	5120 × 2160 (21:9 5K2K)	Intel 13th Gen Core i7	32GB RAM / 1TB SSD	Front IP65	VESA 400 × 200 mm Heavy Duty
