10.1" Industrial Touch Panel PC (CC101IPPC-N4)
10.1" DISPLAY
1280×800 WXGA (16:10)
INTEL PENTIUM
N4200 (up to 2.50 GHz)
WINDOWS / LINUX
Win 10 IoT & Ubuntu 20.04
IP65 FRONT
Water & Dust Ingress Proof
PCAP MULTI-TOUCH
True-Flat Glass Design
DUAL GBE / POE
2x GbE (IEEE 802.3at)
FANLESS COOLING
Metal Back Enclosure
2 YRS WARRANTY
Industrial Reliability
INDUSTRIAL HMI PANEL PC
CC101IPPC-N4
10.1" WXGA (1280×800) | Intel® Pentium® N4200 Apollo Lake Quad-Core | 4GB RAM + 128GB SSD | Power over Ethernet (PoE) | IP65 Front Protection
Ref. No:
W10IP3S-PCH2-POE
Processor Platform:
Intel® Pentium® N4200 1.10 GHz (up to 2.50 GHz)
Memory & Storage:
4GB DDR3L RAM (Max 8GB) + 128GB SSD
Durability & Ingress:
Front IP65 Water & Dust Proof / Fanless / TPM 2.0
KEY HIGHLIGHTS
- Energy-Efficient Apollo Lake Architecture: Driven by the low-power Intel® Pentium® N4200 Quad-Core processor (up to 2.50 GHz) with silent fanless thermal dissipation and hardware-level TPM 2.0 security.
- 10.1" True-Flat WXGA PCAP Multi-Touch: 1280×800 widescreen TFT LCD offering 350 cd/m² (nits) brightness, 800:1 contrast ratio, and Projected Capacitive (PCAP) multi-touch for smooth intuitive operation.
- Front IP65 Sealed Enclosure: Engineered with a front IP65 waterproof/dustproof bezel, robust metal rear cover, and ultra-compact 35.7 mm chassis profile suitable for automation panels and room control.
- Power over Ethernet (PoE) Integration: Supports IEEE 802.3at (25W) PoE PD functionality, allowing single-cable deployment for both data and system power.
- Versatile Industrial I/O Suite: Built-in 2 × USB 3.2 Gen 2 Type-A, 1 × RS232/422/485 serial port, 2 × Gigabit Ethernet LAN ports, internal speaker, and M.2 expansion slots.
- Smart Facility & HMI Deployment: Ideal for machine operator interfaces, access control, meeting room booking, and digital kiosks, supporting Wall mount and standard VESA mounting patterns.
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Primary Processor:Intel® Pentium® N4200 Quad-Core (1.1 GHz up to 2.5 GHz)
Processor Platform:Apollo Lake Architecture
System RAM:4GB (Default) / 8GB (Optional)
Internal Storage:128GB SSD (Optional: 256GB / 512GB / 1TB)
Hardware Security:Integrated TPM 2.0
OS Support:Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 20.04
Display & Touch System
Display Size:10.1 Inch (Active Area: 216.96 × 135.6 mm)
Native Resolution:1280 × 800 px (WXGA, 16:10)
Panel Brightness:350 cd/m² (Nits)
Contrast Ratio:800:1
Viewing Angle:85°/85°/85°/85° (Horizontal / Vertical)
Touch Technology:Projected Capacitive (PCAP) Multi-Touch
Optional RFID:13.56 MHz HF RFID Reader (Optional)
Audio, Peripherals & Power
Integrated Audio:1 × Built-in Speaker
Power Input:12V DC, 3-Pin Terminal Block
PoE Capability:Follows IEEE 802.3at (PD, 25W) (Optional)
Power Adapter:100-240V AC to 12V 50W DC Adapter included
Network & I/O Interfaces
Ethernet LAN:2 × Intel® Gigabit Ethernet (RJ45)
USB Ports:2 × USB 3.2 Gen 2x1 (Type-A)
Serial COM Port:1 × RS232/422/485 (Default RS232)
Storage Slot:1 × M.2 2242 B-Key Slot (for SATA III SSD)
Wireless Slot:1 × M.2 2230 E-Key Slot (for Wi-Fi / BT)
WLAN & Bluetooth:Wi-Fi & BT Supported (Optional)
Environmental & Mechanical
Chassis Dimensions:264.57 × 173.29 × 35.7 mm
Cutout Dimensions:250.0 × 159.0 mm (Panel Cutout)
Product Weight:Approx. 1.20 kg

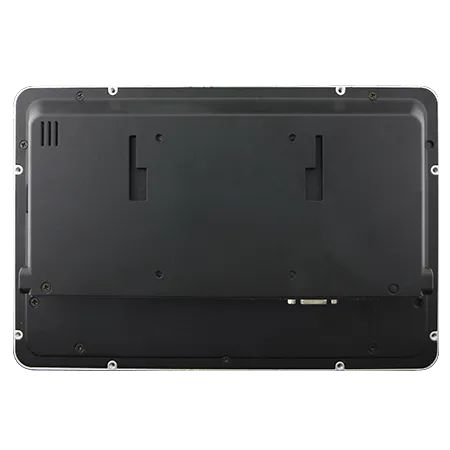

Housing Material:Plastic Front Bezel with Metal Back Cover
Ingress Protection:IP65 Water and Dust Proof (Front)
Cooling Method:Fanless Heat Dissipation Design
Mounting Interface:Wall Mount (Default) & VESA Mount (Optional)
Operating Temperature:0°C to +50°C
Storage Temperature:-10°C to +60°C
Relative Humidity:10% to 90% RH (Non-condensing)
Certifications:CE & FCC Certified
Downloads
Datasheet | 10.1" Industrial Touch Panel PC (CC101IPPC-N4)
