13.3" Industrial Touch Panel PC (CC133IPPC)
13.3" FULL HD
1920×1080 IPS (16:9)
INTEL QUAD-CORE
Atom x6413E / Core / Celeron
WINDOWS / LINUX
Win 10/11 IoT & Debian 12
IP65 FRONT
Rubber Frame Sealing
10-POINT PCAP
Optical Bond AG Glass
DUAL GBE LAN
Realtek GbE / Opt. PoE
FANLESS ALUMINUM
Heavy Powder Coating
2 YRS WARRANTY
Industrial Reliability
INDUSTRIAL TOUCH PANEL PC
CC133IPPC
13.3" Full HD IPS (1920×1080) | Intel® Atom® x6413E Quad-Core | 8GB DDR4 RAM + 128GB SSD | Front IP65 Protected | Fanless Large Aluminum Chassis
Ref. No:
FT133BX6413E
Processor Platform:
Intel® Atom® x6413E Elkhart Lake (Optional: Core / Atom / Celeron)
Memory & Storage:
8GB DDR4 RAM + 128GB SSD
Durability & Ingress:
IP65 Front Protected / IK08 Impact / VESA 100x100 & Clamp Mount
KEY HIGHLIGHTS
- Reliable Industrial Processing: Powered by standard Intel® Atom® x6413E (Elkhart Lake) Quad-Core processor with 8GB DDR4 RAM and 128GB high-speed SSD storage, with support for custom CPU architectures (Intel® Core™, Atom®, and Celeron® series).
- 13.3" Full HD Optically Bonded Display: Crisp 1920×1080 resolution IPS panel featuring 300 cd/m² (nits) brightness, 800:1 contrast ratio, 170°/170° wide viewing angles, and Clear Bond® optical bonding.
- 10-Point Projected Capacitive Multi-Touch: Robust 1.1 mm chemically etched Anti-Glare (AG) cover glass with thermally strengthened IK08 impact resistance and high touch precision (RX 53 / TX 30).
- Dual Gigabit Ethernet & Comprehensive I/O: 2 × Realtek 8111H 10/100/1000 Mbps LAN ports (LAN 1 PoE optional), HDMI, DisplayPort, 2 × USB 3.2, 2 × USB 2.0, and 2 × RS232 COM ports.
- Wireless & Cellular Connectivity: Integrated Intel® AX210 Wi-Fi module with RP-SMA antenna, onboard SD card slot, and SIM card expansion slot for industrial mobile networks.

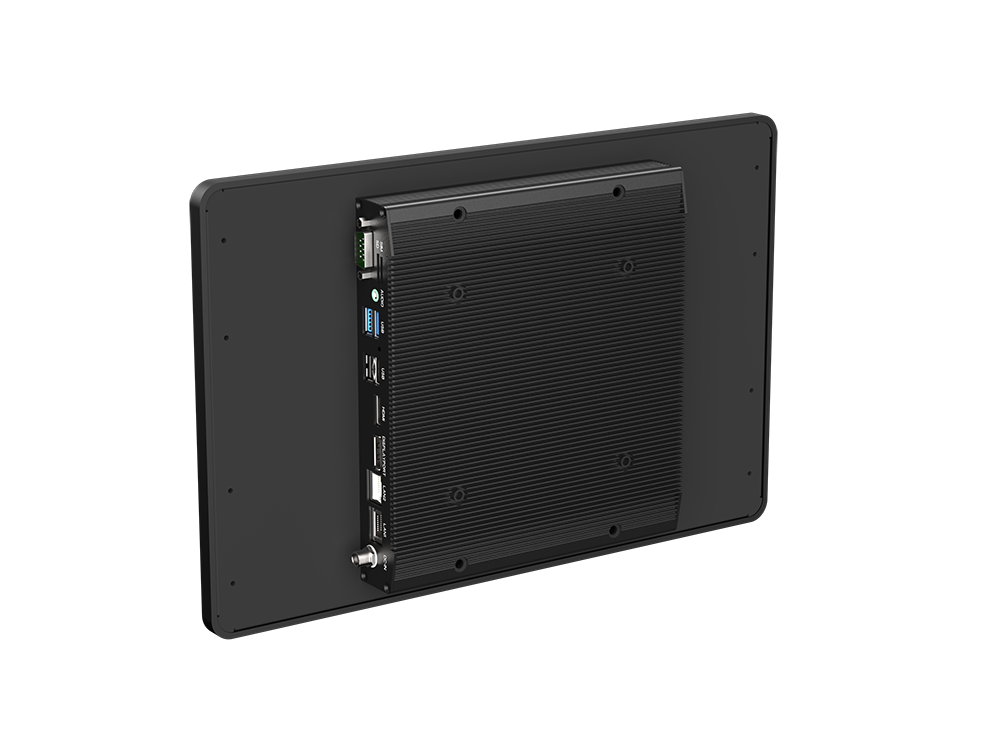

- Heavy-Duty Fanless Aluminum Chassis: Durable powder-coated aluminum construction (RAL9004 Black) with rubber frame sealing, supporting VESA 100×100 mm and 4-clamp panel cutout installation.
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Primary Processor:Intel® Atom® x6413E (Elkhart Lake) Quad-Core
Optional Processors:Intel® Core™ series, Celeron®, Atom® series
System RAM:8GB DDR4 RAM
Internal Storage:128GB SSD
Pre-installed OS:Debian Linux 12
OS Support:Windows 10 / 11, Ubuntu 22.04 LTS, Linux Debian
Display & Touch System
Display Size:13.3 Inch (Active Area: 293.76 × 165.24 mm)
Native Resolution:1920 × 1080 px (FHD, 16:9)
Panel Brightness:300 cd/m² (Nits)
Contrast Ratio:800:1
Viewing Angle:170° Horizontal / 170° Vertical
Display Interface:eDP (Embedded DisplayPort)
Touch Technology:Projected Capacitive (10-Point Multi-Touch)
Glass & Treatment:1.1mm Chemical Etched AG (Anti-Glare) Glass
Optical Bonding:Clear Bond Optical Bonding Technology
Impact Rating:IK08 Impact Resistance
Audio, Sensors & Power
Integrated Audio:2 × 2W Built-in Loudspeakers
Audio CODEC:Realtek ALC897 Audio Audio In/Out
Power Indicator:Green Front/Internal LED
Working Voltage:9V – 36V DC-In
Power Adapter:100-240V AC-DC active switching, 12V DC-Out included
Power Consumption:12.8W Operational / <1W Standby

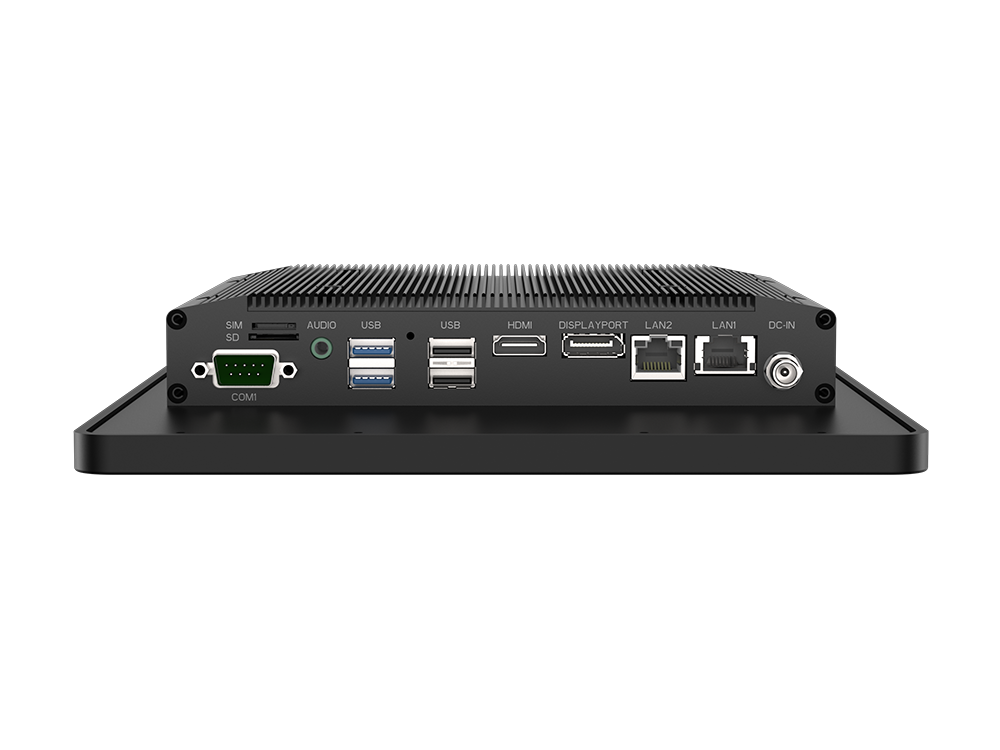

Network & I/O Interfaces
Ethernet LAN:2 × Realtek 8111H Gigabit LAN (10/100/1000 Mbit/s)
PoE Support:PoE Module Optional (on LAN 1)
Wi-Fi & Bluetooth:Intel® AX210 Wi-Fi 6 + Bluetooth (RP-SMA Antenna)
USB Ports:2 × USB 3.2 + 2 × USB 2.0
Video Outputs:1 × HDMI, 1 × DisplayPort (DP)
Serial COM Ports:2 × RS232 Serial Ports (RX/TX/GND)
Expansion Slots:1 × SD Card Slot, 1 × SIM Card Slot
Environmental & Mechanical
Chassis Dimensions:338.2 × 220.7 × 42.3 mm
Panel Cutout:322.0 × 196.0 mm (Max wall thickness: 5.0 mm)
Product Weight:Approx. 3.40 kg
Housing Material:Heavy-duty Aluminum Chassis with Powder Coating
Chassis Color:RAL9004 (Industrial Black)
Ingress Protection:IP65 Waterproof Front / IP40 Back
Cooling Method:Passive Heatsink Fanless Architecture
Mounting Interface:Standard VESA 100 × 100 mm / Clamp Mount (4 Clamps)
Operating Temperature:-10°C to +60°C
Storage Temperature:-20°C to +60°C
Relative Humidity:10% to 90% Non-condensing
Certifications:CE & FCC Certified
