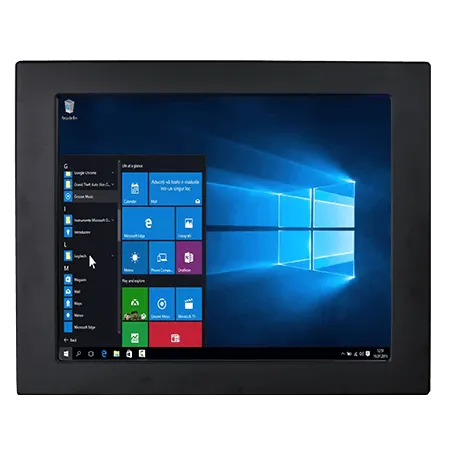

17″ Industrial Touch Panel PC (CC17IPPC)
17″ DISPLAY
1280×1024 SXGA / 350 Nits
ALDER LAKE S
Intel Core i3 / i5 / i7 / i9
WINDOWS / LINUX
Win 11 IoT & Ubuntu 22.04
FRONT IP65
Dust & Water Resistant
TOUCH / GLASS
Resistive / Prot. Glass
DUAL 2.5G LAN
2x Intel 2.5 GbE RJ45
UP TO 64GB RAM
Dual SODIMM DDR5 4800
2 YRS WARRANTY
Industrial Reliability
HIGH-PERFORMANCE FRONT IP65 PANEL PC
CC17IPPC
17″ SXGA (1280×1024) | Intel® Alder Lake S Core™ i9/i7/i5/i3 | DDR5 4800MHz (up to 64GB) | Dual 2.5GbE LAN | Front IP65 Rugged Panel Mount HMI
Ref. No:
R17IAD7T-IPM1
Processor Platform:
Intel® Core™ i3-12100TE (Default) / i5 / i7 / i9 (Optional)
Memory & Storage:
8GB DDR5-4800 (Max 64GB) + 128GB SSD
Durability & Ingress:
Front IP65 Waterproof / Rugged Metal Housing / Fan Design / TPM 2.0
KEY HIGHLIGHTS
- 12th & 14th Gen Intel Core Alder Lake S Computing: High-performance computing powered by Intel® Core™ i3/i5/i7/i9 desktop-grade embedded processors with Intel® R680E chipset for advanced factory automation and machine vision.
- 17″ SXGA Industrial Display: 1280×1024 standard aspect resolution panel with 350 cd/m² (nits) brightness, 1000:1 high contrast ratio, and wide viewing angles (85/85/80/80).
- Touch & Protection Glass Versatility: Available with an industrial Resistive Touch screen or heavy-duty optical protection cover glass without touch functionality.
- High-Speed DDR5 Dual-Channel Architecture: 2 × SO-DIMM slots supporting DDR5 4800MHz memory up to 64GB (32GB per slot) for intensive industrial processing.
- Dual 2.5G LAN & Rich Industrial I/O: Integrated 2 × Intel® 2.5 Gigabit Ethernet (RJ45), 4 × USB 3.2 Gen 2×1 (10Gbps Type-A), 2 × COM serial ports (1 × RS232/422/485 + 1 × RS232), DP 1.4a video output (optional HDMI 2.0b), and Mic-in / Line-out audio.
- Front IP65 Waterproof & Heavy-Duty Mount Integration: Rugged metal enclosure engineered with a Front IP65 sealed bezel for panel cutout mounting (394 × 314 mm) with VESA mount support.
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Primary Processor:Intel® Core™ i3-12100TE (Default, up to 4.00 GHz)
Optional Processors:Intel Core i5-12500TE, i7-12700TE, i9-12900TE, i3/i5/i7/i9 14th Gen
Motherboard Chipset:Intel® R680E Chipset
System RAM:8GB DDR5-4800 (2 × SO-DIMM, max. 64GB)
Internal Storage:128GB SSD (Optional: 256GB / 512GB / 1TB / 2TB / 4TB)
Storage Expansion:2 × SATA III for 2.5″ SSD/HDD up to 2TB (RAID Support)
Hardware Security:Integrated TPM 2.0
OS Support:Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu 22.04
Display & Touch System
Display Size:17.0 Inch Standard (Active Area: 337.92 × 270.336 mm)
Native Resolution:1280 × 1024 px (SXGA)
Panel Brightness:350 cd/m² (Nits)
Contrast Ratio:1000:1
Viewing Angle:85°/85°/80°/80° (Horizontal / Vertical)
Touch Technology:Resistive Touch Screen (Optional)
Protection Surface:Protection Glass Without Touch Function (Optional)
Audio, Controls & Power
Audio Interfaces:1 × Mic-in, 1 × Line-out
Hardware Controls:1 × Power Button, 1 × Reset Button, Brightness Knob
OSD Controls:OSD Control Panel on Rear
Power Input:12V DC Input (Din 4-pin Connector)
Power Adapter:12V 220W (100–240V AC to DC Adapter included)
Network & I/O Interfaces
Ethernet LAN:2 × 2.5 Gigabit Ethernet RJ45 (Intel Controller)
USB Ports:4 × USB 3.2 Gen 2×1 (10Gbps, Type-A)
Serial COM Ports:1 × RS232/422/485 (Default RS232) + 1 × RS232
Video Outputs:1 × DP 1.4a DP++ (Default) + 1 × HDMI 2.0b (Optional)
M.2 Storage Slot:1 × M.2 2280 M-Key Slot (for NVMe SSD)
M.2 Wireless Slot:1 × M.2 2230 E-Key Slot (for Wi-Fi / BT Module)
Environmental & Mechanical
Chassis Dimensions:440.0 × 360.0 × 90.0 mm
Panel Cutout Size:394.0 × 314.0 mm
Chassis Weight:Approx. 5.90 kg
IP Rating:Front IP65 Dust & Waterproof
Housing Material:Heavy-duty Metal Housing
Cooling Method:Fan Design Thermal Architecture
Mounting Interface:Panel Mount (Default) & VESA Mount (Optional)
Operating Temperature:0°C to +50°C
Storage Temperature:-10°C to +60°C
Relative Humidity:10% to 90% RH (Non-condensing)
Certifications:CE & FCC Certified
Downloads
Datasheet | 17″ Industrial Touch Panel PC (CC17IPPC)
