7" Industrial Touch Panel PC (CC07IPPC)
7.0" DISPLAY
1024×600 WSVGA (16:9)
INTEL QUAD-CORE
Atom x6413E / Celeron / Core
WINDOWS / LINUX
Win 10/11 IoT & Debian
IP65 FRONT
Water & Dust Ingress
10-POINT PCAP
Optical Bond AG Glass
DUAL GBE LAN
Realtek GbE / Opt. PoE
FANLESS COOLING
Aluminum Heatsink Build
2 YRS WARRANTY
Industrial Reliability
INDUSTRIAL TOUCH PANEL PC
CC07IPPC
7.0" Capacitive Touch Display | Intel® Atom® x6413E Quad-Core | 8GB DDR4 RAM + 128GB SSD | IP65 Front Protection | Fanless Industrial Design
Ref. No:
FT07X6413E
Processor Platform:
Intel® Atom® x6413E (Optional: Core / Atom / Celeron series)
Memory & Storage:
8GB DDR4 RAM + 128GB SSD
Durability & Ingress:
IP65 Front Protected / IK08 Impact / VESA 100x100
KEY HIGHLIGHTS
- Reliable Industrial Processing: Powered by standard Intel® Atom® x6413E (Elkhart Lake) Quad-Core processor with 8GB DDR4 RAM and 128GB high-speed SSD storage, with support for custom CPU architectures (Intel® Core™, Atom®, and Celeron® series).
- 7.0" High-Bright Multi-Touch Display: High-precision Projected Capacitive 10-point Multi-Touch screen delivering 500 cd/m² (Nits) brightness with optically bonded chemically etched AG anti-glare glass (IK08 impact resistance).
- IP65 Rated Rugged Front Enclosure: Heavy-duty aluminum powder-coated chassis featuring front IP65 dust and water jet protection with rubber frame sealing for harsh environments.
- Dual Gigabit LAN & Rich I/O Interface: 2 × Realtek 8111H 10/100/1000 Mbps Ethernet ports (PoE support optional), HDMI, DisplayPort, USB 3.2, USB 2.0, and RS232 Serial Port.
- High-Speed Wireless & SIM Expansion: Integrated Intel AX210 Wi-Fi 6 + Bluetooth wireless module, onboard SD card slot, and cellular SIM card expansion interface.
- Flexible Industrial Mounting: Compact small-chassis build with standard VESA 100×100 mm mounting compliance, ideal for factory automation, control rooms, kiosks, and embedded systems.
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Primary Processor:Intel® Atom® x6413E (Elkhart Lake) Quad-Core
Optional Processors:Intel® Core™ series, Celeron® N5100, Atom® series
System RAM:8GB DDR4 RAM
Internal Storage:128GB SSD
Pre-installed OS:Debian Linux 12
OS Support:Windows 10 / 11, Ubuntu 22.04 LTS, Linux Debian
Display & Touch System
Display Size:7.0 Inch (Aspect Ratio 16:9)
Native Resolution:1024 × 600 px (WSVGA)
Brightness:500 cd/m² (Nits) High-Bright
Contrast Ratio:800:1
Viewing Angle:160° Horizontal / 130° Vertical
Touch Technology:Projected Capacitive (10-Point Multi-Touch)
Glass & Treatment:1.1mm Chemical Etched AG (Anti-Glare) Glass
Optical Bonding:Clear Bond Optical Bonding Technology
Impact Rating:IK08 Impact Resistance
Audio, Sensors & Power
Integrated Audio:2 × 2W Built-in Loudspeakers
Audio CODEC:Realtek ALC897 Audio Audio In/Out
Power Indicator:Green Front/Internal LED
Input Voltage:12V DC-In (100-240V AC-DC Switching Adapter included)
Power Consumption:12.3W Operational / <1W Standby

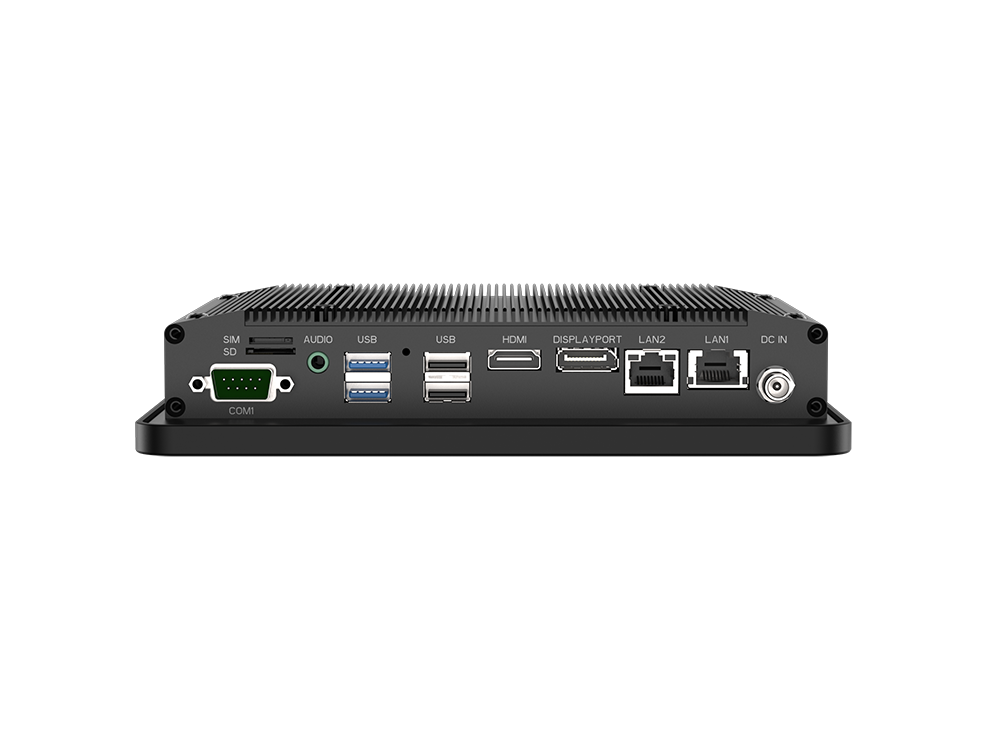

Network & I/O Interfaces
Ethernet LAN:2 × Realtek 8111H Gigabit LAN (10/100/1000 Mbit/s)
PoE Support:PoE Module Optional (on LAN 1)
Wi-Fi & Bluetooth:Intel® AX210 Wi-Fi 6 + Bluetooth (RP-SMA Antenna)
USB Ports:2 × USB 3.2 + 2 × USB 2.0
Video Outputs:1 × HDMI, 1 × DisplayPort (DP)
Serial Port:1 × RS232 Serial Port (RX/TX/GND)
Expansion Slots:1 × SD Card Slot, 1 × SIM Card Slot
Environmental & Mechanical
Chassis Dimensions:195.6 × 137.6 × 43.2 mm
Net Weight:Approx. 1.70 kg
Housing Material:Heavy-duty Aluminum Chassis with Powder Coating
Chassis Color:RAL9004 (Industrial Black)
Ingress Protection:IP65 Waterproof Front / IP40 Back

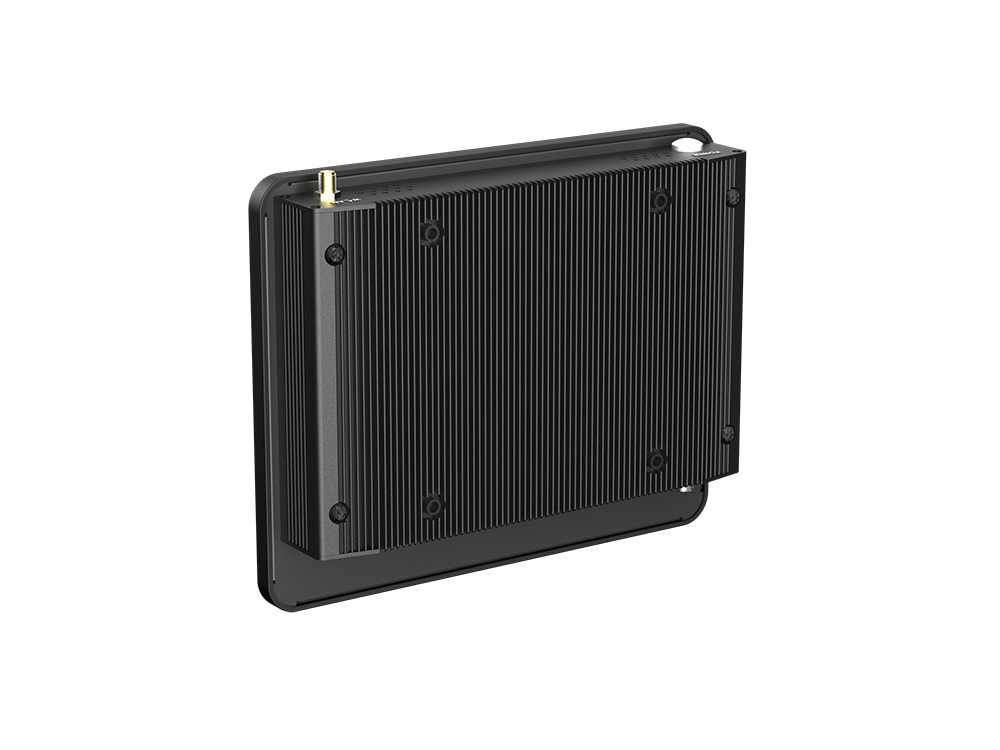

Cooling Method:Passive Heatsink Fanless Architecture
Mounting Interface:Standard VESA 100 × 100 mm
Operating Temperature:-10°C to +60°C
Storage Temperature:-20°C to +60°C
Relative Humidity:10% to 90% Non-condensing
Certifications:CE & FCC Certified
