21.5″ Industrial Touch Panel PC (CC215IPPC)
21.5″ FULL HD
1920×1080 / 1000 Nits
INTEL CORE i5
i5-1235U (up to 4.40 GHz)
WINDOWS / LINUX
Win 11 IoT & Ubuntu 22.04
FULL IP67 SEALED
Water & Dustproof All Around
OPTICAL BONDED
PCAP Multi-Touch / AR Glass
GIGA LAN M12
Waterproof RJ45 Connector
ALUMINUM DIE-CAST
Anti-Corrosion / Fanless
2 YRS WARRANTY
Industrial Reliability
FULL IP67 SUNLIGHT READABLE HMI
CC215IPPC
21.5″ Full HD (1920×1080) | 1000 Nits Sunlight Readable | Intel® Core™ i5-1235U (up to 4.40 GHz) | Optical Bonding PCAP | Full IP67 Waterproof All Around
Ref. No:
W22IAD3S-67B2-P(HB)
Processor Platform:
Intel® Core™ i5-1235U (10 Cores, up to 4.40 GHz)
Memory & Storage:
8GB DDR4/DDR5 (Max 32GB) + 128GB SSD
Durability & Ingress:
Full IP67 All Around / Fanless Die-Cast Aluminum / MIL-STD-810G
KEY HIGHLIGHTS
- 12th Gen Intel Core i5 Performance: Powered by the energy-efficient 12th Gen Intel® Core™ i5-1235U processor (up to 4.40 GHz) delivering high computing speed with passive fanless thermal architecture.
- Ultra-Bright 1000 Nits Optical Bonded Screen: 21.5″ Full HD (1920×1080) high-resolution display with daylight-readable 1000 cd/m² brightness, 1000:1 contrast, and full optical bonding for ultimate clarity and reflection reduction.
- True-Flat P-CAP Multi-Touch or AR Protection Glass: Precision Projected Capacitive multi-touch optically bonded to the panel, or optional true-flat anti-reflective protection glass.
- Complete Full IP67 Enclosure Protection: Entire chassis sealed against extreme water ingress, high-pressure washdowns, chemicals, and fine dust, featuring heavy-duty M12 waterproof screw-in connectors.
- Rugged Aluminum Die-Cast Housing: Engineered with anti-corrosion pre-finish (Surtec 650, Type II, Class 3) and polyester powder coating, built to withstand MIL-STD-810G shock and vibration.
- Wide Voltage & Extreme Temperature Ready: Operates reliably from -10°C to +55°C (optional -40°C with heater) with isolated 9V–36V DC wide range power input and built-in ambient light sensor.
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Primary Processor:Intel® Core™ i5-1235U (10 Cores, up to 4.40 GHz)
Base Clock:3.30 GHz base frequency
System RAM:8GB (Optional: 16GB / 32GB)
Internal Storage:128GB SSD (Optional: 256GB / 512GB / 1TB / 2TB / 4TB)
Hardware Security:Integrated TPM 2.0
OS Support:Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu 22.04
Display & Touch System
Display Size:21.5 Inch (Active Area: 476.64 × 268.11 mm)
Native Resolution:1920 × 1080 px (Full HD)
Panel Brightness:1000 cd/m² (Nits) Sunlight Readable
Contrast Ratio:1000:1
Viewing Angle:89°/89°/89°/89° (Horizontal / Vertical)
Touch Technology:Projected Capacitive Multi-Touch with Optical Bonding
Optional Glass:True Flat Anti-Reflective Optical Bonded Glass
Integrated Sensor:Built-in Ambient Light Sensor
Audio, Controls & Power
LED Indicators:1 × Power LED, 1 × Storage Activity LED
Control Keys:Power, Brightness Up/Down (+/-), Menu (Auto/Manual)
Function Buttons:Day/Night Mode Button, Indicator Dimming Button
Power Input:Isolated 9V – 36V DC (M12 Waterproof Connector)
Optional AC Adapter:100–240V AC to DC 120W Adapter with power cord
Network & Waterproof I/O
Ethernet LAN:1 × Waterproof Giga LAN RJ45 (Intel Controller)
USB Ports:1 × M12 Waterproof Connector for 2 × USB 2.0
Serial COM Port:1 × M12 Waterproof Connector for RS232
Power Connector:1 × M12 Waterproof Connector for 9-36V DC
Breather Element:Integrated Air Vent Valve
Wireless Expansion:Wi-Fi & Bluetooth Supported (Optional)
Included Cables:M12-to-Open-Wire Power, USB, COM, LAN, Converters
Environmental & Mechanical
Chassis Dimensions:529.6 × 342.8 × 58.0 mm
Chassis Weight:Approx. 8.67 kg
Housing Material:Aluminum Die-Casting Enclosure
Coating Treatment:Surtec 650, Type II, Class 3 & Polyester Powder
Ingress Protection:Full IP67 Dust and Waterproof (All-Around Sealed)
Cooling Method:100% Fanless Thermal Conduction Architecture

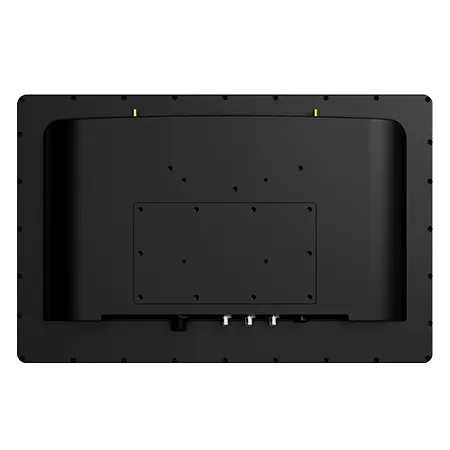

Mounting Interface:VESA Mount 100 × 100 mm (M6 Screws)
Vibration Testing:MIL-STD-810G Method 514.6 Procedure I
Shock Acceleration:MIL-STD-810G Method 516.6 Procedure I
Operating Temperature:-10°C to +55°C (Optional -40°C with heater)
Storage Temperature:-30°C to +70°C
Relative Humidity:10% to 90% RH (Non-condensing)
Certifications:CE & FCC Certified
