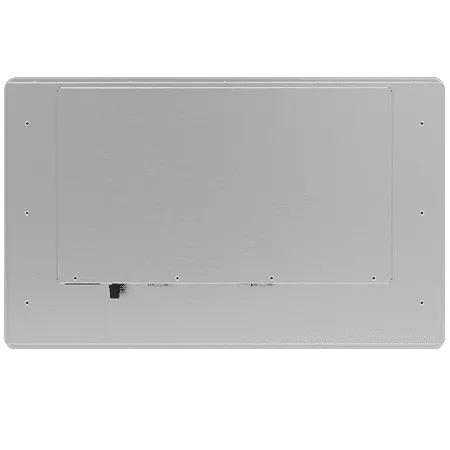

24″ Industrial Touch Panel PC (CC24IPPC-i7)
24″ DISPLAY
1920×1080 FHD / 250 Nits
INTEL CORE i7
High-Performance Computing
WINDOWS / LINUX
Win 11 IoT & Ubuntu 22.04
FRONT IP65
Dust & Water Resistant
PCAP TOUCH
Multi-Touch Screen
DUAL 2.5G LAN
2x Intel 2.5 GbE RJ45
16GB / 1TB SSD
Standard Pro Setup
2 YRS WARRANTY
Industrial Reliability
HIGH-PERFORMANCE FRONT IP65 PANEL PC
CC24IPPC-i7
24″ Full HD (1920×1080) | Intel® Core™ i7 Processor | 16GB High-Speed RAM | 1TB NVMe SSD | Front IP65 Rugged Panel Mount HMI
Ref. No:
W24IT3S-PPA2
Processor Platform:
Intel® Core™ i7 (Standard) / i3 / i5 / i9 (Optional)
Memory & Storage:
16GB RAM + 1TB High-Speed SSD
Durability & Ingress:
Front IP65 Waterproof / Slim Aluminum Housing / Fanless Design / TPM 2.0
KEY HIGHLIGHTS
- Intel Core i7 Industrial Computing: Robust high-performance processing powered by Intel® Core™ i7 for demanding automation, SCADA systems, room booking management, and interactive human-machine interfaces[cite: 3].
- 24″ Full HD Industrial Display: 1920×1080 resolution panel featuring 250 cd/m² (nits) brightness, a high 3000:1 contrast ratio, and ultra-wide 89°/89°/89°/89° viewing angles[cite: 3].
- Projected Capacitive Multi-Touch (PCAP): Responsive, modern edge-to-edge true flat multi-touch interface providing seamless and intuitive gesture control[cite: 3].
- Enhanced 16GB RAM & 1TB SSD Capacity: Pre-configured with 16GB system memory and a fast 1TB NVMe solid-state drive for smooth data acquisition and high-throughput logging[cite: 3].
- Dual 2.5G LAN & Comprehensive I/O: Outfitted with 2 × Intel® 2.5 Gigabit Ethernet (RJ45), 2 × USB 3.2 Gen 2×1 (Type-A), 2 × COM serial ports (1 × RS232/422/485 + 1 × RS232), optional HDMI 2.0 video output, and integrated dual speakers[cite: 3, 4].
- Front IP65 Sealed Fanless Architecture: Silent fanless thermal design inside a heavy-duty aluminum/metal enclosure with IP65-rated front water and dust protection[cite: 3, 4].
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Primary Processor:Intel® Core™ i7 Processor
Optional Processors:Intel Core i3, Core i5, Core i9 Upgrades
System RAM:16GB (Optional: 4GB / 8GB / 32GB)[cite: 3]
Internal Storage:1TB High-Speed SSD (Optional: 128GB / 256GB / 512GB / 2TB / 4TB)[cite: 3]
Storage Expansion:1 × SATA III for 2.5″ SSD/HDD up to 2TB[cite: 3]
Hardware Security:Integrated TPM 2.0[cite: 3]
OS Support:Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu 22.04[cite: 3]
Display & Touch System
Display Size:24.0 Inch Widescreen (Active Area: 527.04 × 296.46 mm)[cite: 3]
Native Resolution:1920 × 1080 px (Full HD)[cite: 3]
Panel Brightness:250 cd/m² (Nits) (Optional up to 1000 Nits)[cite: 3]
Contrast Ratio:3000:1[cite: 3]
Viewing Angle:89°/89°/89°/89° (Horizontal / Vertical)[cite: 3]
Touch Technology:Projected Capacitive Multi-Touch Screen (PCAP)[cite: 3]
Audio, Controls & Power
Audio Interfaces:2 × Integrated Speakers[cite: 4]
Hardware Controls:1 × Power Button, 1 × Reset Button, Brightness Knob[cite: 4]
Status Indicators:1 × Power LED, 1 × Storage LED[cite: 4]
Power Input:12V DC Input (2.5ø DC Jack)[cite: 4]
Power Adapter:12V 120W (100–240V AC to DC Adapter included)[cite: 4]
Network & I/O Interfaces
Ethernet LAN:2 × 2.5 Gigabit Ethernet RJ45 (Intel Controller)[cite: 3, 4]
USB Ports:2 × USB 3.2 Gen 2×1 (10Gbps, Type-A)[cite: 4]
Serial COM Ports:1 × RS232/422/485 (Default RS232) + 1 × RS232[cite: 4]
Video Outputs:1 × HDMI 2.0 (Optional)[cite: 4]
M.2 Storage Slot:1 × M.2 2280 M-Key Slot (for NVMe SSD)[cite: 4]
M.2 Wireless Slot:1 × M.2 2230 E-Key Slot (for Wi-Fi Module)[cite: 4]
Environmental & Mechanical
Chassis Dimensions:604.0 × 373.0 × 76.0 mm[cite: 3]
Panel Cutout Size:583.0 × 353.0 mm[cite: 3]
Chassis Weight:Approx. 8.90 kg[cite: 3]
IP Rating:Front IP65 Dust & Waterproof[cite: 4]
Housing Material:Slim Aluminum & Metal Housing[cite: 3]
Cooling Method:Fanless Thermal Architecture[cite: 3]
Mounting Interface:Panel Mount (Default) & VESA Mount (Optional)[cite: 3]
Operating Temperature:0°C to +50°C[cite: 4]
Storage Temperature:-10°C to +60°C[cite: 4]
Relative Humidity:10% to 90% RH (Non-condensing)[cite: 4]
Certifications:CE & FCC Certified[cite: 4]
Downloads
Datasheet | 24″ Industrial Touch Panel PC (CC24IPPC-i7)
