MIL-SPEC C4ISR & INDUSTRIAL MISSION-CRITICAL COMPUTING

10.1" Rugged Windows Tablet PC (CC101RTPC-i5)

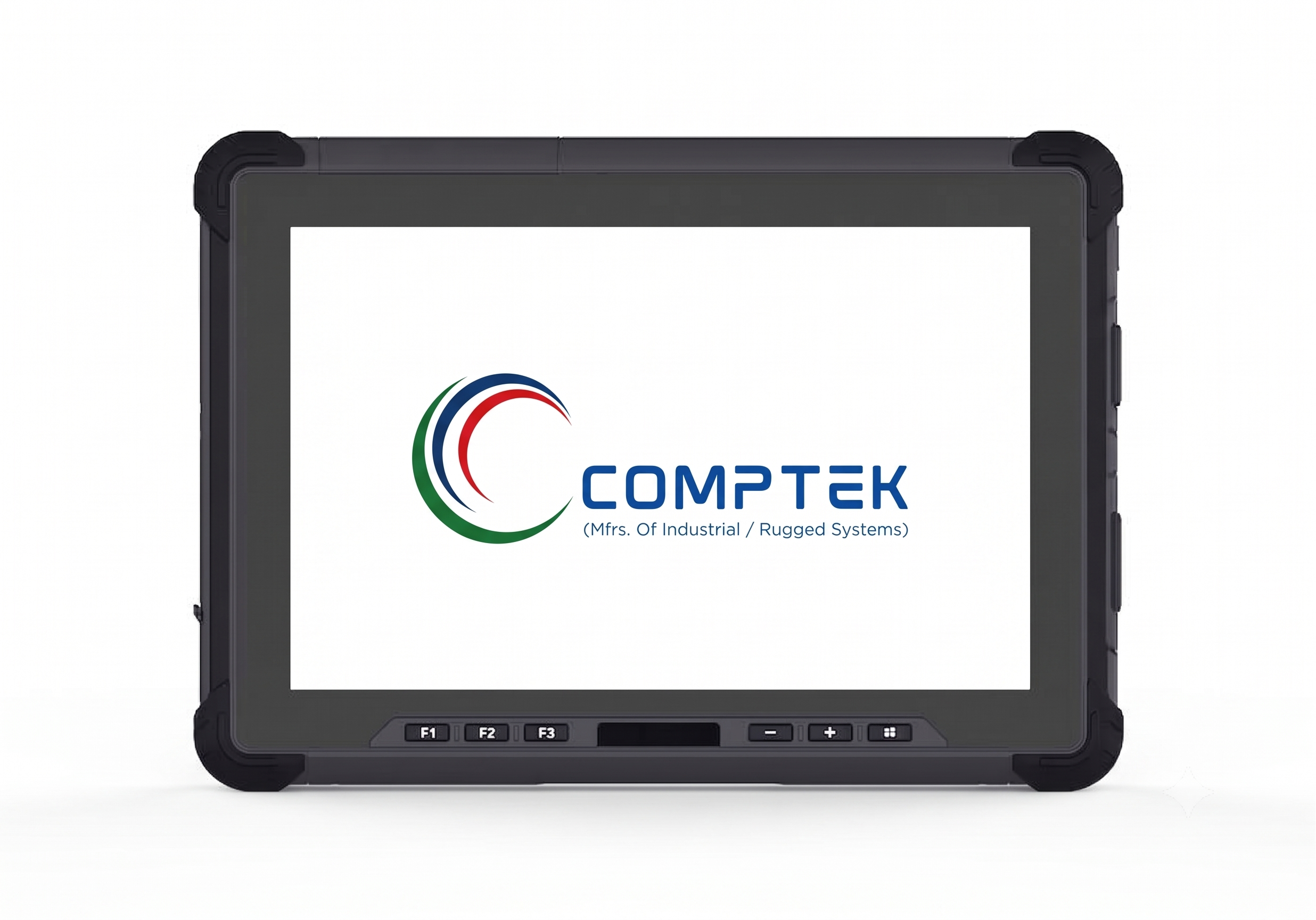

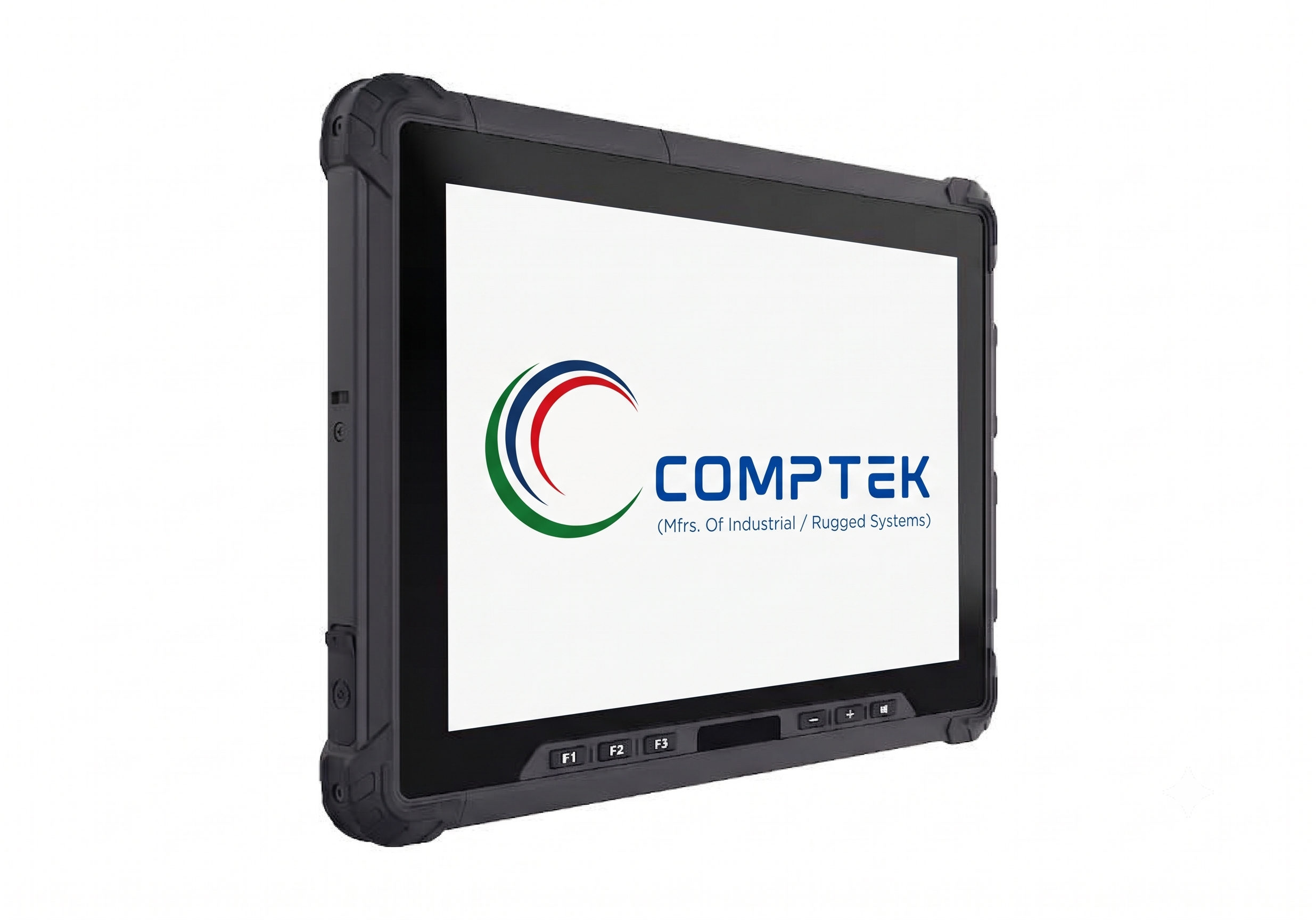

10.1 Inch Rugged Windows Tablet PC Front View

HIGH-BRIGHT TACTICAL FIELD TABLET

CC101RTPC-i5

10.1" FHD (1920×1200) | 800 nits High-Bright | Intel® Core™ i5-1235U (12th Gen) | Dual Hot-Swap Battery Architecture

Processor: Intel® Core™ i5-1235U (12th Gen, up to 4.4 GHz)

Display & Brightness: 10.1" IPS LCD (1920×1200) / 800 nits / Multi-Touch

Memory & Storage: 16GB DDR5-5200 MT/s (Opt. 32GB) / 256GB PCIe SSD

Durability & Ingress: IP65 Waterproof / MIL-STD-810H / 1.2m Drop Proof

KEY HIGHLIGHTS

12th Gen Intel Core i5 Computing Engine: Powered by the Intel® Core™ i5-1235U (10 Cores, 12MB Cache, up to 4.4 GHz) with Intel® Iris® Xe Graphics for rapid field computing and telemetry data processing.
800 nits Ultra-Bright Optical Display: 10.1" Full HD (1920×1200) IPS panel offering daylight visibility with user-programmable touch modes (Finger/Water, Glove, Stylus).
Continuous Dual Battery Architecture: 6000mAh main removable battery combined with an internal 880mAh bridge cell ensures hot-swappable zero-downtime operation in mission-critical environments.
Rugged Magnesium Alloy Chassis: Internal magnesium alloy framework with IP65 dust/water sealing, 1.2-meter drop resistance, and MIL-STD-810H environmental compliance.
Advanced Field Connectivity & Expansion: Features 35-pin Pogo docking, full-size HDMI 2.0, dual USB Type-C, RJ45 Gigabit Ethernet, uBlox NEO-M9N GNSS, 4G LTE, and hardware TPM 2.0.

DOWNLOAD DATASHEET / MANUAL

Standard vs. Optional Configuration Matrix

Custom Build-To-Order Available

System Component	Standard Factory Configuration	Available Optional Upgrades
Processor (CPU)	Intel® Core™ i5-1235U (12th Gen) (12MB Cache, up to 4.4 GHz)	Optional Intel® Core™ i7-1255U Processor Upgrade
System Memory (RAM)	16GB DDR5-5200 MT/s High-Speed RAM	Optional 32GB DDR5-5200 MT/s RAM Upgrade
Storage Drive	256GB PCIe NVMe Solid State Drive	Optional Expandable up to 1TB PCIe SSD
Micro SD Expansion	Integrated Micro SD Card Slot	Supports SDHC / SDXC memory cards up to 1TB
Operating System	Windows 11 64-bit Pre-installed	Optional Windows 10 IoT Enterprise 64-bit
Cellular Connectivity	4G LTE Mobile Broadband Module + Nano SIM Slot	Optional Sub-6GHz 5G Ultra-High-Speed Module
Data Capture & Scan	Integrated Biometric / Security Sensor Array	Optional Integrated 1D/2D Hardware Barcode Scanner
Battery Architecture	6000mAh Main Hot-Swap Battery + 880mAh Bridge Battery	Optional Spare Hot-Swappable 6000mAh Battery Pack
Docking Port	35-Pin Pogo Pin High-Speed Docking Connector	Standard Interface for Vehicle Docks & Desktop Cradles
Device Security	Hardware TPM 2.0 Security Processor + Locker Hole	Standard Factory Fitted Enterprise Defense Hardware

Technical Specifications

Complete Factory Hardware Specs

Display & Touch

Display Type:10.1" IPS LCD Panel

Resolution:1920 × 1200 Full HD (16:10)

Luminance / Brightness:800 nits Sunlight Readable

Touch Panel:10-Point Capacitive Multi-Touch Screen

Touch Profiles:Selectable: Finger/Water, Glove, Stylus Pen

Computing Engine & Storage

Processor (CPU):Intel® Core™ i5-1235U (12th Gen)

Core Specs & Speed:10 Cores (2P+8E), 12MB Cache, up to 4.4 GHz

Optional CPU:Intel® Core™ i7-1255U Processor opt.

Graphics Processor:Intel® Iris® Xe Graphics

System Memory:16GB DDR5-5200 MT/s (Up to 32GB opt.)

Primary Storage:256GB PCIe SSD (Up to 1TB opt.)

Hardware Security:TPM 2.0 & Physical Locker Hole

Operating System:Windows 10 / Windows 11

Wireless & Navigation

Bluetooth:Bluetooth® 5.2

Cellular Network:4G LTE Cellular Module

5G Cellular Option:5G High-Speed Mobile Broadband opt.

GNSS Navigation:uBlox NEO-M9N (GPS, GLONASS, Galileo, BDS)

Data Capture:1D/2D Barcode Scanner Module opt.

Cameras, Audio & Controls

Rear Camera:13.0 MP Auto-Focus with LED Flash

Front Camera:5.0 MP Integrated Front-Facing Camera

Audio Speakers:1 × High-Output Speaker + 1 × Microphone

Sensors:Ambient Light Sensor, Hardware G-Sensor

Indicator LEDs:4 LEDs (Power, Hard Disk, Front CAM, Battery)

Function Buttons:F1 (LED), F2/F3 (Vol -/+), F4/F5 (Bri -/+), Win Key

I/O Ports & Peripherals

USB Type-C:1 × USB 3.2 Type-C, 1 × Type-C for Charging

USB Type-A:2 × USB 3.0 Type-A, 1 × USB 2.0 Type-A

Video Out:1 × Full-Size HDMI Type-A (HDMI 2.0)

Ethernet LAN:1 × RJ45 Gigabit Ethernet Port

Memory Card Slot:1 × Micro SD Slot (SDHC/SDXC up to 1TB)

SIM Card Slot:1 × Nano SIM Card Slot

Docking Port:1 × 35-Pin Pogo Pin Docking Connector

DC Input Jack:1 × Dedicated DC Power Jack

Battery Subsystem & Runtime

Main Battery:11.01V / 6000mAh (66.06Wh) Hot-Swappable

Sub / Bridge Battery:880mAh / 7.4V (Supports 10 min hot-swap)

Battery Life:≥ 10 Hours Runtime (JEITA 2.0 Standard)

Power Adapter:AC 100~240V, 50/60Hz to DC 19V / 3.42A (65W)

Mechanical & Dimensions

Housing Framework:Magnesium Alloy Rugged Inner Frame

Chassis Dimensions:268.5 × 191 × 22.35(29) mm (L×W×H)

Tablet Bare Weight:1200g (Approx. 1.20 kg)

Chassis Color:Industrial Matte Black

Environmental & Reliability

Ingress Protection:IP65 Certified (Dust-Tight & Water-Resistant)

Drop Resistance:1.2 Meter Drop Resistance to Hard Surface

Military Standard:MIL-STD-810H Compliant

Product Certifications:CE, CCC, MIL-STD-810H

Operating Temperature:-20°C ~ 55°C (-13°F to 140°F)

Storage Temperature:-25°C ~ 80°C (-40°F to 158°F)

Relative Humidity:95% Non-Condensing

Factory Warranty:2 Years Comprehensive Limited Warranty

Standard Included Accessories: 1 × 19V / 3.42A (65W) Power Adapter with regional cord.
