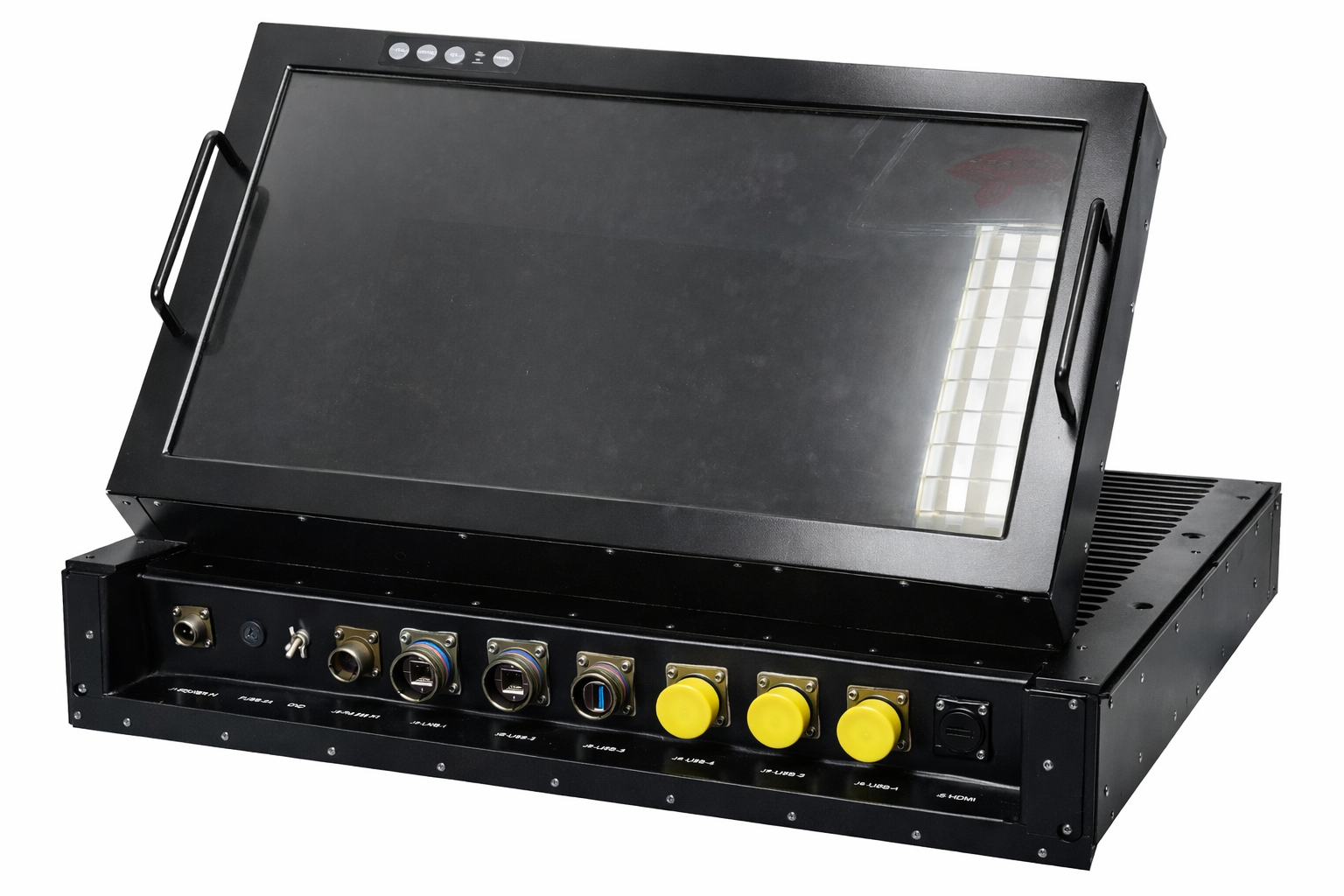

24" Rugged Panel PC (CC24RPPC-i7)
DEFENSE COMMAND SYSTEM
CC24RPPC-i7
Intel® Core™ i7-8700T @2.40GHz | 16GB | 512GB-1TB SSD | Full D38999 Military Circular Connectors
Base Model:
CC24RPPC-i7 (8th Gen / 16GB / 512GB SSD)
Military Connectors:
D38999 Circular Power, Serial, USB 3.0/2.0 & HDMI
KEY HIGHLIGHTS
- Command Display: 24" Full HD (1920×1080) Industrial TFT LCD with EMI Mesh Glass protection and Integrated EMI Shielding Film.
- Processing Architecture: Intel® Core™ i7-8700T @2.40GHz base system; scalable to Optional Intel® Core™ i7 10th to 14th Gen for heavy naval radar and C4ISR operations.
- Military Interconnect Array: Dedicated MIL-DTL-38999 Series III circular lockable receptacles for DC Power, 2x Serial (RS232/RS485), 2x USB 3.0, 2x USB 2.0, and High-Definition HDMI video output.
- Memory & Storage Expansion: Standard 16 GB DDR4 RAM (scalable to 32 GB) and 512 GB SSD (scalable to 1 TB SSD).
- Chassis & Standards: Rugged Aluminum Alloy HE30 Grade housing, IP65 Front Ingress Protection, Fanless cooling, and compliance with MIL-STD-810F/G & MIL-STD-461E/F.
Technical Specifications
Complete Factory Hardware SpecsDisplay
Display Size:24 Inch Rugged TFT LCD
Resolution:1920 × 1080 Full HD
Display Protection:EMI Glass with Integrated EMI Film
Display Type:TFT LCD
Brightness:350 Nits (1000 Nits Sunlight Readable opt.)
Contrast Ratio:5000:1
Visual Angle:178° / 178° Wide Viewing Angle
Aspect Ratio:16:9 Widescreen Command Display
Touch Panel
Touch Screen:10-Point PCAP Multi-Touch
Touch Customization:Projected Capacitive Multi-Touch (PCAP)
Surface Protection:Integrated High-Shielding EMI Film & Mesh
Impact Rating:IK08 / IK09 Vandal Resistant
Touch Controller:Industrial High-Precision USB Controller
Optical Bonding:Clear Bond® Gapless Optical Lamination
PC System
Base Processor:Intel® Core™ i7-8700T @2.40GHz
Optional Processor:Intel® Core™ i5, i7 (11th to 14th Gen)
System Memory (RAM):16 GB DDR4 RAM (Optional 8 GB, 32 GB)
Primary Storage:512 GB SSD (Optional 256 GB, 1 TB SSD)
Graphics:Intel® Integrated Graphics

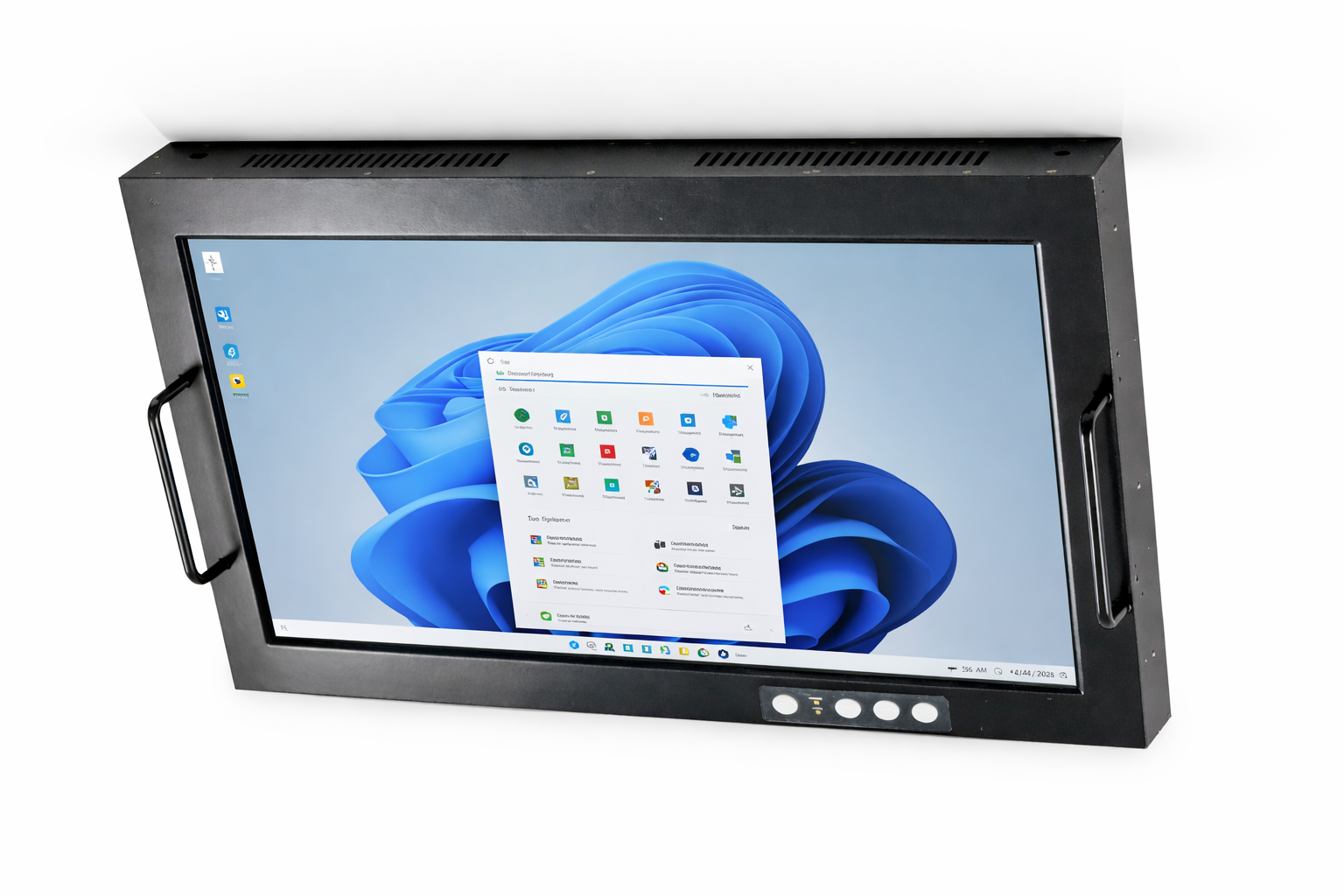

Operating System:Windows 11 Pro
Alternative OS:Windows 10 Pro, IoT, Linux, Ubuntu
Cooling System:Fanless Design Passive Thermal Architecture
Environmental Conditions
Operating Temperature:0°C to +60°C
Storage Temperature:-30°C to +60°C
Humidity:10% to 85% RH (Non-Condensing)
Shock Resistance:IEC 60068 Standard Certified
Vibration Testing:MIL-STD-810F/G Random Vibration

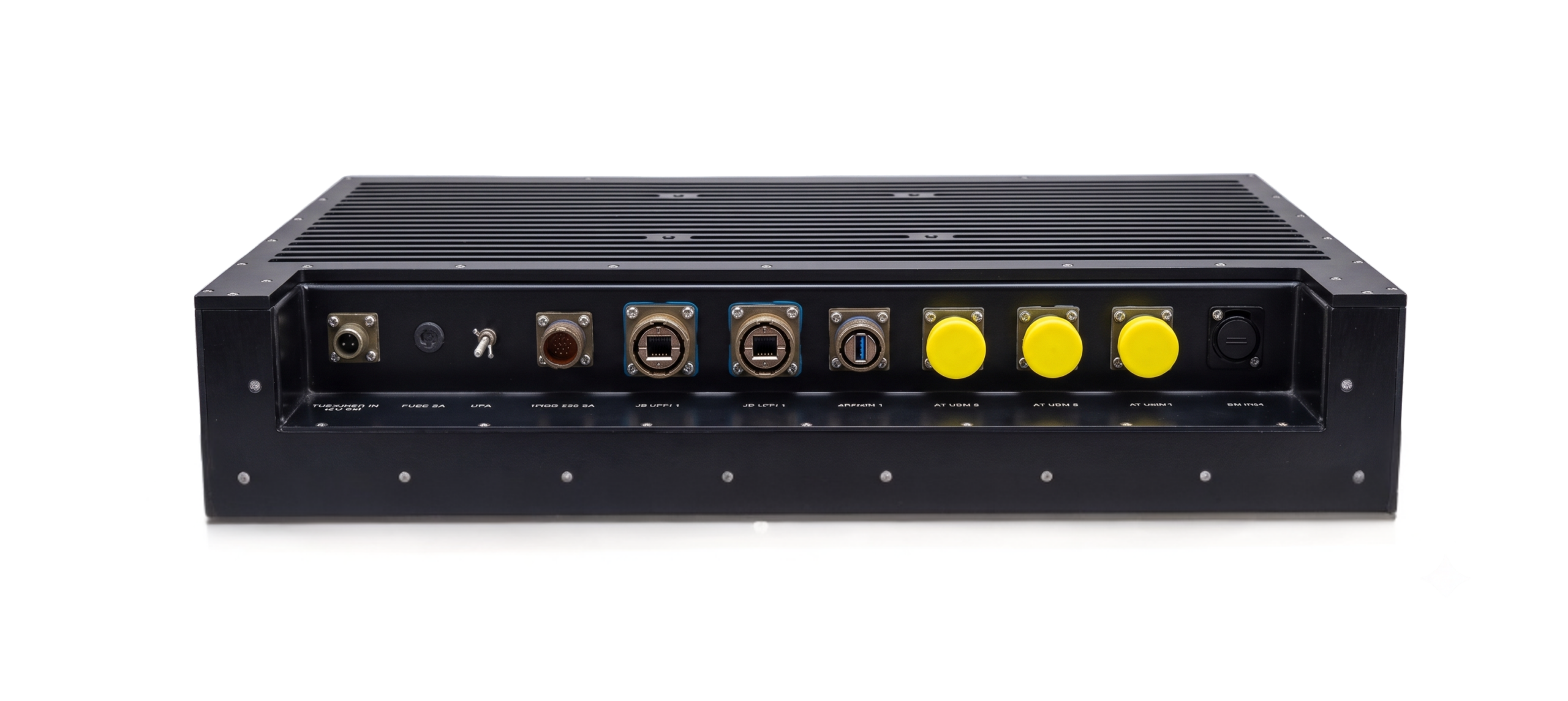

Interface & I/O Ports (D38999 Receptacles)
Power Input Connector:D38999 Series III Circular Military Receptacle
Video Output:1 × HDMI (D38999 Series III Circular)
High-Speed USB Ports:D38999 Circular USB 3.0 × 2 Interfaces
Standard USB Ports:D38999 Circular USB 2.0 × 2 Interfaces
Ethernet (LAN):2 × LAN (MIL-DTL-38999 Circular)
Serial COM Ports:2 × RS232/RS485 (MIL-DTL-38999 Circular)
Expansion Slots:Mini PCIe / M.2 Expansion
Connectivity:4G LTE / 5G, SIM & TF Slot opt.
Integrated Speakers:Built-in 2 × 5W Speakers opt.
Chassis & Mechanical
Enclosure Material:Aluminum Alloy HE30 Gr
Front Protection:IP65 Rated Front Protection
Mounting:Panel Mount / VESA Mount
Dimensions:600 × 380 × 96.4 mm (Approx.)
Weight:11 - 13 Kg (Approx.)
Finish & Color:Hard Anodized Military Finish (RAL9004 Black)
Power
Military Connector:Amphenol MIL-DTL-38999 Circular Jam-Nut
Input Power:Wide DC Input (18-36)V DC (200W)
Power Protection:Over-Voltage, Over-Current & Reverse Polarity
Status Indicator:Front Green LED (Power / HDD Activity)
Rugged Standards & Certifications
Compliance:CE, FCC, RoHS, MIL-STD-461E/F, MIL-STD-810F/G
Shock Resistance:IEC 60068 Standard
Ingress Protection:IP65 Certified Front Face
Included in Delivery:
Mating D38999 Power Cable Assembly, D38999 Serial, USB & Circular HDMI Cables, 100-240V AC to 24V DC Industrial Adapter, Panel Clamps.
