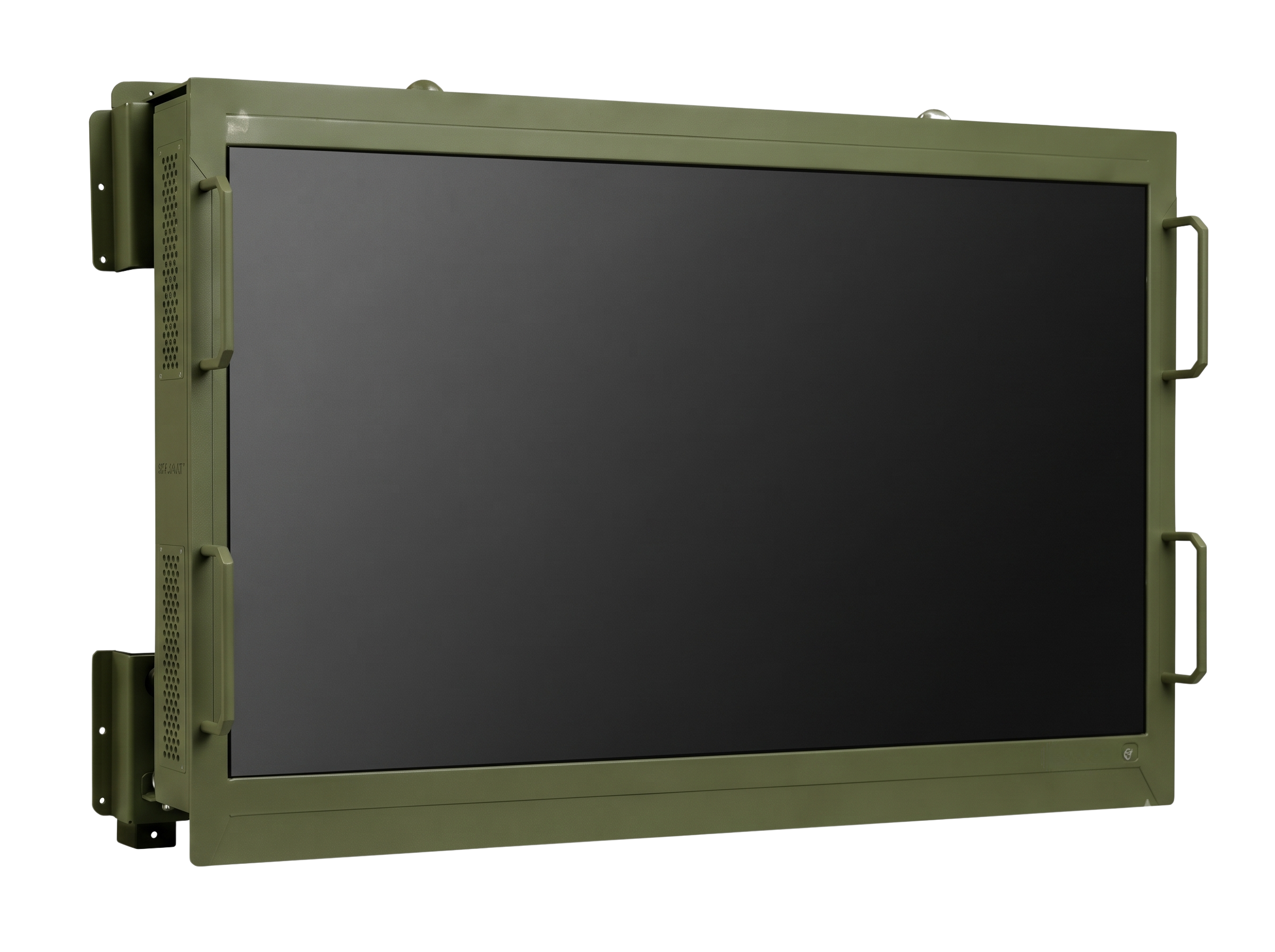

32" Rugged Monitor LCD (CC32RMLCD)
OPTICAL BONDED TACTICAL DISPLAY
CC32RMLCD
32" Full HD | 500 nits| Full D38999 Military Circular Connectors (HDMI, VGA, Power)
Base Model:
CC32RMLCD (32" FHD / 500 nits / D38999 I/O)
Military Connectors:
D38999 Circular HDMI, VGA & Power Receptacles
KEY HIGHLIGHTS
- Tactical Command & Control Display: 32" High-Resolution Industrial TFT LCD panel designed for naval consoles, mobile command shelters, and C4ISR operations.
- Dedicated D38999 Military Interconnects: Factory-integrated Amphenol MIL-DTL-38999 Series III circular lockable receptacles for Video (HDMI), Analog Video (VGA), and DC Power input.
- Resolution & Brightness Scalability: 1920×1080 Full HD native standard, scalable to with sunlight-readable.
- Armored Optical Protection: Gapless optical resin bonding with 4.0 mm chemically toughened AR/AG protective glass resisting shock, vibration, and moisture ingress.
- Chassis & Mechanical Integrity: Heavy-duty CNC milled aluminum enclosure, IP65 front water/dust protection, passive fanless convection cooling, and standard VESA/console mounting.
Technical Specifications
Complete Factory Hardware SpecsDisplay
Screen Diagonal:32" Industrial TFT LCD Panel
Active Area:698.4 × 392.8 mm
Aspect Ratio:16:9 Widescreen
Native Resolution:1920 × 1080 FHD (3840 × 2160 4K UHD opt.)
Brightness:500 nits (1000 nits Sunlight Readable opt.)
Contrast Ratio:3000:1
Viewing Angle:178° (H) / 178° (V) Ultra-Wide (IPS)
Display Colors:16.7M / 1.07B Colors (10-bit)
Backlight Lifetime:50,000 Hours (LED Backlit)
Optical & Front Protection
Protective Glass:4.0 mm Chemically Toughened Armor Glass
Surface Treatment:Anti-Glare (AG), Anti-Reflective (AR) Coating
Optical Bonding:Gapless Optical Resin Bonding Standard
Touch Option:Projected Capacitive (PCAP) Multi-Touch opt.
Impact Rating:IK09 Vandal Resistant Front Face
Environmental Conditions
Operating Temperature:-20°C ~ +60°C
Storage Temperature:-30°C ~ +70°C
Operating Humidity:5% to 95% RH (Non-Condensing)
Shock Resistance:MIL-STD-810G Method 516.6 (40G Peak)
Vibration Testing:MIL-STD-810G Method 514.6 Random
Video & Control Interfaces (D38999)
HDMI Video Connector:D38999 Series III Circular Jam-Nut Receptacle
VGA Video Connector:D38999 Series III Circular Jam-Nut Receptacle
Power Input Connector:D38999 Series III Circular Jam-Nut Receptacle
Optional SDI Video:BNC 3G-SDI / 12G-SDI In & Loop-Out opt.
Remote Control:RS-232 / RJ45 for Remote OSD Command Control
Audio Support:Internal Stereo Amplification + 2x 5W Speakers
Chassis & Mechanical
Enclosure Material:Milled Aviation Aluminum HE30 / Steel Housing
Ingress Protection:IP65 Waterproof / Dustproof Front Bezel
Cooling System:100% Fanless Passive Thermal Convection
Mounting Standard:VESA 200 × 200 mm / Console Panel Mount
Dimensions (Approx.):735 × 440 × 75 mm
Finish & Color:Hard Anodized Military Finish (RAL 9005 Black)
Power & Certifications
Input Voltage (DC):Wide DC Input: 18V ~ 36V DC (28V DC Nominal)
AC Power (Optional):100V ~ 240V AC Internal Power Supply opt.
Power Consumption:55W Typical (Up to 90W with 1000 nits)
EMI / EMC Standards:Compliant with MIL-STD-461G / CE / FCC
Environmental Standards:Compliant with MIL-STD-810G / RoHS
Included Accessories:
Mating D38999 HDMI Cable Assembly, Mating D38999 VGA Cable Assembly, Mating D38999 DC Power Cable, Console Mount Hardware.
Downloads
Datasheet | 32" Rugged Monitor LCD (CC32RMLCD - D38999 Series)
User Manual & Pinout Guide | 32" D38999 Tactical Display Series
