8" Rugged Windows Tablet PC (CC08RWT-N5)
COMPACT INDUSTRIAL FIELD TABLET
CC08RWT-N5
8" WXGA (1280×800) | 700 nits High-Bright | Intel® Celeron® N5100 Quad Core | Removable 5000mAh Battery
Processor:
Intel® Celeron® N5100 Quad Core (Intel® UHD Graphics)
Display & Brightness:
8" IPS TFT LCD (1280×800) / 700 nits / 5-Point Touch
Memory & Storage:
8GB LPDDR4 / 128GB eMMC
Durability & Ingress:
IP65 Certified / MIL-STD-810H / 1.22m Drop Proof
KEY HIGHLIGHTS
- Energy-Efficient Intel Quad-Core Architecture: Driven by the Intel® Celeron® N5100 Quad Core processor with integrated Intel® UHD Graphics and 8GB LPDDR4 RAM for lightweight, reliable fieldwork.
- 700 nits Sunlight-Readable IPS Screen: 8-inch 1280×800 (16:10) high-luminance display with 5-point projected capacitive touch designed for seamless outdoor visibility.
- Long-Running Removable Power: High-capacity 7.6V / 5000mAh removable battery pack providing up to 7 hours of continuous video and mobile fieldwork.
- Versatile I/O & Docking Options: Integrated USB 3.0 Type-A, USB Type-C, Mini HDMI 1.4a (Type C), 12-pin POGO docking connector, SIM card slot, and TF slot expandable up to 128GB.
- Rugged Defense Compliance: IP65 sealed chassis resisting dust and water ingress, 1.22m drop resistance, MIL-STD-810H, CE, FCC, UKCA certified, with dual-band Wi-Fi (ac), Bluetooth 5.0, 4G WWAN, GPS/GLONASS, TPM 2.0, and NFC.
Technical Specifications
Complete Factory Hardware SpecsDisplay & Touch
Display Type:8" IPS TFT LCD
Resolution:1280 × 800 WXGA
Aspect Ratio:16:10
Brightness:700 nits Sunlight Readable
Touch Panel:5 Points Projected Capacitive Touch
Computing Engine & Storage
Processor (CPU):Intel® Celeron® N5100 Quad Core
Graphics (GPU):Intel® UHD Graphics
Memory:LPDDR4 8 GB
Storage:128 GB eMMC
Operating System:Windows 10
Security:Integrated Hardware TPM 2.0
Wireless & Navigation
WLAN (Wi-Fi):802.11 a/b/g/n/ac (2.4GHz / 5.8GHz)
WWAN (Cellular):4G WWAN Mobile Broadband
Bluetooth:Bluetooth 5.0
GNSS Navigation:GPS, GLONASS
NFC Module:Integrated NFC Module
Barcode Module:Barcode Scanner Module (Optional)
Cameras, Audio & Controls
Front Camera:5.0 MP Front Camera
Rear Camera:8.0 MP Rear Camera
Speakers:2 × 0.8W Audio Speakers
Sensor:Hardware G-sensor
Physical Buttons:Power On/Off, Vol +, Vol -, Home, Custom Key
I/O Ports & Peripherals
USB Ports:1 × USB 3.0 Type A, 1 × USB Type C
Video Out:1 × HDMI 1.4a Type C
Audio Jack:1 × 3.5mm Standard Earphone Jack
Storage Expansion:1 × TF Slot (Max 128GB) (SDHC/SDXC)
SIM Card Slot:1 × SIM Slot
Docking Port:1 × 12-Pin POGO Pin
Battery & Power Architecture

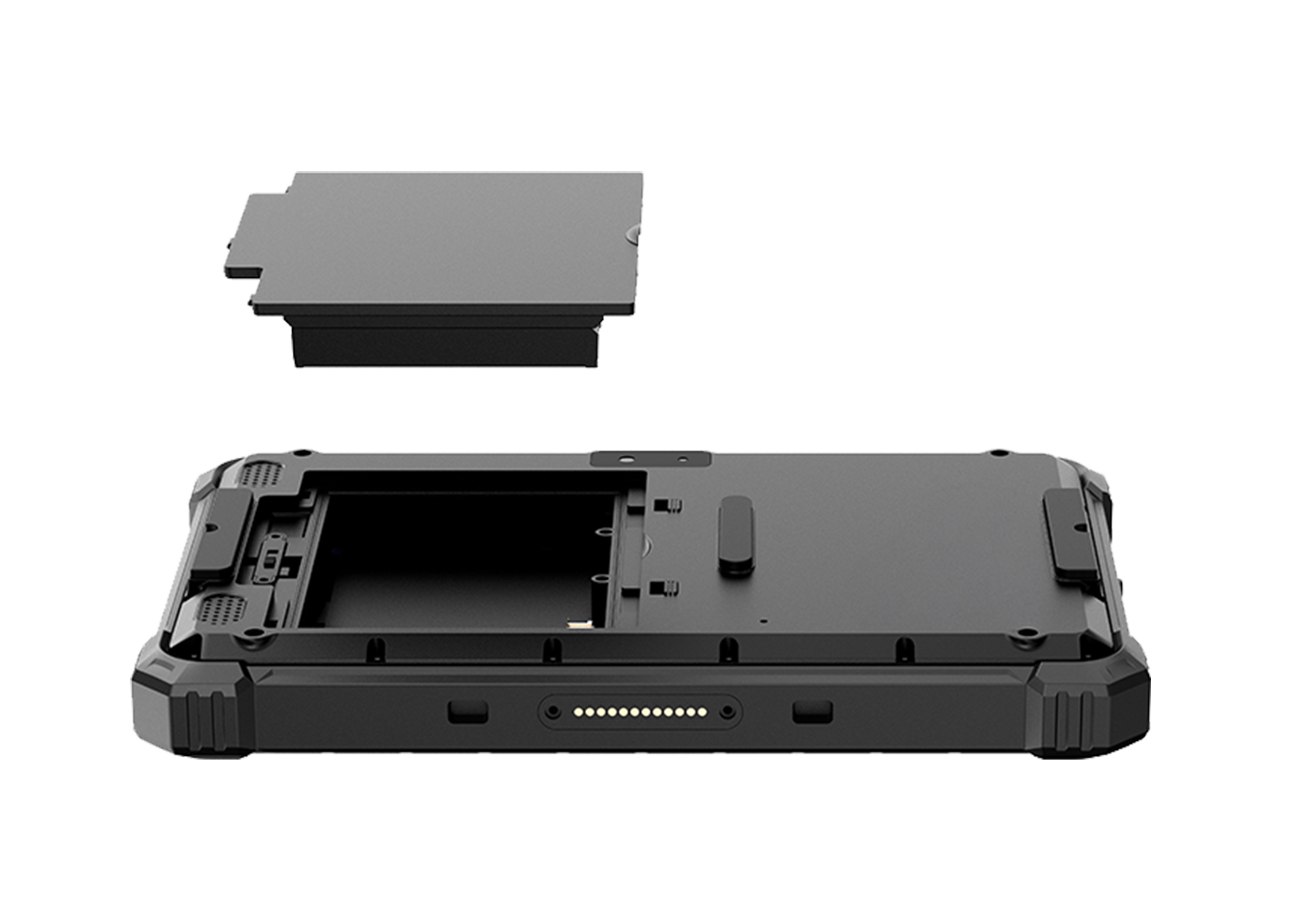

Battery Type:Removable Battery Pack
Battery Capacity:5000 mAh / 7.6 V
Using Time:7 hrs (50% Vol, 50% Bri, 1080 HD Video default)
Power Adapter:19V / 3.42 A or 12V / 4A Power Adapter
Physical & Packaging Specs
Dimensions (W×H×D):236.7 × 155.7 × 20 mm
Product Weight:910 g (Ultra-Portable Design)
Chassis Color:Black Industrial Finish
Packaging Box Size:323 × 173 × 62 mm
Packaging Box Weight:1580 g (Approx. 1.58 kg)
Environmental & Reliability
IP Ingress Rating:IP65 Certified (Dust-Tight & Water-Resistant)
Drop Test:1.22 Meter Drop Resistance
Certifications:CE, FCC, UKCA, MIL-STD-810H Compliant
Operating Temperature:-20°C ~ 60°C
Storage Temperature:-30°C ~ 70°C
Relative Humidity:95% (Non-Condensing)
Warranty:2 Years Comprehensive Limited Warranty
Standard Included Accessories:
1 × Hand Strap, 1 × Power Cable with Power Adapter.
