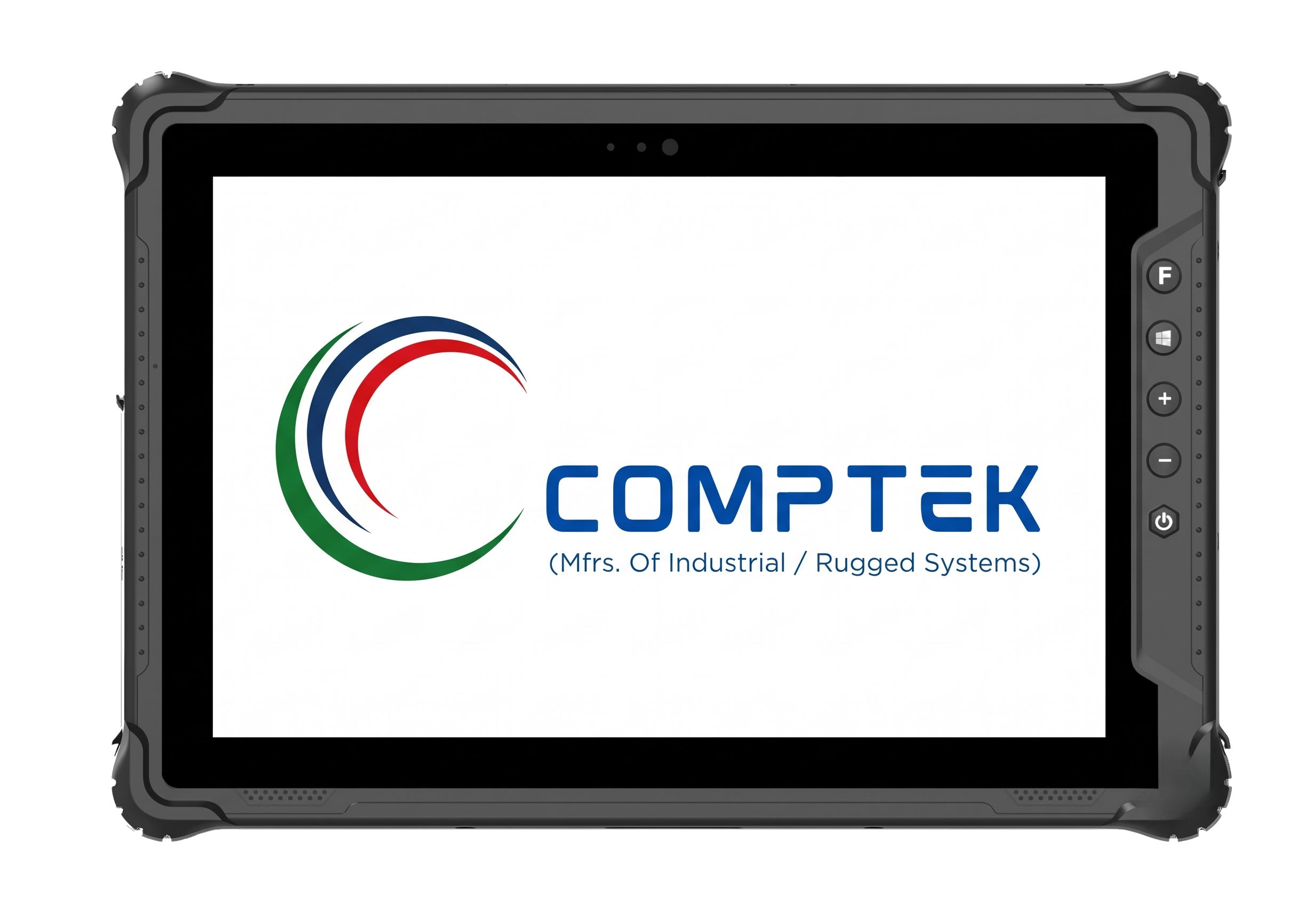

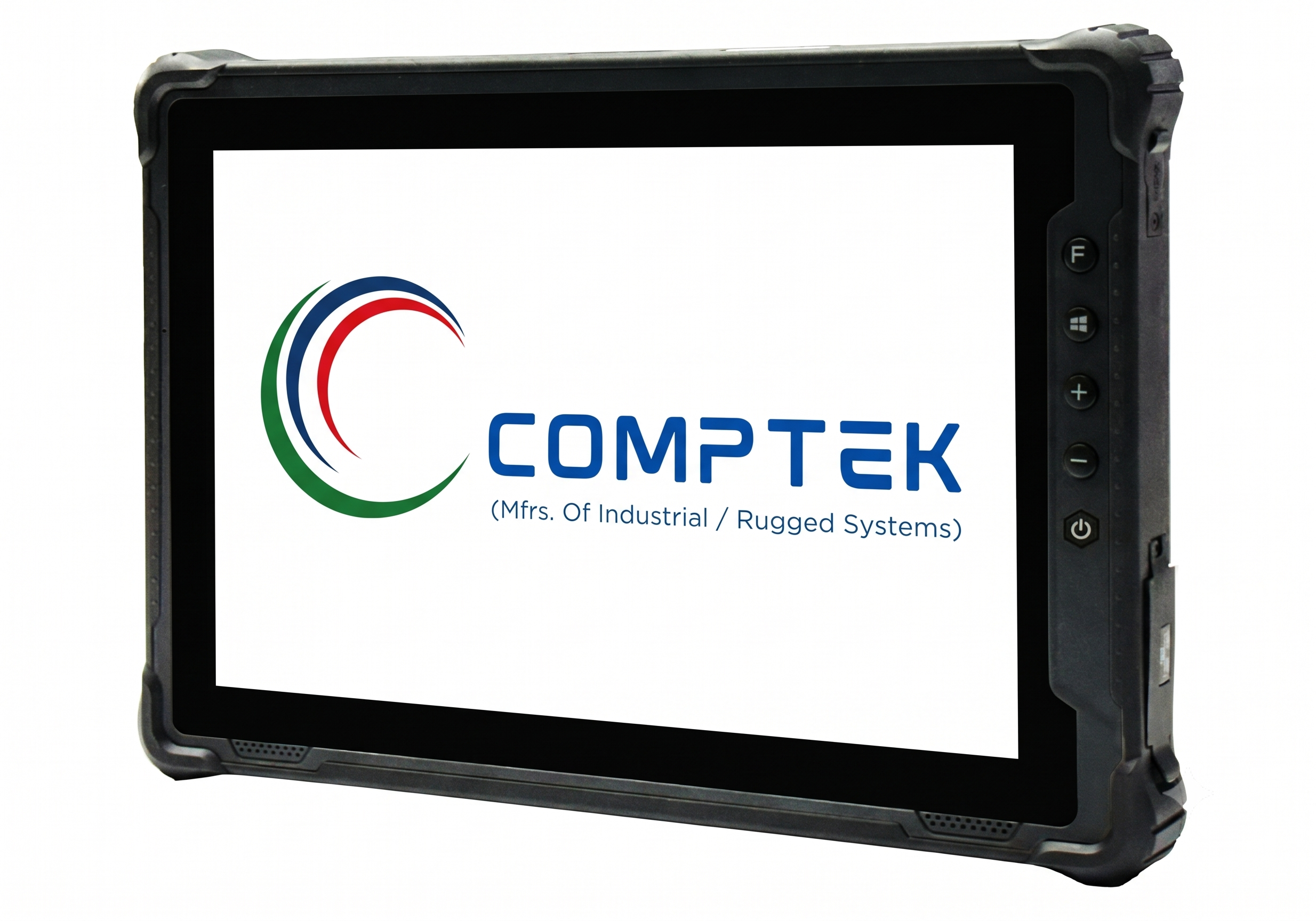

10.1" Rugged Windows Tablet PC (CC101RWT-N1)
ULTRA-BRIGHT FIELD TABLET
CC101RWT-N1
10.1" WUXGA (1920×1200) | 1000 nits Sunlight Readable | Intel® N100 Processor | 8GB LPDDR5 | Removable 5000mAh Battery
Processor:
Intel® N100 Processor (Intel® UHD Graphics)
Display & Brightness:
10.1" IPS LCD (1920×1200) / 1000 nits / 7H Glove Touch
Memory & Storage:
8GB LPDDR5 / 128GB eMMC
Durability & Ingress:
IP65 Waterproof / MIL-STD-810H / 1.22m Drop Proof
KEY HIGHLIGHTS
- Efficient Intel N100 Computing Platform: Powered by the energy-efficient Intel® N100 processor with Intel® UHD Graphics and 8GB LPDDR5 memory for dependable field operations and mobile industrial tasks.
- 1000 nits Sunlight-Readable Optical Display: 10.1" Full HD IPS panel featuring 1920×1200 resolution with 10-point G+G capacitive touch, ≥7H surface hardness, and glove touch support.
- High-Capacity Removable Battery: Powered by a removable polymer lithium-ion 7.6V / 5000mAh battery pack offering up to 5.5 hours of continuous field productivity.
- Comprehensive Industrial I/O: Includes USB 3.0 Type-A, USB 3.0 Type-C (data & charging), Mini HDMI 2.0, 12-pin Pogo docking connector, SIM slot, TF slot, and optional RJ45 LAN (with USB 2.0 or RS-232).
- Rugged Defense Certification: Fully certified IP65 water and dust resistance, 1.22m drop protection, MIL-STD-810H compliance, Wi-Fi 6 (AX101), Bluetooth 5.2, 4G LTE, and multi-constellation GNSS (GPS+Glonass).
Technical Specifications
Complete Factory Hardware SpecsDisplay & Touch
Display Type:10.1 inch IPS LCD
Resolution:1920 × 1200 WUXGA
Brightness:1000 nits Sunlight Readable
Touch Panel:10-Point G+G Capacitive Touch Screen
Surface Hardness:Hardness Above 7H (Scratch-Resistant)
Touch Capability:Supports Glove Touch Operation
Computing Engine & Storage
Processor (CPU):Intel® N100 Processor
Graphics (GPU):Intel® UHD Graphics
Memory:8GB LPDDR5
Storage:128GB eMMC
Operating System:Windows 10 IoT LTSC 2021 / Windows 11
Wireless & Navigation
Wi-Fi Interface:Wi-Fi 6 802.11ax (Intel AX101 2.4G+5.8G)
Bluetooth:Bluetooth 5.2
Cellular (WWAN):4G LTE (LTE-FDD & LTE-TDD Bands)
GNSS Navigation:GPS + Glonass (Optional GPS+Beidou)
NFC Module:Integrated NFC Module
Fingerprint:Integrated Fingerprint Module
Barcode Module:Barcode Scanner Module (Optional)
Cameras, Audio & Controls
Front Camera:5.0 MP Front Camera
Rear Camera:8.0 MP Rear Camera
Speakers:2 × 1W Waterproof Speaker
Sensor:1 × Hardware G-Sensor
Physical Buttons:Power, Vol +, Vol -, P1 (HOME), F Key (Barcode)
I/O Ports & Peripherals
USB Ports:1 × USB 3.0 Type-A, 1 × USB 3.0 Type-C
Video Out:1 × HDMI 2.0 Mini
Audio Jack:1 × φ3.5mm Standard Earphone Jack
Card Slots:1 × SIM Card Slot, 1 × TF Card Slot
DC Input Jack:1 × DC 12V 4A Power Port
Docking Port:1 × 12-PIN Pogo Pin
Optional LAN / COM:RJ45 LAN Port (opt. with USB2.0 / RS-232)
Battery & Power Subsystem
Battery Type:Removable Polymer Lithium-ion Battery
Battery Capacity:7.6V / 5000mAh
Using Time:5.5 hrs (50% Vol, 50% Bri, 1080P HD Video default)
Power Adapter:DC 12V 4A Adapter (Male Plug OD: 5.5mm)
Physical & Packaging Specs
Dimensions (W×H×D):274.9 × 188.7 × 22.2 mm
Tablet Weight:1130g (Approx. 1.13 kg)
Chassis Color:Caesious Industrial Finish
Packaging Box Size:369 × 205 × 60 mm
Packaging Box Weight:1750g (Approx. 1.75 kg)
Environmental & Reliability
IP Ingress Rating:IP65 Certified (Dust-Tight & Water-Resistant)
Drop Resistance:1.22 Meter Drop Resistance
Certifications:CE, FCC, CCC, MIL-STD-810H
Operating Temperature:-20°C to 60°C
Storage Temperature:-30°C to 70°C
Relative Humidity:95% Non-Condensing
Warranty:2 Years Comprehensive Limited Warranty
Standard Included Accessories:
1 × DC 12V 4A Power Adapter, 1 × Hand-Strap.
Downloads
Datasheet | 10.1" Rugged Windows Tablet PC (CC101RWT-N1)
User Manual & Deployment Guide | 10.1" Intel N100 Field Tablet Series
×
