EDGE AI ACCELERATED & MISSION-CRITICAL COMPUTING

Fully Embedded BOX PC (CCABOX-5520)

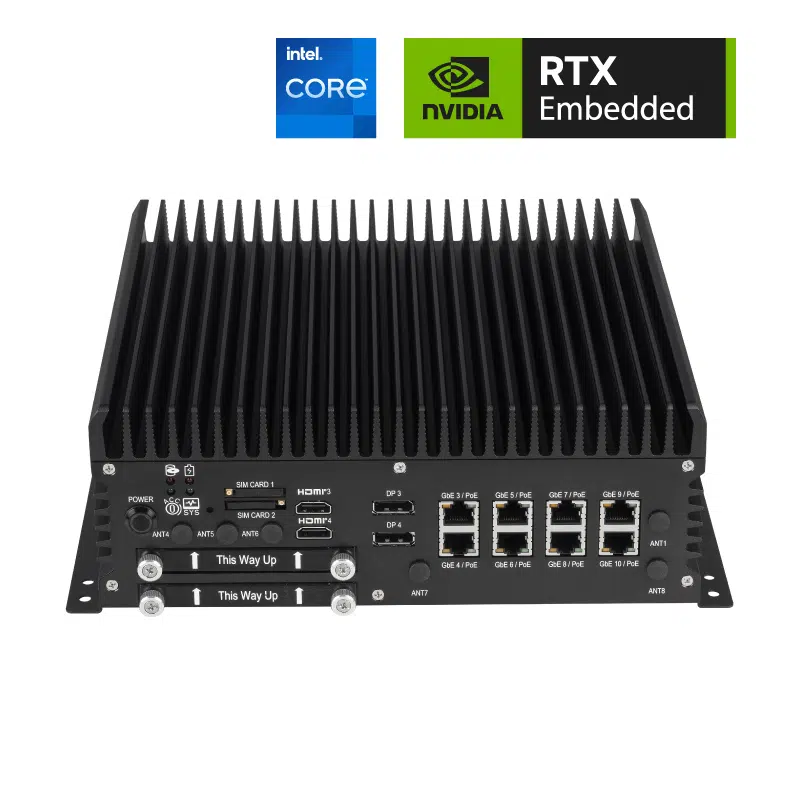

Fully Embedded BOX PC Front View
Thumb 1

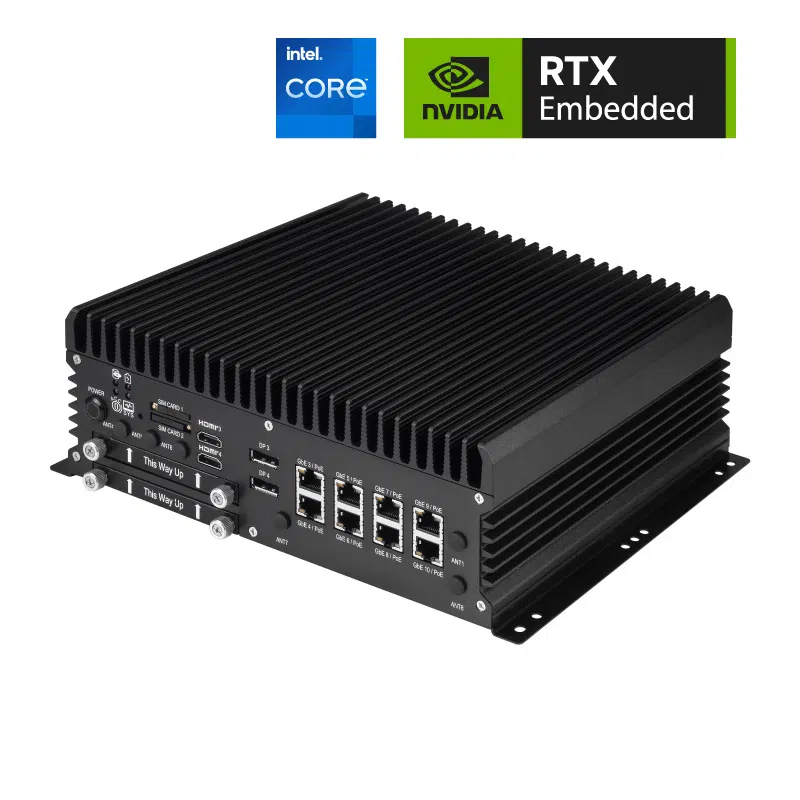

Thumb 2

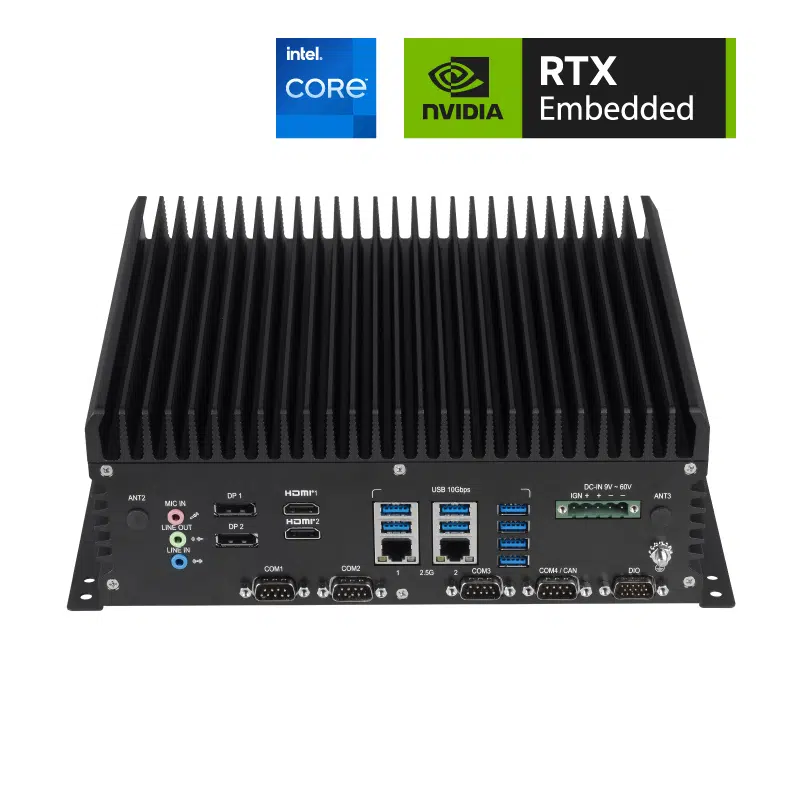

Thumb 3

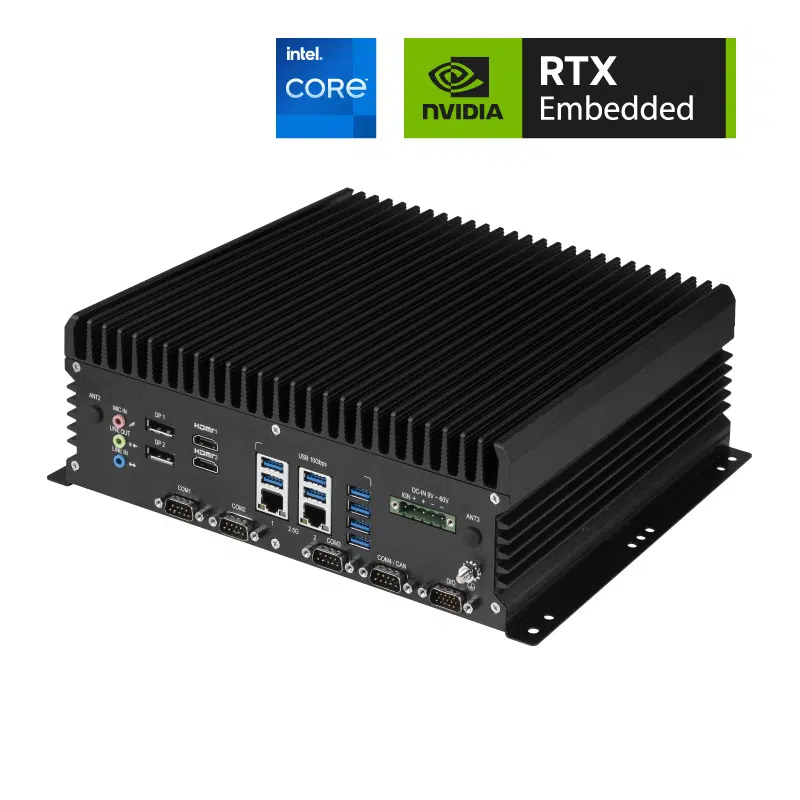

Thumb 4

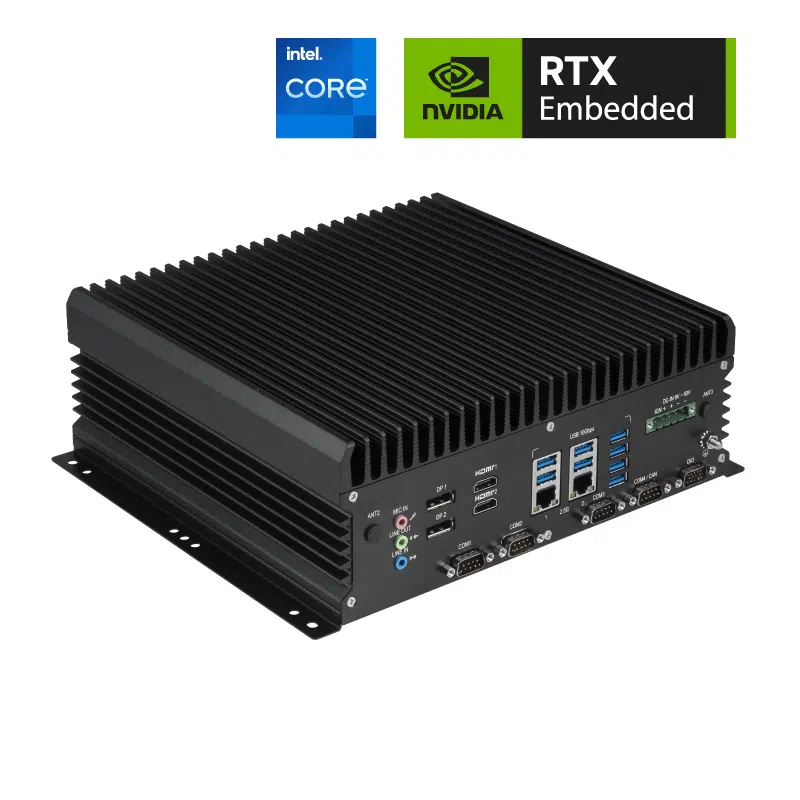

Thumb 5
14TH GEN INTEL CORE EDGE AI EMBEDDED WORKSTATION

CCABOX-5520

Intel® 14th Gen Core™ i9 / i7 / i5 | Up to 96GB DDR5 ECC | 10× LAN (2.5GbE + GbE PoE+) | Discrete NVIDIA RTX / Intel Arc GPU

Processor: Intel® 14th Gen Core™ i9-14900T / i7-14700T / i5-14500T
Memory: Up to 96GB DDR5-5600 (2× SO-DIMM, ECC Support)
Networking & PoE: 2× 2.5GbE (i226) + 8× GbE (i210, Opt. PoE+ / M12)
Power & Protection: 9V~60V DC Input / Smart Ignition / MIL-STD-810H

KEY HIGHLIGHTS

  • Intel 14th Gen Hybrid Compute: Powered strictly by 14th Gen Intel® Core™ desktop processors (i9-14900T 24C/32T, i7-14700T 20C/28T, or i5-14500T 14C/20T) paired with the Intel® R680E chipset.
  • Dedicated Edge AI Graphics: Supports integrated Intel UHD 770 or optional discrete GPU expansion including NVIDIA RTX™ Embedded 5000 Ada (682 TOPS), 3500 Ada (369 TOPS), 2000 Ada (232 TOPS), or Intel® Arc™ A370E.
  • Extreme Multi-LAN Architecture: 10 total Ethernet interfaces featuring 2× 2.5GbE (Intel i226 with AMT support) and 8× Gigabit Ethernet (Intel i210 with optional PoE+ 802.3at 120W budget or M12 X-coded connectors).
  • Multi-Display & Industrial I/O Suite: Quad independent video outputs (2× DP++ up to 8K @ 60Hz + 2× HDMI 2.0b up to 4K @ 60Hz), 8× USB 3.2 Gen 2, 4× isolated RS-232/422/485 COM ports, 8× DI / 4× DO, and 2× ADC channels.
  • Mission-Critical Reliability: Heavy-duty aluminum alloy chassis, -40°C to 70°C wide temperature tolerance, 9V to 60V DC wide power input with vehicle ignition management, and optional internal 10-minute battery backup unit (BBU).
DOWNLOAD DATASHEET / MANUAL

Standard vs. Optional Configuration Matrix

Custom Build-To-Order Available
System Component Standard Factory Configuration Available Optional Upgrades
Processor (14th Gen Only) Intel® Core™ (14th Gen) i5-14500T (14C/20T) Optional Intel® Core™ i7-14700T (20C/28T) / i9-14900T (24C/32T)
Graphics Engine Integrated Intel® UHD Graphics 770 Optional NVIDIA RTX™ 5000 / 3500 / 2000 Ada or Intel® Arc™ A370E
System Memory (RAM) 16GB DDR5-5600 SO-DIMM Optional Up to 96GB DDR5 (ECC Support with ECC DRAM)
Internal Storage Bay 1 × M.2 2280 Key M (NVMe/SATA SSD) Optional 2× M.2 2280 NVMe SSD + 2× 2.5″ Removable SATA Trays (RAID 0/1/5)
Ethernet Networking 2× 2.5GbE (i226) + 8× GbE (i210) RJ-45 Optional PoE+ (25.5W/port, 120W Budget) / M12 X-Coded Connectors
Expansion Slots 2× M.2 Key B (WWAN/SIM) + 1× M.2 Key E + 2× Mini PCIe 5G Cellular Module, Wi-Fi 6E/BT, GNSS, CAN Bus Expansion
Operating System Windows 11 IoT Enterprise LTSC Optional Ubuntu 22.04 LTS
Power Architecture DC 9V ~ 60V (5-pin Terminal Block) + Ignition Management Optional BAT-5200 Battery Kit (10-Min Emergency Backup BBU)
Chassis Construction Heavy-Duty Aluminum Alloy with Wall Mount Brackets IP40 Ingress Protection / Fanless Rugged Architecture

Technical Specifications

Factory Specifications

Processing & Core Engine

Processors (14th Gen Only): Intel® Core™ (14th gen) i9-14900T (24C/32T), i7-14700T (20C/28T), or i5-14500T (14C/20T).
Chipset:Intel® R680E Platform Controller Hub
System Memory:2 × DDR5-5600 SO-DIMM up to 96GB (ECC support)
Hardware Security:TPM 2.0 / dTPM Onboard
Watchdog Timer:Auto reset (custom 1-255 sec/min in BIOS)
Operating System:Windows 11 IoT Enterprise LTSC / Ubuntu 22.04 LTS

Graphics & Video Outputs

Integrated GPU: Processor-integrated Intel® UHD Graphics 770.
Optional Discrete GPU: NVIDIA RTX™ Embedded 5000 Ada (16GB GDDR6, 682 TOPS), 3500 Ada (12GB GDDR6, 369 TOPS), 2000 Ada (8GB GDDR6, 232 TOPS), or Intel® Arc™ A370E (4GB GDDR6, 56 TOPS).
Standard Video Interface: 2 × DisplayPort (DP++ up to 7680 × 4320 @ 60Hz), 2 × HDMI® (up to 3840 × 2160 @ 60Hz HDMI 2.0b).
Discrete GPU Video I/O: Additional 2 × DP++ (up to 7680 × 4320 @ 60Hz) + Additional 2 × HDMI® (up to 3840 × 2160 @ 60Hz).

Networking, Comms & Expansion

Ethernet Ports: 2 × 2.5GbE (Intel I226 via RJ-45, Port 1 supports Intel AMT) + 8 × GbE (Intel I210 via RJ-45, optional PoE+ and M12 X-code).
PoE Capability:PoE supports 25.5W/port (Total 120W budget)
M.2 Expansion:2× M.2 3042/3052 Key B (WWAN/Dual SIM), 1× M.2 2230 Key E
Mini PCIe:2 × Mini PCIe (Full-size slots)
Antenna Mounts:8 × SMA Connector Mounting Holes

Industrial I/O & Storage

USB Ports:8 × USB 3.2 Gen 2 Type-A
Serial COM Ports:4 × RS-232 / 422 / 485
Digital I/O (DIO):8 × DI (DC 5-60V), 4 × DO (DC 5V/100mA)
Analog Input (ADC):2 × ADC (DC 0-60V)
Audio Interfaces:1 × Line-out, 1 × Line-in, 1 × Mic-in
Internal Storage Bays: 1 × M.2 2280 Key M (NVMe/SATA SSD), 2 × M.2 2280 Key M (NVMe SSD), 2 × Removable Trays for 2.5″ SATA SSD (RAID 0/1/5 via Intel VMD).

Power Architecture & Backup

Power Input Range: DC 9V ~ 60V (Nominal 12V/24V/48V via 5-pin terminal block; DC 24V+ required with dGPU/PoE).
Power Protection: OCP, OVP, Surge Protection, Reversed Polarity Protection.
Power Management:Ignition Detection & Smart Power Control
Battery Backup (BBU): Optional BAT-5200 internal battery kit for up to 10 minutes emergency system runtime.

Mechanical, Standards & Environment

Construction:Rugged Aluminum Alloy Enclosure
Mounting:Wall Mounting (Brackets included)
Dimensions:290 × 250 × 98 mm (with brackets)
Net Weight:5.70 kg (12.57 lb)
Ingress Protection:IP40 Rated
Operating Temp:-40°C ~ 70°C (with 0.6 m/s airflow)
Storage Temp:-40°C ~ 80°C / 10% ~ 90% RH (Non-condensing)
Shock & Vibration: MIL-STD-810H (Method 514.8 Cat 4, Method 516.8 20G), IEC 60068-2-64, EN 61373:2010.
Certifications: CE, FCC Class A, UKCA, E-Mark, EN 50155, EN 45545-2 (R25), IEC 62368-1.

Optional Discrete GPU Matrix

Discrete GPU NVIDIA RTX™ Embedded 5000 Ada Generation NVIDIA RTX™ Embedded 3500 Ada Generation NVIDIA RTX™ Embedded 2000 Ada Generation Intel® Arc™ A370E
Graphic Cores 9728 CUDA / 304 Tensor 5120 CUDA / 160 Tensor 3072 CUDA / 96 Tensor 8 Xe-cores / 128 Execution Units
Memory Type/Size GDDR6 16GB GDDR6 12GB GDDR6 8GB GDDR6 4GB
AI TOPS* 682 369 232 56
System Operating Temp. 0°C ~ 60°C 0°C ~ 60°C 0°C ~ 70°C 0°C ~ 70°C

*AI TOPS Precision – FP8 for NVIDIA RTX™ Embedded Ada Generation, INT8 for Intel® Arc™.
