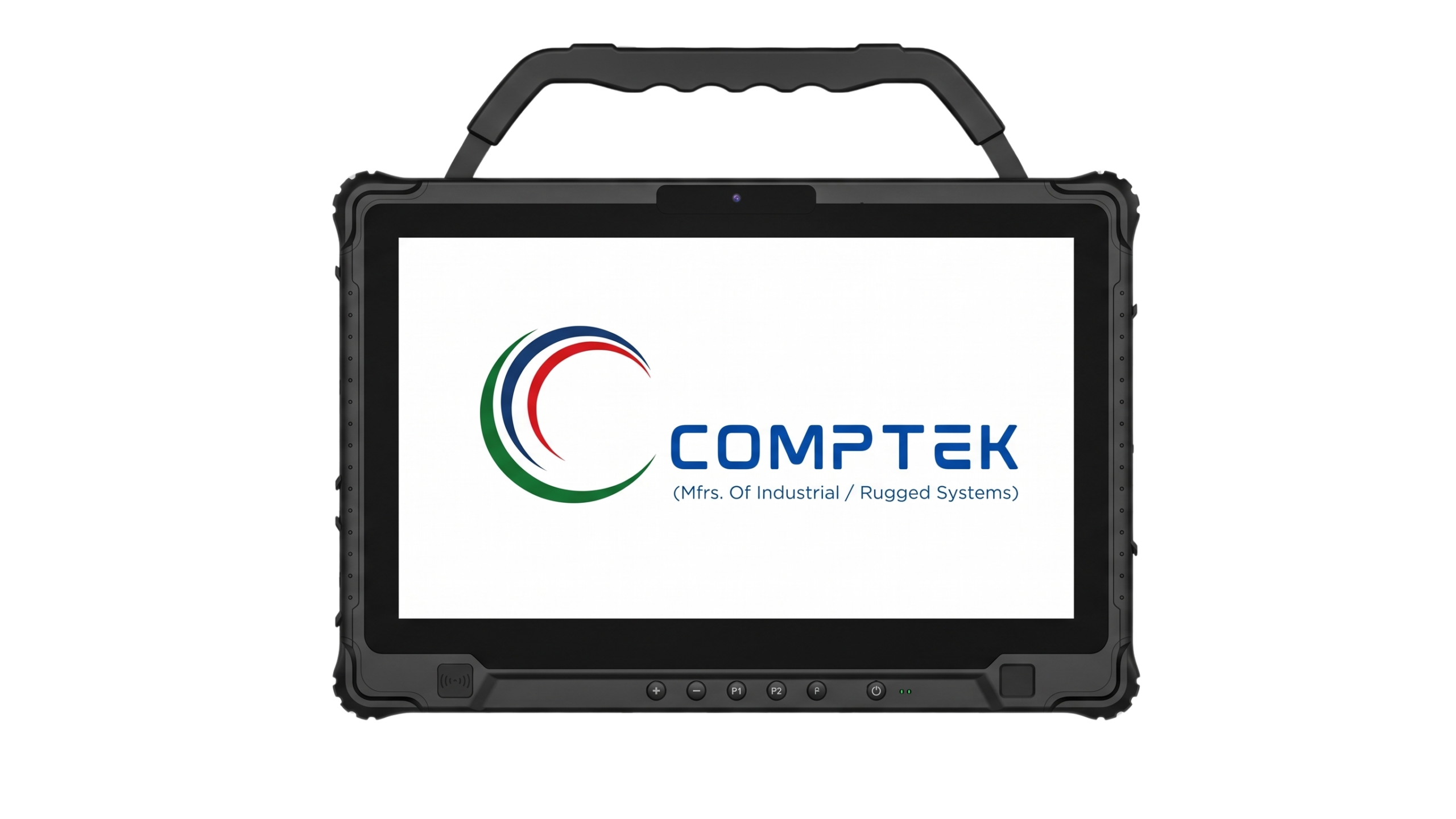

14" Rugged Windows Tablet PC (CC14RWT-U7)
AI-BOOSTED TACTICAL RUGGED TABLET
CC14RWT-U7
14" FHD (1920×1080) | 1000 nits Sunlight Readable | Intel® Core™ Ultra 7 155H | Hot-Swappable Dual Battery
Processor:
Intel® Core™ Ultra 7 155H (up to 4.80 GHz)
Display & Brightness:
14" FHD (1920×1080) / 1000 nits / 7H Glove Touch
Memory & Storage:
16GB DDR5 / 256GB M.2 SSD
Durability & Ingress:
IP65 Waterproof / MIL-STD-810H / 1.22m Drop Proof
KEY HIGHLIGHTS
- Cutting-Edge Intel Core Ultra 7 Platform: Powered by the Intel® Core™ Ultra 7 155H processor (24M Cache, up to 4.80 GHz) with Intel Arc™ graphics delivering high-speed on-device AI and field workload processing.
- 1000 nits Optical Sunlight Display: 14-inch Full HD display with 10-point capacitive glove/wet-hand touch, protected by scratch-resistant ≥7H hardness armor glass.
- Mission-Ready Dual Battery Architecture: Features a built-in 1300mAh battery alongside a hot-swappable 4850mAh high-capacity secondary pack, enabling non-stop 24/7 uninterrupted operation in the field.
- Comprehensive Defense & Field I/O: Factory integrated with dual RJ45 Gigabit Ethernet ports, RS-232 serial COM, Thunderbolt 4 Type-C, Mini HDMI 2.0a, and 12-pin Pogo docking connector.
- Enterprise Defense Security & Telecom: Equipped with hardware TPM 2.0, dual front (5MP) & rear (13MP) cameras, Wi-Fi 6, Bluetooth 5.1, dedicated GPS, and integrated 4G LTE with optional 5G.
Technical Specifications
Complete Factory Hardware SpecsDisplay & Touch
Display Type:14-inch Industrial LCD Screen
Resolution:1920 × 1080 Full HD (16:9)
Brightness:1000 nits Sunlight Readable
Touch Panel:10-Point Capacitive Screen
Surface Hardness:Hardness Above 7H (Scratch-Resistant)
Touch Modes:Supports Glove Touch & Wet-Hand Operation
Computing Engine & Storage
Processor (CPU):Intel® Core™ Ultra 7 155H (up to 4.80 GHz)
CPU Cache:24M Intel® Smart Cache
Graphics (GPU):Intel® Arc™ graphics (Xe LPG Architecture)
System RAM:16GB DDR5 (Default) / 32GB (Optional)
Solid State Drive:256GB M.2 SSD (Scalable up to 2TB)
Operating System:Windows 11 / Windows 10 IoT Enterprise
Security Chip:Hardware TPM 2.0 Security Processor
Wireless & Data Capture
Wi-Fi Interface:Intel AX200, Wi-Fi 6 (2.4G + 5.8G Dual Band)
Bluetooth:Bluetooth 5.1 (BLE Class 1, Range: 10m)
Satellite GPS:Dedicated GPS Positioning Receiver
Cellular Modem:4G LTE (LTE-FDD & LTE-TDD Bands)
5G Option:Optional 5G Mobile Broadband Module
Data Capture:Integrated NFC Module + Fingerprint Reader
Barcode Reader:Optional 1D/2D Hardware Barcode Scanner
Cameras, Audio & Sensors
Front Camera:5.0 MP High-Definition Webcam
Rear Camera:13.0 MP Auto-Focus with LED Flash
Audio Speakers:2 × Built-in 3W Waterproof Speakers
Integrated Sensor:Hardware G-Sensor (Gravity Acceleration)
Physical Buttons:Power, Vol+, Vol-, Custom Key, F Key (Barcode)
I/O Ports & Peripherals
USB Ports:3 × USB Type-A (1 × USB 3.2, 2 × USB 2.0)
Type-C Interface:1 × USB Type-C (Supports Thunderbolt 4)
Ethernet LAN:1 × RJ45 (10/100/1000M Self-Adaptive)
Secondary LAN:1 × RJ45 Gigabit (USB 2.0 Protocol Bridge)
Serial COM Port:1 × True RS-232 Serial Port (DB9)
Display Output:1 × Mini HDMI 2.0a Video Port
Audio Jack:1 × φ3.5mm Standard Headset/Mic Jack
Expansion Slots:1 × Micro SIM Card Slot, 1 × TF Card Slot
Docking Port:1 × 12-Pin Pogo Pin (USB Data & DC Charge)
DC Input Jack:1 × DC 19V/3.78A φ5.5mm Power Interface
Power Architecture & Battery
Internal Battery:1300mAh / 11.1V Built-in Backup Cell
Removable Battery:4850mAh / 11.55V Hot-Swappable Main Battery
Battery Runtime:Up to 8 Hours Continuous Standard Video Playback
Power Adapter:AC 100V~240V to DC 19V / 3.78A (71.82W)
Physical & Mechanical Dimensions
Dimensions (W×H×D):366.2 × 246.9 × 24.8 mm
Bare Unit Weight:2400g (Approx. 2.40 kg)
Packaging Box Size:445 × 315 × 75 mm
Gross Pack Weight:3100g (Approx. 3.10 kg)
Chassis Color:Industrial Matte Black Rugged Polymer & Alloy
Environment & Certifications
Ingress Protection:IP65 Certified (Dust & Water Resistant)
Drop Resistance:1.22 Meter Drop Resistance to Concrete
Military Standard:MIL-STD-810H Compliant (Vibration/Shock)
Certifications:CE, FCC, RoHS, MIL-STD-810H
Operating Temp:-20°C to +60°C (-4°F to 140°F)
Storage Temp:-30°C to +70°C (-22°F to 158°F)
Operating Humidity:95% Relative Humidity (Non-Condensing)
Factory Warranty:2 Years Comprehensive Limited Warranty
Standard Included Accessories:
1 × 19V / 3.78A AC/DC Power Adapter with Regional Cord, 1 × Ergonomic Rear Hand-Strap.
