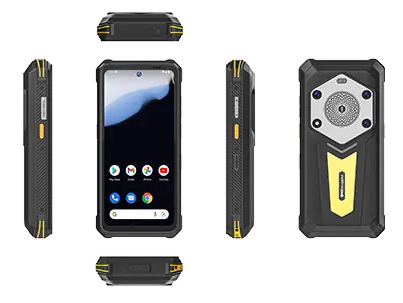

6.78" 5G Rugged Smartphone (CC-RP2)
5G ULTRA-RUGGED INDUSTRIAL HANDHELD
CC-RP2
6.78" FHD+ 120Hz IPS | MediaTek Dimensity 6300 Octa-Core | 8GB RAM + 256GB ROM | 20,000mAh Battery | IP68, ATEX & MIL-STD-810H Certified
Model & Ref. No:
CC-RP2 (Ref. No. 202609021029)
Processor Platform:
MediaTek MT6835T Dimensity 6300 Octa-Core (Up to 2.4GHz)
Battery & Charging:
Massive 20,000mAh Polymer Li-Ion / 33W Fast Charging
Durability & Ingress:
IP68 Waterproof / 1.22m Drop Proof / ATEX & MIL-STD-810H
KEY HIGHLIGHTS
- Next-Gen 5G Industrial Engine: Driven by the MediaTek MT6835T (Dimensity 6300) Octa-Core processor (2×A76 2.4GHz + 6×A55 2.0GHz) with ARM Mali-G57 GPU and 8GB LPDDR4X RAM running Android 14 with GMS.
- 6.78" FHD+ 120Hz Ultra-Fluid Screen: 1080 × 2460 high-resolution display with 520 Nits peak brightness, 120Hz refresh rate, Corning Gorilla Glass III (7H+ hardness), and wet-hand/glove touch support.
- Colossal 20,000mAh Extended Battery: High-capacity 3.87V / 20,000mAh built-in polymer lithium-ion battery with 33W fast charging for multi-day field autonomy.
- Multi-Lens Night Vision Camera System: 48MP main camera with PDAF autofocus, dedicated 20MP infrared night vision camera, 2MP macro camera with true flash, and a high-res 32MP front camera.
- Industrial Field Essentials: Integrated ultra-bright 1000 Nits camping light, RGB breathing light strip, infrared remote control (over 10m range), POC network intercom, integrated NFC, 2-in-1 power fingerprint sensor, and dual-SIM 5G connectivity.
- Extreme Defense Sealing: Heavy-duty shock-absorbing ABS+PC structure with IP68 dust/water submersion protection, 1.22m drop resistance, ATEX certification, and MIL-STD-810H compliance.
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Chipset:MediaTek MT6835T (Dimensity 6300)
CPU Architecture:Octa-Core (2 × A76 2.4GHz + 6 × A55 2.0GHz)
GPU:ARM Mali-G57
Operating System:Android 14 with GMS
System RAM:8GB LPDDR4X
Internal Storage:256GB UFS2.2 (Optional 512GB Bulk)
Storage Expansion:1 × TF Card Slot
Display & Touch
Screen Size:6.78 Inch
Display Type:FHD+ IPS / TFT Display
Resolution:1080 × 2460 px
Brightness:520 Nits Sunlight Readable
Refresh Rate:120Hz Ultra-Smooth
Touch Panel:10-Point Capacitive Touch (Wet-Hand & Glove Support)
Glass Protection:Corning Gorilla Glass III, 7H+ Hardness
Cameras, Flash & Sensors
Main Rear Camera:48.0 MP Autofocus with PDAF
Night Vision Camera:20.0 MP Autofocus Night Vision
Macro Camera:2.0 MP Macro Lens
Front Camera:32.0 MP Fixed Focus
Camera Flash:Integrated True Flash
Sensors:Light, Proximity, 3D Accelerometer, Geomagnetic, Gyroscope, Gravity, Barometer
Biometrics:Power On/Off & Fingerprint 2-in-1
Network & Wireless Connectivity
Cellular Technology:5G / 4G LTE / 3G / 2G Multi-Band Support
SIM Interface:5G+ Dual SIM (Micro SIM + TF / Micro SIM + Nano SIM)
Wi-Fi Connectivity:2.4G + 5.0G Dual-Band Wi-Fi, AP Seamless Roaming
Bluetooth:Bluetooth 5.2
GNSS Navigation:GPS / BeiDou / Galileo / GLONASS / QZSS, A-GPS
NFC Interface:ISO18092, ISO14443 A/B, ISO15693 & Mifare Support
Special Field Functions & I/O Ports
Camping Light:Maximum Brightness up to 1000 Nits
Breathing Light:RGB LED Strip with Fixed Flash Frequency
Infrared Control (IRC):Remote Control Distance Over 10 Meters
POC Intercom:Public Operator Communication Network Intercom
Data & Charging Port:1 × USB Type-C
Audio Jack:1 × Dedicated Earphone Jack
Battery Pack:Built-in 3.87V / 20,000 mAh Polymer Li-Ion
Fast Charging:33W High-Speed Fast Charging
Environmental & Mechanical
Dimensions:181.8 × 87.8 × 29.05 mm
Product Weight:Approx. 600 g
Chassis Material:Heavy-Duty ABS + PC Reinforced Shell
Color:Industrial Black + Orange Accent
Ingress Protection:IP68 Dust & Water Submersion Proof
Drop Resistance:1.22 Meter Drop Resistance
Military & HazLoc:ATEX Certified & MIL-STD-810H Compliant
Operating Temperature:-20°C to +60°C
Storage Temperature:-30°C to +70°C
Operating Humidity:95% RH Non-Condensing
Included Accessories:Lanyard, 33W Fast Charging Adapter, 1m Type-C Cable
