MIL-SPEC C4ISR & INDUSTRIAL MISSION-CRITICAL COMPUTING

8″ Rugged Android Tablet PC (CC08RAT-MT6769)

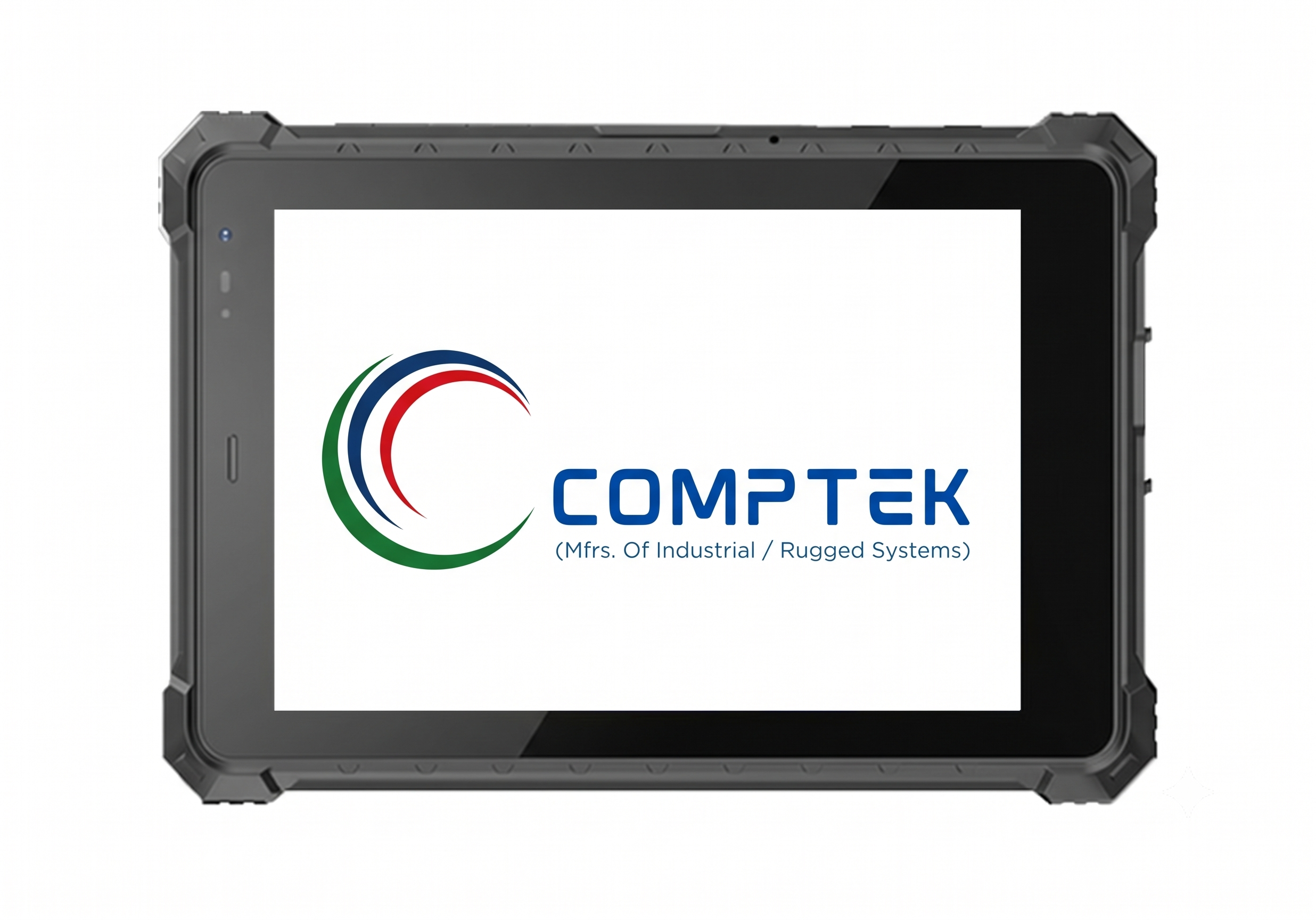

8 Inch Rugged Android Tablet PC Front View

IP67 SUBMERSIBLE RUGGED FIELD TABLET

CC08RAT-MT6769

8″ WUXGA (1920×1200) | 700 nits High-Bright | MediaTek MT6769 Octa-Core | 9,400mAh Removable Battery | IP67 Rated

Processor: MediaTek MT6769 Octa-Core (ARM Mali-G52 MC2)

Display & Brightness: 8″ IPS TFT LCD (1920×1200) / 700 nits (Opt. 1000 nits)

Memory & Storage: 8GB LPDDR4 / 128GB Storage (TF Card Slot)

Durability & Ingress: IP67 Submersible / MIL-STD-810H / 1.22m Drop Resistance

KEY HIGHLIGHTS

MediaTek MT6769 8-Core Performance: Powered by the MediaTek MT6769 Octa-Core processor (2×A75 2.0GHz + 6×A55 1.7GHz) with ARM Mali-G52 MC2 graphics and 8GB LPDDR4 RAM running modern Android 16.
700 nits Sunlight-Readable FHD Display: 8-inch 1920×1200 IPS screen with 700 nits luminance (optional 1000 nits), Anti-Fingerprint (AF) coating, 7H hardness, and medical rubber gloves/wet hand touch support.
9,400mAh High-Capacity Removable Battery: 3.8V / 9400mAh removable battery pack supporting PD33W Type-C rapid charging and 5V/3A DC power input for continuous field deployment.
Complete Industrial & Mission I/O: Outfitted with USB Type-C (PD33W, OTG), USB 2.0 Type-A, Micro HDMI, RJ45 Ethernet LAN, 3.5mm audio jack, 12-pin POGO docking pin, DC plug, and Micro SIM.
Extreme Environmental Protection: Certified IP67 dustproof and waterproof submersible protection, 1.22m drop resistance, MIL-STD-810H compliance, 4G LTE, dual-band Wi-Fi (Opt. Wi-Fi 6), Bluetooth 5.0 BLE, GPS/Beidou/Galileo/GLONASS, and dual 1.2W waterproof speakers.

DOWNLOAD DATASHEET (PDF)

Standard vs. Optional Configuration Matrix

Custom Build-To-Order Available

System Component	Standard Factory Configuration	Available Optional Upgrades
Processor (CPU)	MediaTek MT6769 Octa-Core (2×A75 2.0GHz + 6×A55 1.7GHz)	Standard Factory Fitted
Graphics (GPU)	ARM Mali-G52 MC2 Graphics Engine	Integrated High-Efficiency Architecture
System Memory (RAM)	8GB LPDDR4 High-Speed RAM	Standard Factory Fitted
Storage Drive	128GB Storage	Expandable via TF Card Slot
Display & Luminance	8″ IPS TFT LCD (1920 × 1200), 700 nits High-Bright	Optional 1000 nits Ultra-Bright Panel
Touch Interface	5-Point Touch G+G, 7H Hardness, AF Coating	Medical Rubber Gloves & Customizable Wet Hand Touch
Operating System	Android 16	Enterprise Long-Term Support Platform
WLAN (Wi-Fi)	Wi-Fi 5 (802.11 a/b/g/n/ac) 2.4G+5.8G	Optional Wi-Fi 6 Protocol
Cellular & Satellite	4G LTE + GPS / Beidou / Galileo / GLONASS	Optional Single Beidou High-Precision Positioning
Data Capture & Security	Integrated NFC Module	Optional Barcode Scanner / UHF RFID / LF RFID
Battery Architecture	9,400 mAh / 3.8V Removable Battery Pack	Optional Spare Removable 9400mAh Battery Pack
Charging Protocols	Type-C PD33W Rapid Charge + DC 5V/3A Plug	30W Fast Charge Adapter Included
Docking & Mounting	12-Pin POGO Pin (USB + Charging) + Hand Strap	Optional Docking Station / Carry Strap / DC Power Adapter

Technical Specifications

Complete Factory Hardware Specs

Display & Touch

Display Type:8″ IPS TFT LCD

Resolution:1920 × 1200 FHD

Aspect Ratio:16:10

Brightness:700 nits (Optional 1000 nits)

Touch Panel: Anti-fingerprint (AF) Coating, 5-point touch G+G, Hardness 7H, Support for Medical Rubber Gloves Touch Screen (Can be Customized Wet Hand Touch Screen).

Computing Engine & Storage

Processor (CPU):MediaTek MT6769 Octa-Core

Core Setup:2×Cortex-A75 2.0GHz + 6×Cortex-A55 1.7GHz

Graphics (GPU):ARM Mali-G52 MC2

System Memory:8GB LPDDR4

Internal Storage:128GB

Operating System:Android 16.0

Wireless & Navigation

WLAN (Wi-Fi):Wi-Fi 5 (802.11 a/b/g/n/ac) 2.4G+5.8G (Opt. Wi-Fi 6)

Cellular (WWAN):4G / LTE

Bluetooth:Bluetooth 5.0 (BLE) Class 1 (Distance: 10m)

GNSS Navigation:GPS, Beidou, Galileo, GLONASS

Beidou Option:Single Beidou Positioning (Optional)

NFC Module:Integrated NFC Module

Barcode Module:Barcode Scanner Module (Optional)

RFID Options: UHF RFID Module (Optional), LF RFID Module (Optional).

Cameras, Audio & Sensors

Front Camera:8.0 MP Fixed Focus Camera

Rear Camera:16.0 MP Autofocus with Flash

Audio Speakers:Waterproof Speaker 1.2W × 2

Sensors: Gravity Sensor, Compass, Gyroscope, Light Sensor, Distance Sensor, FM Radio.

Physical Controls: 1 × Power Button, 2 × Volume +/- Keys, 2 × Custom Keys (P key & F Key).

I/O Ports & Peripherals

Type-C Port:1 × Type-C (USB 2.0, PD33W, OTG Support)

USB Port:1 × USB 2.0 Type-A

Ethernet LAN:1 × RJ45 LAN Port

Video Out:1 × Micro HDMI Port

Audio Jack:1 × 3.5mm Headphone Jack

Card Slots:1 × Micro SIM Slot, 1 × TF Card Slot

DC Input Jack:1 × DC Plug (5V/3A)

Docking Port:1 × POGO Pin (12-Pin for Charging/Docking)

Battery & Power Architecture

Battery Type:Removable Battery Pack

Battery Capacity:9,400 mAh / 3.8V

Power Adapter:Type-C 30W Fast Charging Adapter

Optional Power:DC Power Adapter 5V/3A (Optional)

Physical & Packaging Specs

Dimensions (W×H×D):232.2 × 151.3 × 30.4 mm

Product Weight:850 g

Chassis Color:Black Industrial Finish

Packaging Box Size:335 × 175 × 68 mm (W×H×D)

Packaging Box Weight:1381 g

Standard Included Accessories: 1 × 30W Fast Charge Adapter, 1 × Hand Strap.

Environmental & Reliability

IP Ingress Rating:IP67 Submersible Waterproof & Dustproof

Drop Test:1.22m Drop Resistance (MIL-STD-810H)

Certifications:CE, FCC, RoHS, MIL-STD-810H

Operating Temperature:-20°C ~ 60°C

Storage Temperature:-30°C ~ 70°C

Relative Humidity:95% Non-Condensing

Warranty:2 Years Comprehensive Limited Warranty
