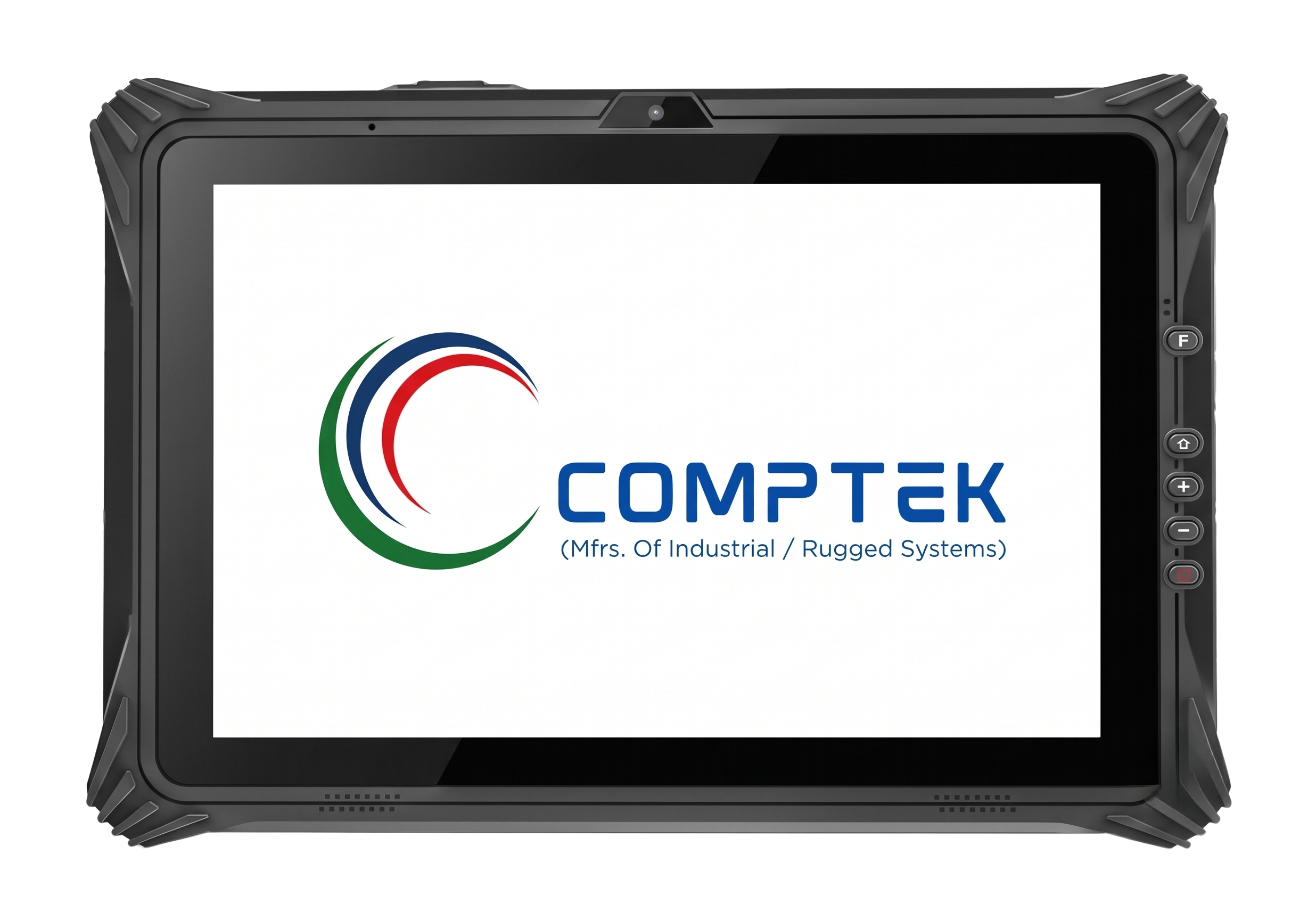

8″ Rugged Android Tablet PC (CC08RAT-MT6789)
COMPACT INDUSTRIAL FIELD TABLET
CC08RAT-MT6789
8″ WUXGA (1920×1200) | 550 nits High-Bright | MediaTek MT6789 | 10,000mAh Removable Battery | Android 14
Processor:
MediaTek MT6789 (ARM G57 MC2 GPU)
Display & Brightness:
8″ TFT LCD (1920×1200) / 550 nits / 5-Point PCAP Touch
Memory & Storage:
8GB LPDDR4 / 128GB eMMC (TF Slot Max. 512GB)
Durability & Ingress:
IP65 Certified / MIL-STD-810H / 1.22m Drop Proof
KEY HIGHLIGHTS
- High-Efficiency MediaTek Architecture: Powered by the MediaTek MT6789 processor paired with ARM G57 MC2 graphics and 8GB LPDDR4 RAM running Android 14 (Optional Android 12).
- 550 nits Sunlight-Readable FHD Display: 8-inch 1920×1200 high-resolution panel with 5-point PCAP touch and durable G+G glass structure for versatile indoor and outdoor operation.
- Extended Removable Battery Life: High-capacity 3.8V / 10,000mAh removable battery pack offering all-day field reliability with DC 5V/3A power adapter charging.
- Complete Industrial I/O Interfaces: Integrated USB 2.0 Type-A, USB Type-C, 3.5mm earphone jack, dual SIM card slots, TF card slot expandable up to 512GB, and a 12-pin POGO docking connector.
- Defense-Grade Rugged Engineering: Sealed IP65 dust and water resistance, 1.22m drop test certified, MIL-STD-810H, CE, FCC, RoHS certified, with Wi-Fi (ac), 4G LTE, Bluetooth 5.2, GPS/GLONASS/Beidou, and NFC.
Technical Specifications
Complete Factory Hardware SpecsDisplay & Touch
Display Type:8″ TFT LCD
Resolution:1920 × 1200 FHD
Aspect Ratio:16:10
Brightness:550 nits Sunlight Readable
Touch Panel:
5 Points PCAP Touch, G+G Glass
Computing Engine & Storage
Processor (CPU):MediaTek MT6789
Graphics (GPU):ARM G57 MC2
System Memory:8GB LPDDR4
Internal Storage:128GB eMMC
Operating System:Android 14 (Default) / Android 12 (Optional)
Wireless & Navigation
WLAN (Wi-Fi):802.11 a/b/g/n/ac
Cellular (WWAN):4G / LTE
Bluetooth:Bluetooth 5.2
GNSS Navigation:GPS, GLONASS, Beidou
NFC Module:Integrated NFC Module
Barcode Module:Barcode Scanner Module (Optional)
Cameras, Controls & Sensors
Front Camera:5.0 MP Front Camera
Rear Camera:13.0 MP Rear Camera
Physical Buttons:
1 × Power On/Off, 1 × Volume +, 1 × Volume -, 1 × Home, 1 × Custom.
I/O Ports & Peripherals
USB Ports:1 × USB 2.0 Type A, 1 × USB Type C
Audio Jack:1 × 3.5mm Earphone Jack
SIM Card Slots:2 × SIM Card Slot (Dual SIM)
Storage Expansion:1 × TF Slot (Max. 512GB)
Docking Port:1 × 12pin Pogo Pin
Battery & Power Architecture
Battery Type:Removable Battery Pack
Battery Capacity:10,000 mAh / 3.8V
Power Adapter:DC 5V / 3A
Physical & Packaging Specs
Dimensions (W×H×D):236.7 × 155.7 × 20 mm
Product Weight:910 g (Ultra-Portable Design)
Standard Included Accessories:
1 × Hand Strap, 1 × Power Adapter.
Environmental & Reliability
IP Ingress Rating:IP65 Certified (Dust-Tight & Water-Resistant)
Drop Test:1.22 Meter Drop Test Resistance
Certifications:MIL-STD-810H, CE, FCC, RoHS
Operating Temperature:-20°C ~ 60°C
Storage Temperature:-30°C ~ 70°C
Relative Humidity:95% (Non-Condensing)
Warranty:2 Years Comprehensive Limited Warranty
Downloads
Datasheet | 8″ Rugged Android Tablet PC (CC08RAT-MT6789)
User Manual & Deployment Guide | 8″ MediaTek MT6789 Android 14 Tablet
×
