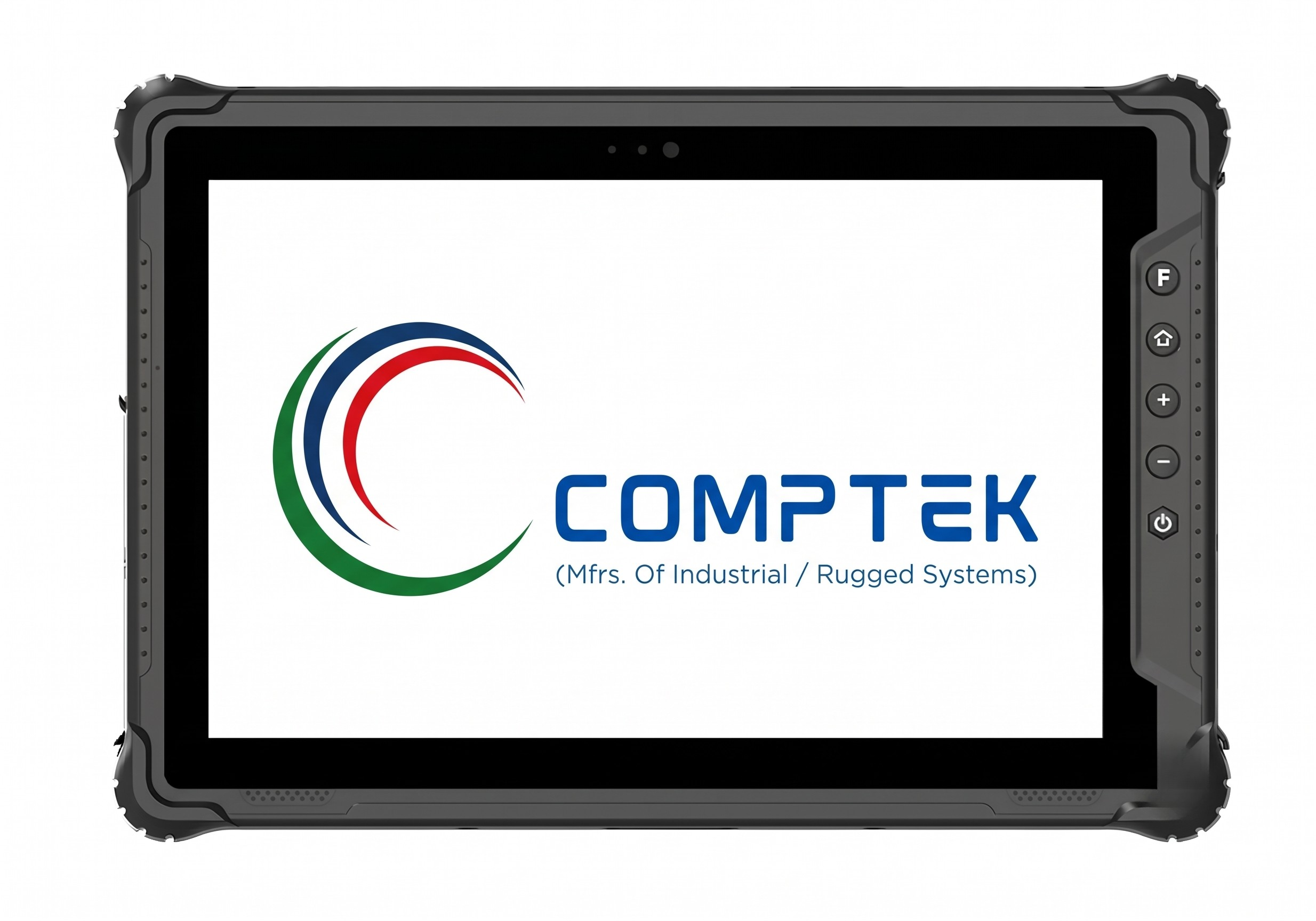

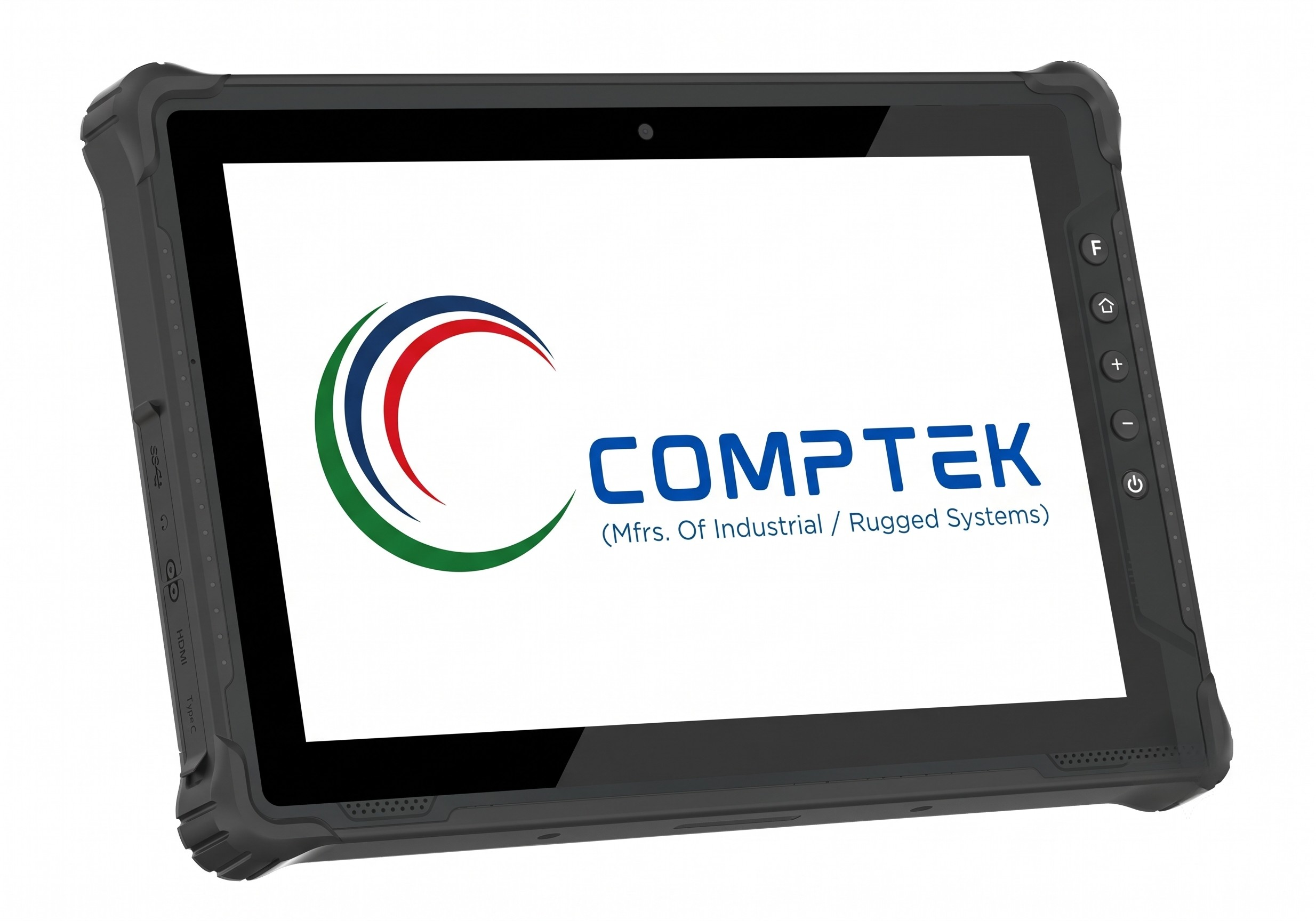

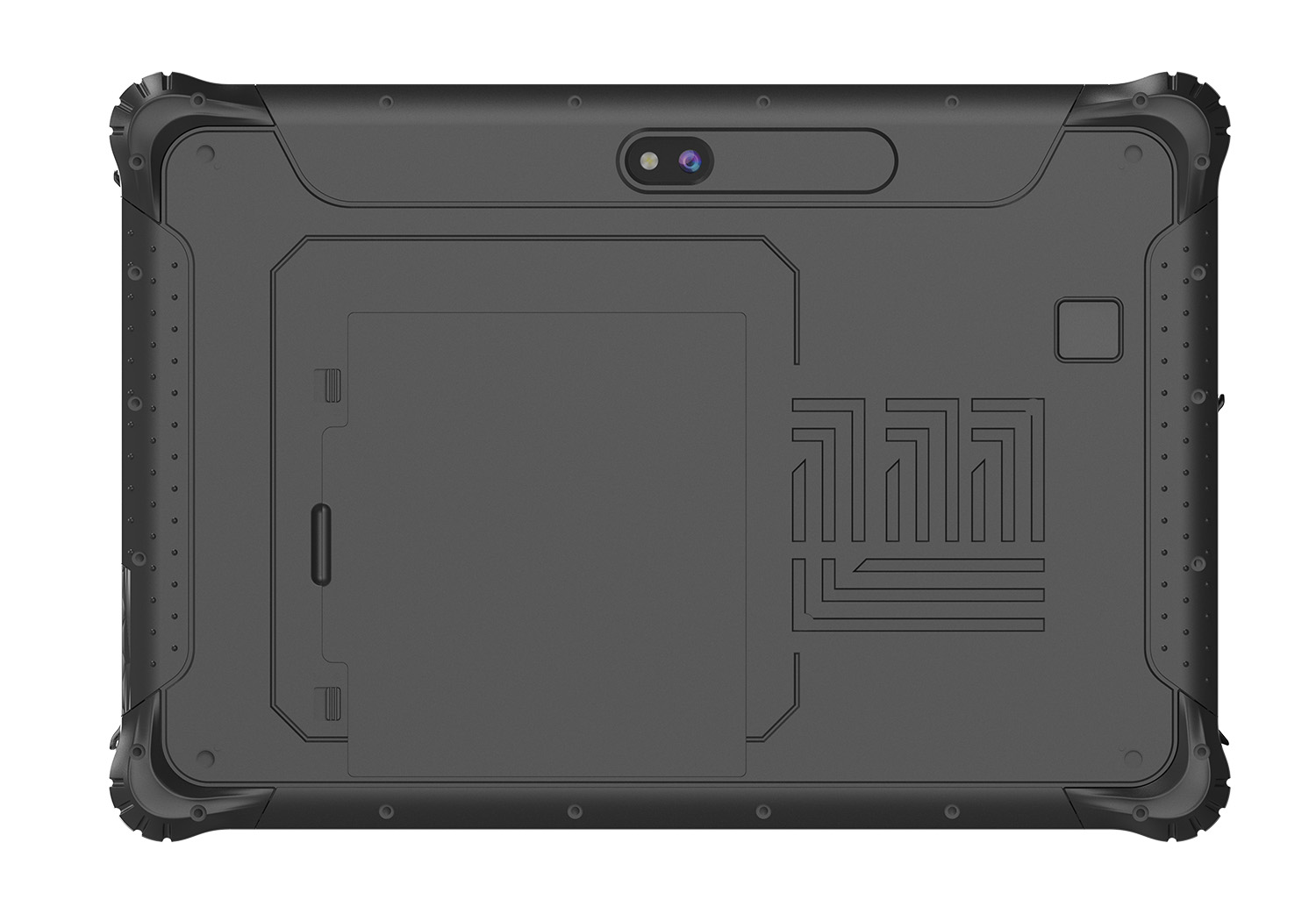

10.1″ Rugged Android Tablet PC (CC101RAT-QCM6490)
1000 NITS ULTRA-HIGH BRIGHT FIELD TABLET
CC101RAT-QCM6490
10.1″ WUXGA (1920×1200) | 1000 nits Sunlight Readable | Qualcomm QCM6490 Octa-Core | Android 14 GMS
Processor:
Qualcomm QCM6490 Octa-Core 2.7GHz (Adreno 643 GPU)
Display & Brightness:
10.1″ IPS LCD (1920×1200) / 1000 nits / 7H Tempered Glass
Memory & Storage:
8GB LPDDR4x / 128GB eMMC (Micro SD up to 512GB)
Durability & Ingress:
IP65 Certified / MIL-STD-810H / 1.22m Drop Resistance
KEY HIGHLIGHTS
- High-Performance Qualcomm Computing: Driven by the Qualcomm QCM6490 Octa-Core processor clocked at 2.7GHz with Adreno GPU 643 and 8GB LPDDR4x RAM running certified Android 14 / GMS.
- 1000 nits Direct Sunlight Readable Display: 10.1-inch 1920×1200 (16:10) ultra-bright panel with 10-point capacitive touch and 7H hardness tempered glass protection.
- Comprehensive High-Speed Connectivity: Cutting-edge Wi-Fi 6E & DBS (2×2 MU-MIMO), 4G LTE cellular, Bluetooth 5.2, and Dual-Frequency (L1+L5) GPS/GLONASS/BDS navigation.
- Industrial Ports & Expansion: Equipped with USB 3.0 Type-A, USB 3.0 Type-C (Data & Charging), HDMI, 3.5mm audio jack, 12-pin POGO docking connector, and a 3-in-1 card tray (Micro SD + Nano-SIM).
- Dual Biometrics & Durability: Integrated NFC module, integrated fingerprint scanner, optional 1D/2D barcode reader, 10,000mAh battery, IP65 water/dust resistance, and MIL-STD-810H defense compliance.
Technical Specifications
Complete Factory Hardware SpecsDisplay & Touch
Display Type:10.1 inch IPS TFT LCD
Resolution:1920 × 1200 WUXGA
Aspect Ratio:16:10
Brightness:1000 nits Sunlight Readable
Touch Panel:
10-point Capacitive Touchscreen, Tempered Glass with 7H Surface Hardness.
Computing Engine & Storage
Processor (CPU):Qualcomm QCM6490 Octa-Core 2.7GHz
Graphics (GPU):Qualcomm Adreno GPU 643
System Memory:8GB LPDDR4x
Internal Storage:128GB eMMC
Operating System:Android 14 / GMS
Wireless & Navigation
Wi-Fi:
Wi-Fi 6E & DBS, IEEE 802.11a/b/g/n/ac/ax, Wi-Fi 2 × 2 MU-MIMO.
Cellular:4G LTE
Bluetooth:Bluetooth 5.2
GNSS Navigation:GPS / GLONASS / BDS (Dual-Frequency L1 + L5)
NFC Module:Integrated NFC Module
Fingerprint:Integrated Fingerprint Module
Barcode Module:Barcode Scanner Module (Optional)
Cameras, Audio & Controls
Front Camera:5.0 MP Front Camera
Rear Camera:13.0 MP Autofocus with Astigmatism
Speaker:1 × 1W Audio Speaker
Sensors:
G-sensor, Light Sensor, Gyroscope, Compass.
Physical Buttons:
1 × Power (Yellow), 1 × Volume +, 1 × Volume -, 1 × P1 Key (HOME Key), 1 × F Key (Customizable when scanner is not equipped).
I/O Ports & Peripherals
USB Ports:1 × USB 3.0 Type-A, 1 × USB 3.0 Type-C
Type-C Feature:Data & Fast Charging Support
Video Out:1 × HDMI Port
Audio Jack:1 × 3.5mm Standard Earphone Jack
Card Slots:
Three-in-One Card Slot: 1 × Micro SD (Max. 512GB) + 1 × Nano-SIM.
DC Input Jack:1 × DC-IN Supports 5V/4A Charging
Docking Port:1 × 12-Pin POGO Pin
Battery & Power Architecture
Battery Capacity:10,000 mAh / 3.8V
Battery Life:
6 Hours (Default 50% volume, Connected to Wi-Fi, Default 200 nits brightness, Playing 1080P HD video).
Power Adapter:DC 5V / 4A Power Adapter
Physical & Packaging Specs
Dimensions (W×H×D):274.9 × 188.7 × 22.2 mm
Product Weight:1028 g
Chassis Color:Grey Industrial Finish
Packaging Box Size:369 × 205 × 60 mm (W×H×D)
Packaging Box Weight:1750 g
Standard Included Accessories:
1 × Power Adapter, 1 × Hand Strap.
Environmental & Reliability
IP Ingress Rating:IP65 Certified
Drop Test:1.22 Meter Drop Resistance
Certifications:CE, MIL-STD-810H, CEC Compliant
Operating Temperature:-20°C to 60°C (-4°F ~ 140°F)
Storage Temperature:-30°C to 70°C (-22°F ~ 158°F)
Relative Humidity:95% Non-Condensing
Warranty:2 Years Standard Limited Warranty
