MIL-SPEC C4ISR & INDUSTRIAL MISSION-CRITICAL COMPUTING

10.95″ Rugged Android Tablet PC (CC11RAT-MT8781)

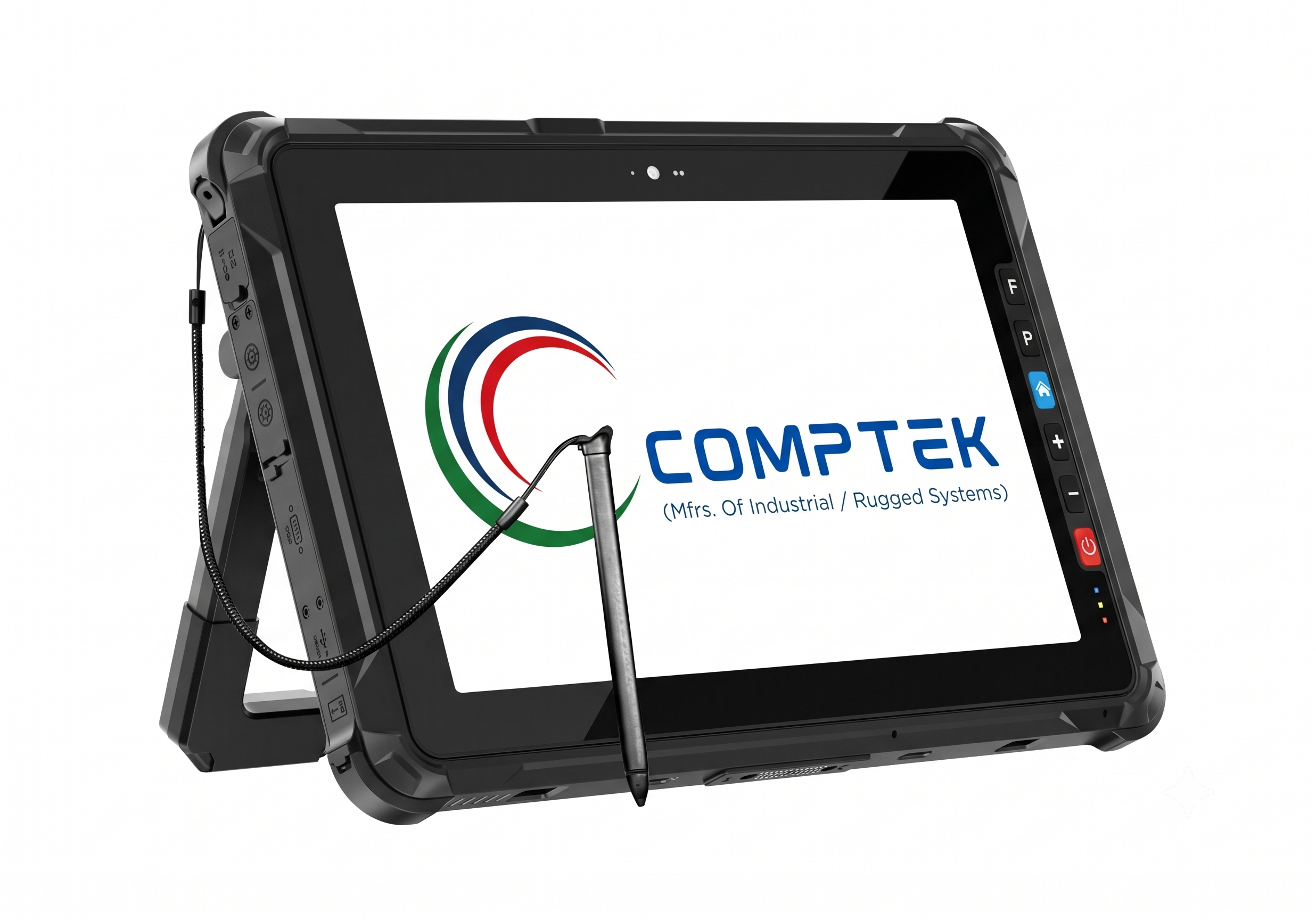

10.95 Inch Rugged Android Tablet PC Front View

IP67 ULTRA-RUGGED MISSION FIELD TABLET

CC11RAT-MT8781

10.95″ FHD (1920×1200) | 550 nits | MediaTek MT8781 Octa-Core | 20,000mAh Removable Battery | IP67 Rated

Processor: MediaTek MT8781 Octa-Core (2×A76 2.2GHz + 6×A55 2.0GHz)

Display & Touch: 10.95″ IPS (1920×1200) / 550 nits / Wet Hand & Glove Touch

Memory & Storage: 8GB RAM (Opt. 12GB) / 128GB (Opt. 256GB)

Durability & Ingress: IP67 Waterproof / MIL-STD-810H / 1.22m Drop Resistance

KEY HIGHLIGHTS

Powerful MediaTek Octa-Core Engine: Built on the MediaTek MT8781 architecture with Arm Mali-G57 GPU, 8GB high-speed RAM, and 128GB storage running Android 16.
Sunlight-Readable Hardened Glass: 10.95″ 1920×1200 IPS display delivering 550 nits brightness, ≥7H surface hardness, and full responsiveness with wet hands or heavy work gloves.
Colossal 20,000mAh Removable Battery: High-voltage 3.8V 20,000mAh removable battery pack delivering over 8 hours continuous runtime with 30W Type-C fast charging support.
Aviation Plugs & Motherboard Expansion: Reserved aviation power and USB sockets, motherboard expansion headers (SATA, PCIe, 3-way USB 2.0), RS232 serial, RJ45 LAN, and HDMI.
Advanced Imaging & High-Reliability IP67: 24MP front camera, 48MP autofocus rear camera with flash, IP67 dust/water immersion protection, 4G LTE, Wi-Fi 5 (Opt. Wi-Fi 6), and MIL-STD-810H defense compliance.

DOWNLOAD DATASHEET / MANUAL

Standard vs. Optional Configuration Matrix

Custom Build-To-Order Available

System Component	Standard Factory Configuration	Available Optional Upgrades
Processor (CPU)	MediaTek MT8781 Octa-Core (2×A76 2.2GHz + 6×A55 2.0GHz)	Standard Factory Fitted
Graphics (GPU)	Arm Mali-G57 Graphics Engine	Integrated High-Efficiency Architecture
System Memory (RAM)	8GB High-Speed RAM	Optional 12GB High-Capacity Memory
Storage Drive	128GB Flash Storage (TF Card Expandable)	Optional 256GB Flash Storage
Display & Luminance	10.95″ IPS TFT LCD (1920 × 1200), 550 nits	10-Point Touch G+FF, Hardness ≥7H, Wet Hand & Glove Support
Operating System	Android 16	Enterprise Long-Term Support Platform
WLAN (Wi-Fi)	Wi-Fi 5 (802.11 a/b/g/n/ac)	Optional Wi-Fi 6 High-Speed Protocol
Cellular & Satellite	4G LTE + GPS / Beidou / Galileo / GLONASS	Optional Tiantong Satellite Module
Data Capture & Security	Integrated NFC Module	Optional 1D/2D Barcode Scanner / UHF / Fingerprint Sensor
Advanced Optical Modules	24.0MP Front + 48.0MP Rear Autofocus Camera	Optional Thermal Imaging / 2000W Night Vision / Low-Light Vision
Aviation & Motherboard Bus	Reserved Aviation Plugs (Power & USB2.0 Air Plugs)	Motherboard Internal Expansion (SATA, PCIe, 3-way USB2.0)
Battery Architecture	20,000 mAh / 3.8V Removable High-Voltage Battery	Optional Spare Removable 20,000mAh Battery Pack
Docking & Charging	Pogo Pin (Charging + USB) + DC 19V Port	Type-C 30W Fast Charge Adapter Included
Straps & Mounts	Adjustable Stand & Stylus Pen Included	Optional Handle Strap / Shoulder Strap

Technical Specifications

Complete Factory Hardware Specs

Display & Touch

Display Type:10.95″ IPS TFT LCD

Resolution:1920 × 1200 FHD

Aspect Ratio:16:10

Brightness:550 nits

Touch Panel:10-Point Touch G+FF, Hardness ≥7H

Touch Capability: Supports touch operation with wet hands and touch operation with gloves.

Computing Engine & Storage

Processor (CPU):MediaTek MT8781 Octa-Core

Core Setup:2×Cortex-A76 2.2GHz + 6×Cortex-A55 2.0GHz

Graphics (GPU):Arm Mali-G57

System Memory:8GB (Optional 12GB)

Internal Storage:128GB (Optional 256GB)

Operating System:Android 16

Wireless & Navigation

Wi-Fi:Wi-Fi 5 802.11 a/b/g/n/ac (Opt. Wi-Fi 6)

Cellular:4G LTE

Bluetooth:Bluetooth 5.2 (Transmit Distance: 10m)

GNSS Positioning:GPS, Beidou, Galileo, GLONASS

NFC Module:Integrated NFC Module

Barcode Module:1D/2D Scanner (Optional)

Specialized Options: Tiantong Satellite Module, UHF RFID, Thermal Imaging, Low-Light Night Vision, Fingerprint Sensor.

Cameras, Audio & Sensors

Front Camera:24.0 MP Fixed Focus Camera

Rear Camera:48.0 MP Autofocus with Flash

Optional Optical:2000W Night Vision / Scan Head

Speakers & Mic:Speaker 2W / 4Ω × 2 / Dual MIC × 2

Sensors: Light Sensor, Proximity Sensor, Gravity Sensor, Compass, Gyroscope.

Physical Controls: 1 × Power Button, 2 × Volume +/- Keys, 2 × Custom Keys (P key, F key), 1 × Home Button.

I/O Ports & Peripherals

Type-C Port:1 × Type-C (USB 2.0 & Fast Charge)

USB Ports:2 × USB 2.0 Type-A

Serial Port:1 × RS232 (Opt. 232/422/485)

Video Out:1 × HDMI Port

Ethernet LAN:1 × RJ45 Network Port

Audio Jack:1 × 3.5mm Standard Headphone Jack

Card Slots:1 × TF Card Slot + 2 × Micro SIM Slots

DC Input:1 × DC Port (19V-1.2A, 5.5mm/2.1mm)

Docking Port:1 × Pogo Pin (Charging + USB)

Physical Security:1 × Anti-Theft Locking Hole

Extensions & Motherboard Bus

Aviation Plugs: Reserved aviation sockets: 1 × Power input air-plug interface, 1 × USB 2.0 air-plug interface.

Bus Integratability: Internal motherboard expansion reserved for SATA interface, PCIe interface, and 3-way USB 2.0 bus signals.

Battery & Power Architecture

Battery Type:Removable High-Voltage Lithium Battery

Battery Capacity:20,000 mAh / 3.8V

Battery Runtime:≥ 8 Hours (1080P + 50% Brightness)

Power Adapter:Type-C 30W Fast Charge Adapter

Physical & Packaging Specs

Dimensions:307.5 × 211.1 × 26.3 mm

Product Weight:1500 g

Chassis Color:Black Industrial Finish

Included Accessories: 1 × Type-C 30W Fast Charge Adapter, 1 × Adjustable Stand, 1 × Stylus Pen.

Environmental & Reliability

IP Ingress Rating:IP67 Submersible Waterproof & Dustproof

Drop Test:1.22 Meter Drop Resistance

Certifications:CE, MIL-STD-810H Compliant

Operating Temperature:-20°C ~ 60°C

Storage Temperature:-30°C ~ 70°C

Relative Humidity:95% Non-Condensing

Warranty:2 Years Standard Limited Warranty
