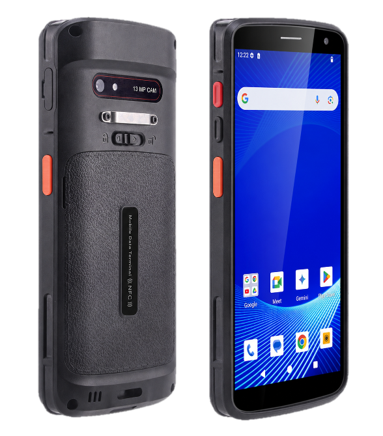

6" Rugged Smartphone (CRS-602)
INDUSTRIAL RUGGED HANDHELD
CRS-602
6" FHD IPS Display | MediaTek MT6765 Helio P35 Octa-Core | 4GB RAM + 64GB ROM | 5,050mAh Removable Battery | IP67 Certified
Model & Ref. No:
CRS-602 (Ref. No. 202606291105)
Processor Platform:
MediaTek MT6765 Helio P35 Octa-Core
Battery System:
Removable 3.85V / 5,050mAh Li-Polymer Battery
Durability & Ingress:
IP67 Waterproof / 1.5m Drop Proof / MIL-STD-810H
KEY HIGHLIGHTS
- Dependable Octa-Core Processing: Driven by MediaTek MT6765 Helio P35 Octa-Core processor (4×2.3GHz Cortex-A78 + 4×2.0GHz Cortex-A55) with PowerVR Rogue GE8320 GPU and 4GB RAM running Android 15.0.
- 6" High-Definition FHD Screen: 2160 × 1080 px IPS display delivering 480 Nits peak luminance for sharp indoor and outdoor readability.
- Removable 5,050mAh Endurance Battery: High-capacity 3.85V / 5,050mAh removable Li-polymer battery pack with 2 charging contacts for extended shifts.
- Field Imaging & Barcode Capture: 13MP rear camera and 5MP front camera with professional QR code scanning support.
- Connectivity & Navigation: Global 4G LTE Dual Nano-SIM, dual-band Wi-Fi, Bluetooth, NFC, and multi-constellation GNSS positioning.
- Engineered for Tough Environments: IP67 dust and water submersion resistance (immersion up to 2m for 30 minutes), 1.5m drop resistance, and MIL-STD-810H compliance.
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Chipset:MediaTek MT6765 Helio P35
CPU Architecture:Octa-Core (4 × 2.3GHz Cortex-A78 + 4 × 2.0GHz Cortex-A55)
GPU:PowerVR Rogue GE8320
Operating System:Android 15.0
System RAM:4GB
Internal Storage:64GB
Display & Audio
Screen Size:6 Inch
Display Type:FHD IPS LCD
Resolution:2160 × 1080 px
Brightness:480 Nits Peak Brightness
Audio Speaker:1W / 1115 Speaker
Cameras, Sensors & Controls
Rear Camera:13.0 MP Rear Camera
Front Camera:5.0 MP Front Camera
Sensors:Acceleration Sensor, Magnetic Field Sensor
Status Indicator:Red / Blue Notification LED
Buttons:2 × Scan Buttons, Power Button, Volume +/-
Network & Wireless Connectivity
Cellular Technology:Global 4G LTE, 3G, 2G Network Compatibility
Cellular Bands:GSM / CDMA / HSPA / LTE Multi-Band
SIM Interface:Dual SIM (Nano-SIM + Nano-SIM)
Wi-Fi & Bluetooth:Dual-band Wi-Fi & Bluetooth
GNSS Navigation:Integrated GNSS Positioning
NFC & Scanner:Integrated NFC, Professional QR Code Scanning
I/O Ports & Battery System
USB Interface:1 × USB Type-C
SIM Slots:2 × SIM Slots
Charging Contacts:2 × External Charging Contacts
Battery Type:Removable Li-Polymer Battery
Battery Capacity:3.85V / 5,050 mAh
Optional Dock:Charging Dock × 1 (Optional)
Environmental & Mechanical
Dimensions:164 × 77.6 × 16 mm
Product Weight:277 g
Chassis Material:Industrial Reinforced Plastic Shell
Color:Industrial Black
Ingress Protection:IP67 Dust & Water Resistant (Immersion up to 2m for 30 min)
Drop Resistance:Drop resistant up to 1.5 meters
Military Standard:MIL-STD-810H Compliant
Operating Temperature:-20°C to +50°C
Storage Temperature:-20°C to +70°C
Operating Humidity:5% RH ~ 95% RH
Included Accessories:Power Adaptor, Battery, USB Cable, Hand Strap
