6.3" Rugged Smartphone (CRS-888)
INDUSTRIAL RUGGED HANDHELD
CRS-888
6.3" FHD IPS Display | MediaTek MT6765 Helio P35 Octa-Core | 4GB RAM + 64GB ROM | 5,000mAh Removable Battery | IP65 Certified
Model & Ref. No:
CRS-888 (Ref. No. 202606291200)
Processor Platform:
MediaTek MT6765 Helio P35 Octa-Core
Battery System:
Removable 3.8V / 5,000mAh Li-Polymer Battery
Durability & Ingress:
IP65 Waterproof / 1.5m Drop Proof / MIL-STD-810H
KEY HIGHLIGHTS
- Reliable Octa-Core Performance: Powered by MediaTek MT6765 Helio P35 Octa-Core processor (4×2.3GHz Cortex-A78 + 4×2.0GHz Cortex-A55) with 4GB RAM and 64GB storage running Android 11.0.
- 6.3" High-Definition FHD Screen: 2340 × 1080 px IPS display delivering 480 Nits peak luminance for sharp clarity in rugged indoor and outdoor environments.
- Removable 5,000mAh Battery Architecture: Removable 3.8V / 5,000mAh lithium-ion polymer battery with dual charging contacts for continuous multi-shift operations.
- Triple Imaging System & Barcode Capture: 24MP main camera + 2MP macro lens with flashlight, 5MP front camera, and professional camera-based QR code scanning.
- Field Utility & PTT Communication: Dedicated physical PTT (Push-To-Talk) button, powerful 2W integrated speaker, NFC, Bluetooth 5.0, Wi-Fi, and multi-constellation GNSS.
- Certified Industrial Toughness: Reinforced metal + plastic body offering IP65 dust and water resistance, water immersion up to 2m for 30 minutes, 1.5m drop resistance, and MIL-STD-810H compliance.
Technical Specifications
Complete Factory Hardware SpecsProcessor, RAM & OS
Chipset:MediaTek MT6765 Helio P35
CPU Architecture:Octa-Core (4 × 2.3GHz Cortex-A78 + 4 × 2.0GHz Cortex-A55)
Operating System:Android 11.0
System RAM:4GB
Internal Storage:64GB
Display & Audio
Screen Size:6.3 Inch
Display Type:FHD IPS LCD
Resolution:2340 × 1080 px
Brightness:480 Nits Peak Brightness
Audio Speaker:2W Integrated Loudspeaker
Cameras, Sensors & Controls
Main Rear Camera:24.0 MP Main Camera
Macro Camera:2.0 MP Macro Lens
Front Camera:5.0 MP Front-Facing Camera
Camera Flash:Integrated Flashlight
Sensors:Accelerometer, Light, Proximity, Gyro, Geomagnetic Sensor, Pedometer
Buttons:Power Key, Volume +/-, Dedicated PTT Button
Status Indicator:Red / Blue Notification LED
Network & Wireless Connectivity
Cellular Technology:Global 4G LTE, 3G, 2G Network Compatibility
Cellular Bands:GSM / CDMA / HSPA / LTE Multi-Band
SIM Interface:4G+ Dual SIM (Nano-SIM + Nano-SIM)
Wi-Fi & Bluetooth:Dual-band Wi-Fi & Bluetooth 5.0
GNSS Navigation:Integrated GNSS Positioning
NFC & Scanner:Integrated NFC, Professional QR Code Scanning
I/O Ports & Battery System
USB Interface:1 × USB Type-C
SIM Slots:2 × SIM Slots
Charging Contacts:2 × External Charging Contacts
Battery Type:Removable Li-Polymer Battery
Battery Capacity:3.8V / 5,000 mAh

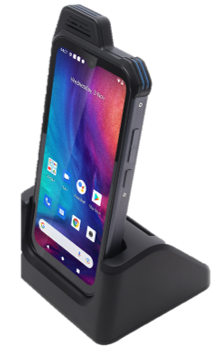

Optional Dock:Desktop Charging Dock × 1 (Optional)
Environmental & Mechanical
Dimensions:175 × 82 × 16 mm
Product Weight:Approx. 326 g
Chassis Material:Reinforced Metal + Plastic Shell
Color Options:Black, Orange
Ingress Protection:IP65 Dust & Water Resistant (Immersion up to 2m for 30 min)
Drop Resistance:Drop resistant up to 1.5 meters
Military Standard:MIL-STD-810H Compliant
Operating Temperature:-10°C to +50°C
Storage Temperature:-40°C to +70°C
Operating Humidity:5% RH ~ 95% RH
Included Accessories:Power Adaptor, Battery, USB Cable, Mini Screwdriver, Hand Strap, Lanyard
