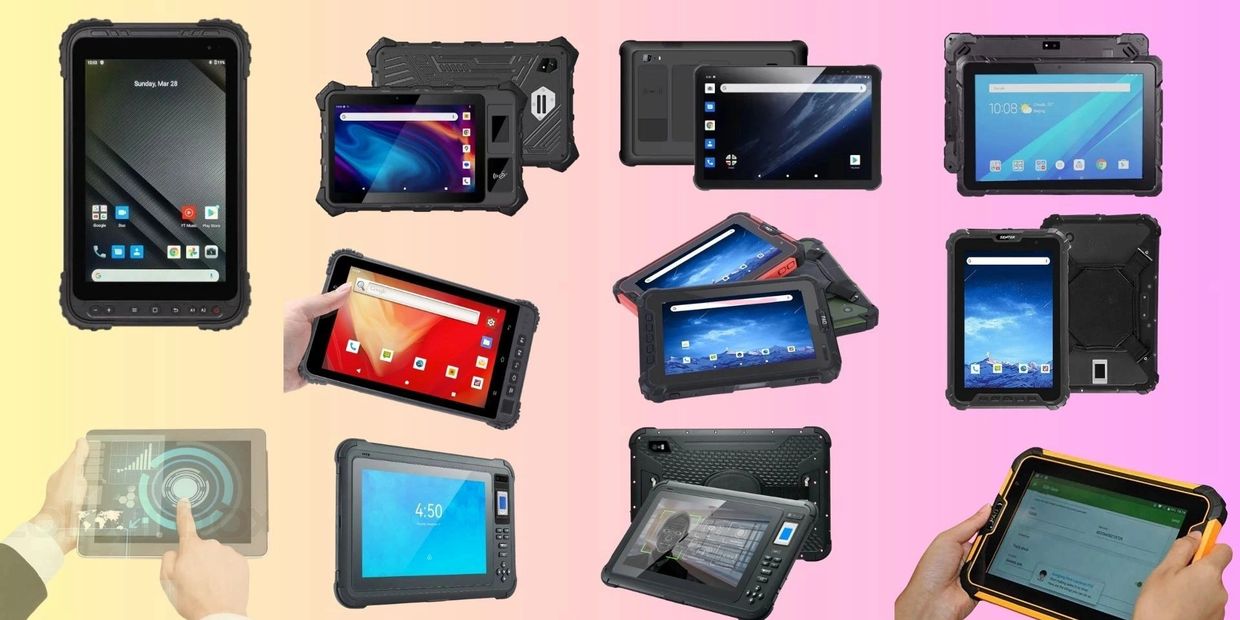

Rugged & Industrial Android Tablet PC — Full Technical
Product Overview
1) What is an Android Tablet PC (Industrial & Rugged)
An Android Tablet PC is a touchscreen computing device powered by the Android OS, optimized for industrial, field, vehicle, warehouse, medical, and outdoor environments.
Unlike consumer tablets, Industrial and Rugged models focus on long lifecycle, stable I/O, wide temperature operation, and mechanical durability.
2) Display Specifications
Screen Sizes
- 7.0″, 8.0″, 10.1″, 11.6″, 12.2″, 13.3″
Panel Type
- IPS / Industrial-grade TFT LCD
Resolution
- HD: 1280 × 800
- FHD: 1920 × 1200
- Optional sunlight-readable versions
Brightness
- Industrial: 350–600 nits
- Rugged / Outdoor: 700–1000 nits
Touch Technology
- Projected Capacitive (PCAP) – 10-point multi-touch
- Glove touch / wet touch (rugged models)
- Optional resistive touch (industrial)
Front Protection
- Hardened glass / chemically strengthened glass
- Anti-glare & anti-fingerprint coating
3) Processor (CPU) Options
ARM-based Industrial Processors
- Rockchip RK3288 – Quad-core
- Rockchip RK3399 – Hexa-core (Dual A72 + Quad A53)
- Rockchip RK3566 / RK3568 – Quad-core
- Rockchip RK3588 – Octa-core (high-performance)
MediaTek Options
- MT8781 / MT6789 / MT8768 – Octa-core (industrial & rugged tablets)
Clock Speed
- 1.8 GHz to 2.4 GHz (depending on SoC)
GPU
- ARM Mali-T860 / G52 / G57 / Mali-610 (SoC dependent)
4) Memory & Storage
RAM
- 2 GB / 4 GB / 8 GB
- Up to 16 GB (industrial / rugged variants)
Storage
- eMMC: 16 GB / 32 GB / 64 GB / 128 GB
- Optional up to 256 GB
- TF / microSD expansion up to 512 GB
5) Operating System
- Android 9, 10, 11, 12, 13, 14, 15 (with option to upgrade path to Android 16)
- Optional Linux / Ubuntu (industrial customization)
Software Support
- SDK / API support for application development
- Kiosk mode & device management supported
6) I/O Interfaces
Standard Interfaces
- USB 2.0 / USB 3.0
- USB Type-C (data + charging / OTG)
- HDMI / Micro-HDMI
- RJ45 Ethernet (10/100/1000 Mbps)
- Audio (3.5 mm)
- DC-IN power
Industrial Interfaces
- RS-232 / RS-485 (COM ports)
- GPIO / DIO (optional)
Expansion
- SIM slot (4G / LTE)
- TF / microSD slot
- External antenna connectors
- Pogo-pin docking interface (rugged models)
7) Wireless Connectivity
- Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz & 5 GHz)
- Bluetooth 4.2 / 5.0 / 5.2
- Optional 4G LTE
- Optional GPS / GLONASS / Beidou
- Optional NFC
8) Camera (Optional)
- Front: 2 MP / 5 MP
- Rear: 8 MP / 13 MP (Auto Focus, LED Flash)
- High-Resolution Rear Camera (Optional): 48 MP / 64 MP / 108 MP
- Barcode / QR scanning camera (rugged option)
9) Power & Battery
Power Input
- DC 12V
- Wide-range DC 12–36V (industrial / vehicle use)
Battery
- Built-in battery: 6000 mAh – 10,000 mAh
- Removable battery (rugged models)
- Hot-swap support (select rugged variants)
Charging
- Standard DC adapter
- Docking charger / vehicle charger (optional)
10) Mechanical Construction
Industrial Android Tablet PC
- Aluminum alloy or metal housing
- Slim and lightweight design
- Fanless, silent operation
- Designed for panel mount / VESA mount
Rugged Android Tablet PC
- Reinforced magnesium/aluminum chassis
- Rubber corner protection
- Shock-resistant enclosure
- Sealed ports with protective covers
11) Environmental Specifications
Operating Temperature
- Industrial: -10°C to +60°C
- Rugged: -20°C to +70°C
Storage Temperature
- -30°C to +80°C
Humidity
- 0% to 95% RH (non-condensing)
12) Protection & Certifications
Industrial Android Tablet
- IP54 / IP65 (front panel, model dependent)
- Optional: IP68 / IP69
Standards & Durability
- MIL-STD-810G / MIL-STD-810H compliant
- Shock resistance
- Vibration resistance
- Drop resistance
Protection Scope
- Full dust-tight sealing
- High-pressure water jet resistance (IP69)
- Temporary to prolonged immersion protection (IP68)
- Designed for harsh outdoor and mobile environments
13) Mounting Options
- Desktop stand
- VESA mount
- Panel mount
- Wall mount
- Vehicle mount / RAM mount (rugged)
- Docking station mounting
14) Optional Rugged Accessories
- Docking station (office / vehicle)
- Hand strap / shoulder strap
- Vehicle charger
- Protective carry case
- Barcode scanner (1D / 2D)
- RFID / NFC reader
- High-precision GNSS module
15) Typical Applications
- Industrial automation & HMI
- Warehousing & logistics
- Field service & inspection
- Defence & security
- Oil & gas / mining
- Vehicle-mounted systems
- Smart factory & MES
- Medical & healthcare mobility
16) Key Difference: Rugged vs Industrial Android Tablet
Industrial Android Tablet
- Indoor / semi-industrial use
- Lighter body
- Lower IP rating
- Cost-effective
Rugged Android Tablet
- Outdoor & harsh environments
- High IP & MIL-STD compliance
- Drop & vibration resistant
- Vehicle-ready & mission-critical
Explanation:
What it is Rugged Android Tablet PC
A Rugged Android Tablet PC is a highly reinforced mobile computing device designed to operate reliably in harsh, outdoor, mobile, and mission-critical environments where shock, vibration, dust, water, and temperature extremes are common.
Key Characteristics
- Reinforced heavy-duty enclosure with rubber corner protection
- IP65 / IP67 dust and water protection
- MIL-STD-810G / 810H compliance (shock, vibration, drop)
- High-brightness display (700–1000 nits) for outdoor visibility
- Removable and hot-swappable battery options
- Sealed I/O ports with protective covers
- Optional vehicle docking, barcode scanner, GPS, NFC, LTE
- Wide operating temperature range (-20°C to +70°C)
Why Rugged Tablets are Used
- Survive drops, vibration, and rain without failure
- Reliable operation in outdoor and vehicle environments
- Ideal for field work, defence, logistics, mining, and oil & gas
- Designed for long-term, mission-critical deployments
- Lower downtime compared to consumer or semi-industrial tablets
Typical Applications
- Defence & homeland security
- Vehicle-mounted systems
- Field inspection & maintenance
- Logistics & warehousing
- Mining, oil & gas, construction
What it is Industrial Android Tablet PC
An Industrial Android Tablet PC is a professional touchscreen device intended for indoor or semi-industrial environments, focusing on stable operation, industrial I/O connectivity, and continuous 24×7 use.
Key Characteristics
- Slim aluminum alloy or metal enclosure
- Fanless, silent operation
- Front-panel IP54 / IP65 protection
- Industrial IPS LCD with medium brightness (350–600 nits)
- Fixed internal battery or DC-powered operation
- Rich industrial I/O (LAN, USB, RS-232/RS-485)
- Designed for panel mount, VESA mount, or desktop use
- Long product lifecycle and stable hardware availability
Why Industrial Tablets are Used
- Reliable replacement for HMIs and control panels
- Stable performance in factories and control rooms
- Easy integration with PLCs, machines, and MES systems
- Lower cost compared to rugged tablets
- Optimized for continuous operation rather than mobility
Typical Applications
- Factory automation & HMI
- Machine control panels
- Production monitoring
- Control rooms & kiosks
- Smart manufacturing systems
Rugged vs Industrial — Simple Understanding
- Rugged Tablet → Built for mobility + harsh environments
- Industrial Tablet → Built for stability + indoor industrial use
One-Line Difference
- Rugged Android Tablet PC: Maximum protection for outdoor and field operations
- Industrial Android Tablet PC: Cost-effective, stable solution for indoor industrial systems
