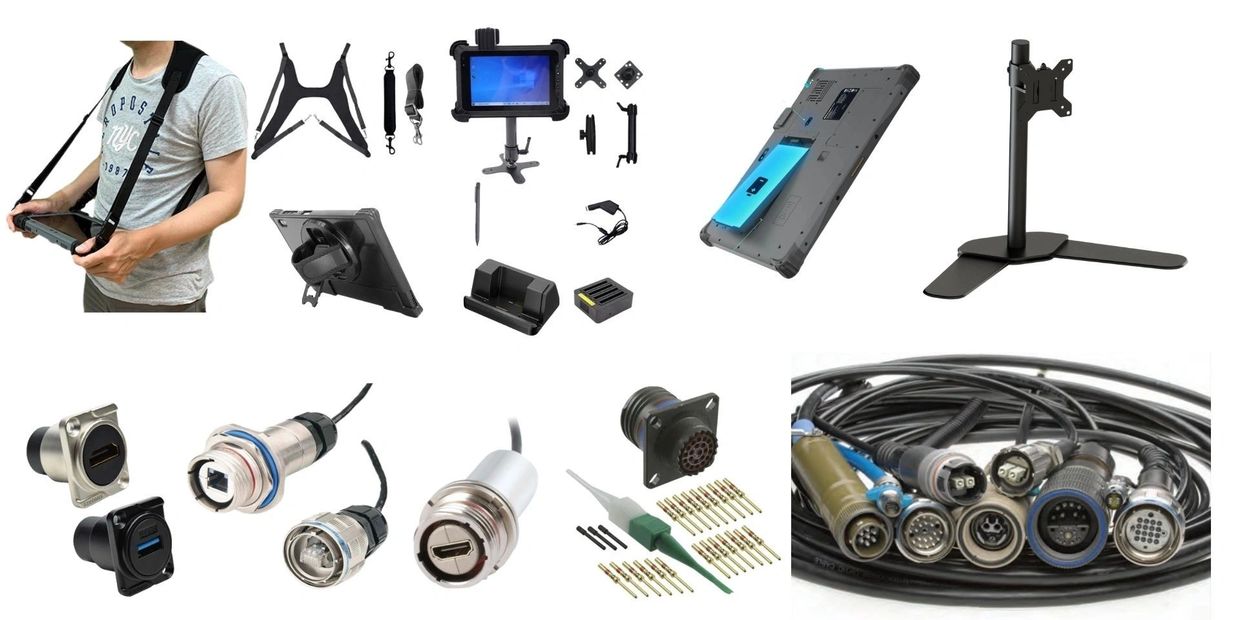

Rugged Accessories - Comprehensive Guide

---

1. 🔌 MIL Circular Connectors

MIL Circular Connectors are military-grade, high-reliability connectors designed for harsh environments such as Defence, Aerospace, Railways, Industrial Automation, and Rugged Computing Systems. These connectors comply with U.S. Military Standards (MIL-DTL series) and provide secure, vibration-resistant electrical connections.

Common MIL Connector Standards

MIL-DTL-38999 – High-density, lightweight, aerospace-grade connectors

MIL-DTL-5015 – Heavy-duty industrial & defence connectors

MIL-DTL-26482 – Compact circular connectors

MIL-DTL-83723 – High-performance miniature connectors

Each standard defines shell size, contact arrangement, environmental protection, and locking mechanism.

Key Technical Specifications

🔹 Mechanical Features

Shell Material: Aluminum alloy / Stainless steel

Finish: Olive drab cadmium / Nickel plated / Black anodized

Locking Type: Threaded coupling / Bayonet coupling

Vibration Resistance: MIL-STD-810 compliant

Mating Cycles: 500–1500 cycles (model dependent)

🔹 Electrical Specifications

Contact Type: Copper alloy, gold-plated

Current Rating: 5A to 100A (based on contact size)

Voltage Rating: Up to 1000V AC/DC

Insulation Resistance: ≥ 5000 MΩ

Contact Resistance: ≤ 2.5 mΩ

🔹 Environmental Ratings

Ingress Protection: IP67 / IP68 (mated condition)

Operating Temperature: -55°C to +125°C (extended versions available)

Shock & Vibration: High resistance for mobile platforms

EMI/RFI Shielding: Available with conductive backshell

Connector Types

Plug (Cable Side Connector)

Receptacle (Panel Mount Connector)

Inline Cable Connector

Jam Nut / Flange Mount Receptacle

Hermetic Sealed Connectors (for aerospace)

Why Choose MIL Circular Connectors?

Designed for mission-critical applications

High mechanical strength & corrosion resistance

Secure locking prevents accidental disconnection

Excellent EMI/RFI shielding capability

Long service life in extreme environments

Suitable for rugged tablet, panel PC, rugged smartphone, and defence systems

Typical Applications

Defence Communication Systems

Railway Signaling Equipment

Aerospace Avionics Systems

Oil & Gas Control Panels

Industrial Automation Machinery

Rugged Embedded Computers, Industrial Motherboard & Panel PCs

2. 🚗 Vehicle Docking Station

Purpose: Vehicle to tablet/laptop secure mounting & charging

Material: Aluminum alloy / reinforced ABS

Input Power: 9–36V DC wide input

Features:

Anti-vibration & shock resistant design

One-click lock / quick release mechanism

Integrated charging + I/O pass-through

Optional GPS / RF antenna pass-through

MIL-STD-810 compliant models available

3. 🎒 Hand Strap / Shoulder Strap

Purpose: Easy carrying & field mobility

Material: Nylon elastic + leather reinforcement

Features:

Adjustable length

360° rotating hand grip

Sweat-resistant material

Quick attach/detach system

Compatible with 8” / 10” / 12” tablets

4. 🔋 Battery Pack (Hot Swappable)

Type: Li-ion / Li-Polymer

Capacity: 5000mAh – 12000mAh

Voltage: 7.4V / 11.1V (model dependent)

Features:

Hot-swap support (no shutdown required)

Smart battery management system

Overcharge & short-circuit protection

Operating temp: -20°C to +60°C

5. 🔌 AC Adapter / DC Adapter

Input: 100–240V AC

Output: 12V / 19V DC (device based)

Features:

Over-voltage protection

Short circuit protection

Industrial-grade insulation

BIS / CE certified options

6. 🛡️ Protective Case / Silicon Cover

Material: TPU / Silicone / Hard Polycarbonate

Features:

Extra drop protection (1.2m–1.5m)

Dust & water resistant

Corner shock absorption

Anti-slip grip

7. ✏️ Stylus Pen (Active / Passive)

Type: Capacitive / Active digital pen

Features:

Waterproof tip

Pressure sensitivity (active models)

Glove touch compatible

Tether support

8. 🧱 Vehicle Mount / Wall Mount Bracket

Mount Type: VESA 75x75 / 100x100

Material: Powder-coated steel

Features:

360° adjustable angle

Anti-vibration locking

Suitable for factory & vehicle use
