Rugged & Industrial Console Systems — Full Technical Details
Product Overview
RUGGED CONSOLE SYSTEMS
Mechanical & Construction
- Heavy-duty aluminum alloy / steel enclosure
- Reinforced internal chassis with shock-isolated mounting
- Anti-vibration design for moving platforms
- Surface finish: powder-coated / anodized
- Front panel sealing: IP65 / IP67
- Compliance (optional): MIL-STD-810G / MIL-STD-810H
- EMC/EMI shielding for harsh electrical environments
Form Factor & Mounting
- Desk-mounted / rack-mounted / console-embedded
- Integrated foldable or fixed console design
- VESA mounting support
- Custom mechanical dimensions available
Display
- Screen sizes: 15.6″ / 17.3″ / 19″ / 21.5″ / 24″
- Resolution: 1920×1080 (FHD) / higher optional
- Panel type: Industrial-grade TFT LCD
- Brightness: 300–1000 nits
- Contrast ratio: ≥1000:1
- Viewing angle: 178° (H/V)
- Touch options:
- Non-touch
- Projected Capacitive (PCAP)
- Resistive
- Optical bonding (optional)
- Anti-glare, hardened front glass
Processing Platform
- Intel® Core™ i5 / i7 / i9 (8th to 13th Gen)
- Optional Intel® Xeon®
- Industrial chipset (Q370 / W480 / W680 class)
- Fanless or controlled-fan cooling
- 24×7 continuous duty design
Memory
- DDR4 / DDR5 RAM
- Capacities: 16GB / 32GB / 64GB
- ECC memory support (optional)
Storage
- NVMe SSD: 512GB / 1TB / 2TB / 5TB
- Optional SATA SSD / HDD
- RAID 0 / RAID 1 support (optional)
- Shock-mounted storage bays
Graphics
- Integrated Intel UHD Graphics
- Optional NVIDIA / AMD industrial GPU
- Multi-display support
I/O Interfaces
- USB 2.0 / USB 3.0 / USB-C
- RS-232 / RS-422 / RS-485
- Dual / Quad Gigabit LAN
- Optional 10GbE LAN
- HDMI / VGA / DisplayPort / DVI
- Digital I/O / GPIO (optional)
- Audio in / Audio out
- Expansion via PCIe / Mini-PCIe (optional)
Rugged Connectors
- Circular military-grade connectors (D38999 type)
- Locking power and signal connectors
- Vibration-proof cable retention
- IP-rated connector sealing
Power Input
- AC input: 110–240V
- DC input: 12–36V wide range
- Redundant power supply (optional)
- Surge, spike, and reverse-polarity protection
Integrated Console Features
- Built-in industrial keyboard
- Touchpad / trackball
- Optional backlit keys
- Integrated speakers: 5W / 10W
- Alarm buzzer (optional)
- Status LEDs
Operating System Support
- Windows 10 Pro
- Windows 11 Pro
- Windows IoT
- Linux (Ubuntu / Debian / Red Hat)
Environmental Specifications
- Operating temperature: -20°C to +70°C
- Storage temperature: -40°C to +85°C
- Humidity: 10%–95% RH, non-condensing
- Shock & vibration resistance (rugged grade)
Control Types (Optional)
- 2-Axis Joystick (X / Y)
- 3-Axis Joystick (X / Y / Z – twist)
- Multi-axis control lever
- Spring-return to center or detent-based positioning
- Self-centering or non-centering options
- Locking position (optional)
INDUSTRIAL CONSOLE SYSTEMS
Mechanical & Construction
- Industrial metal enclosure
- Sheet-metal or aluminum housing
- Front panel protection: IP65 / IP67
- Standard industrial EMC protection
- Service-friendly internal layout
Form Factor & Mounting
- Desk-top console
- Panel-mounted console
- Rack-mounted console
- VESA mount support
Display
- Screen sizes: 15.6″ / 19″ / 21.5″ / 24″
- Resolution: Full HD
- Panel type: Industrial LCD
- Brightness: 250–400 nits
- Viewing angle: Wide-angle
- Touch options: Capacitive / Resistive
- Anti-glare front surface
Processing Platform
- Intel® Core™ i3 / i5 / i7
- Intel® Celeron / Pentium
- Industrial motherboard
- Designed for 24×7 operation
Memory
- DDR4 RAM
- Capacities: 8GB / 16GB / 32GB
Storage
- SSD: 128GB / 256GB / 512GB / 1TB
- Optional HDD
- Easy access for replacement
Graphics
- Integrated Intel Graphics
- Dual display support (model dependent)
I/O Interfaces
- USB 2.0 / USB 3.0
- RS-232 / RS-485
- LAN (single / dual)
- HDMI / VGA
- Audio I/O
Power Input
- AC input: 110–240V
- Optional DC 12V input
- Industrial SMPS with protection
Console Features
- Standard industrial keyboard
- External or integrated mouse
- Optional built-in speakers
Operating System Support
- Windows 10
- Windows 11
- Linux (Ubuntu / Debian)
Environmental Specifications
- Operating temperature: 0°C to +60°C
- Storage temperature: -20°C to +70°C
- Humidity: 10%–90% RH, non-condensing
Explanation:

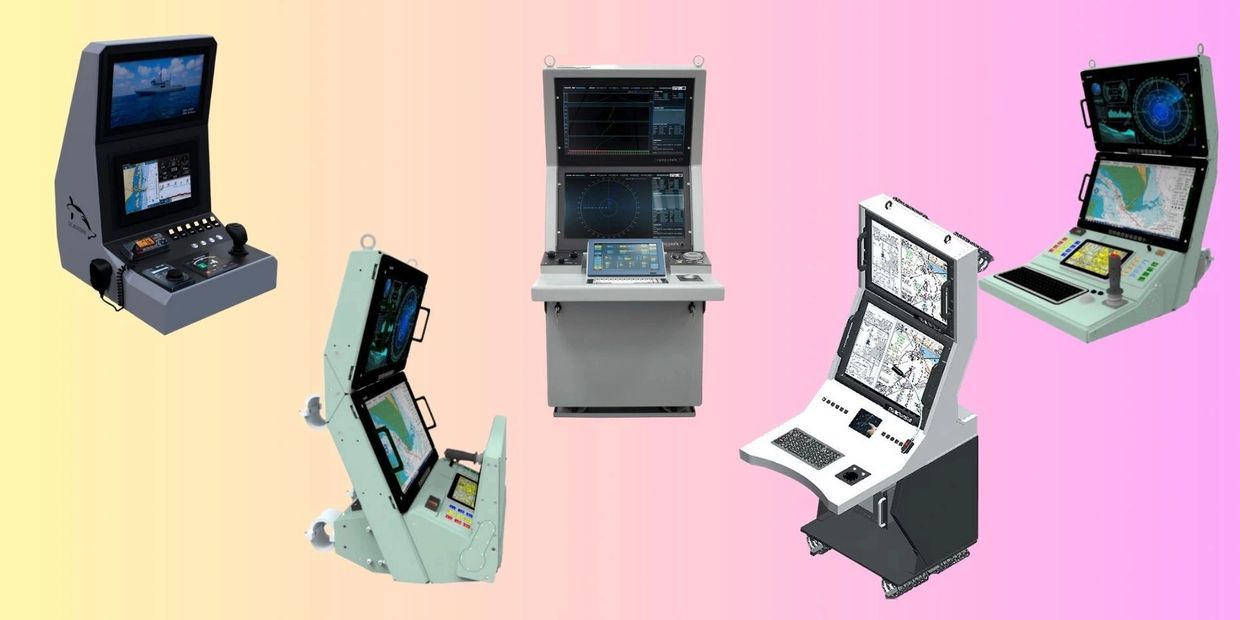

RUGGED CONSOLE SYSTEM
What is a Rugged Console System?
A Rugged Console System is a fully integrated operator console designed to operate reliably in harsh, mission-critical environments. It combines an industrial display, high-performance computer, keyboard/pointing device, speakers, and I/O interfaces into a ruggedized enclosure that withstands shock, vibration, dust, moisture, temperature extremes, and electrical interference.
Key Characteristics
- Heavy-duty aluminum/steel rugged enclosure
- Front panel IP65 / IP67 protection
- MIL-STD-810G / MIL-STD-810H compliance (optional)
- Wide operating temperature range (typically -20°C to +70°C)
- Industrial-grade LCD with optional sunlight readability
- Circular military-grade connectors (D38999 type) for I/O and power
- High-performance processors (Intel® Core™ i5 / i7 / i9 / Xeon®)
- High RAM and NVMe SSD storage with RAID options
- Shock-mounted internal components
- Designed for 24×7 continuous operation
Why Choose a Rugged Console System?
- Required where system failure is not acceptable
- Reliable operation in outdoor, mobile, defense, and extreme industrial environments
- Long product life cycle and component stability
- Secure locking connectors prevent accidental disconnection
- Suitable for environments with vibration, dust, humidity, and power fluctuations
Type of Applications
- Defence command & control centers
- Radar, surveillance, and monitoring systems
- Railway signaling and control rooms
- Naval, aerospace, and ground-support systems
- Oil & gas control rooms (onshore/offshore)
- Power plants and substations
- Mobile command vehicles
INDUSTRIAL CONSOLE SYSTEM
What is an Industrial Console System?
An Industrial Console System is an operator workstation intended for factory floors, control rooms, and automation environments where conditions are controlled but continuous operation is required. It integrates display, computer, keyboard/mouse, and standard industrial I/O in a durable metal enclosure without full military-grade ruggedization.
Key Characteristics
- Industrial metal enclosure
- Front protection up to IP54 / IP65
- Standard industrial LCD display
- Moderate brightness suitable for indoor use
- Intel® Core™ i3 / i5 / i7 or Celeron/Pentium processors
- DDR4 RAM and SSD storage
- Standard I/O ports (USB, COM, LAN, HDMI, VGA)
- AC power input with optional DC support
- Designed for 24×7 industrial operation
Why Choose an Industrial Console System?
- Cost-effective solution for industrial environments
- Easy integration with PLC, SCADA, MES, and HMI systems
- Simple installation and maintenance
- Reliable performance in factory and control room conditions
- Ideal balance between performance and cost
Type of Applications
- Factory automation control stations
- SCADA and HMI operator panels
- Manufacturing and assembly lines
- Process monitoring and control rooms
- Pharmaceutical and food processing plants
- Utilities and infrastructure monitoring
- Packaging and inspection systems
