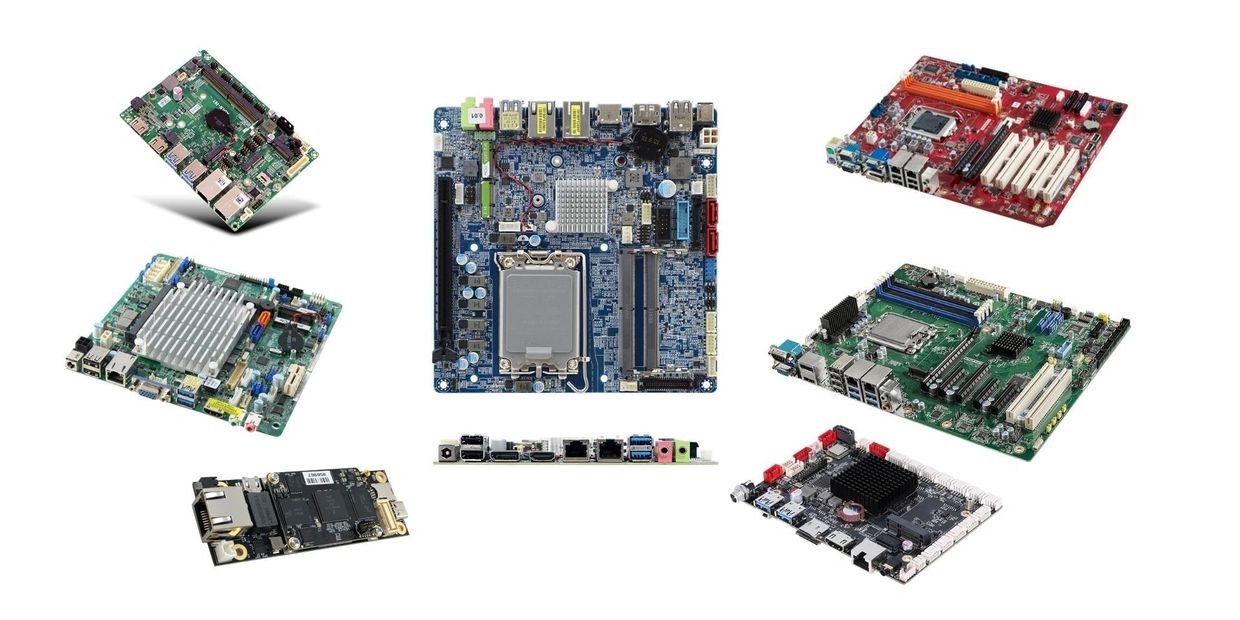

Industrial Motherboard – Detailed Specifications
Product Overview
1. Industrial Motherboard (Full-Size / Standard Industrial)
Overview
An industrial motherboard is designed for 24×7 continuous operation in harsh environments such as factories, railways, defense systems, and automation panels. It prioritizes stability, long lifecycle support, and wide temperature tolerance.
⚙️ Processor (CPU)
- Intel® Core™ i3 / i5 / i7 / i9 (6th to 14th Gen, depending on chipset)
- Intel® Xeon® (for workstation/industrial servers)
- Intel® Pentium® / Celeron® (entry-level industrial systems)
- AMD Ryzen™ Embedded / Ryzen™ Industrial (select models)
🧠RAM (Memory)
- 2 to 4 DIMM slots
- DDR4 / DDR5 RAM
- Capacity: 8GB to 128GB
- ECC RAM support available on Xeon/industrial chipsets
💾ROM / Storage
- SATA III ports (HDD / SSD)
- M.2 NVMe / SATA SSD slots
- Optional eMMC / onboard flash (industrial variants)
🔌I/O Ports
- USB 2.0 / USB 3.2
- HDMI / DisplayPort / VGA / DVI
- Dual or Quad LAN (Intel® LAN preferred)
- Multiple COM ports (RS-232 / RS-422 / RS-485)
- PCI / PCIe expansion slots
- GPIO, SMBus, LPC headers
📌 Key Characteristics
- Wide operating temperature: -20°C to +70°C
- Long product lifecycle (5–10 years)
- High EMI/ESD protection
- Supports industrial OS (Windows IoT, Linux, QNX)
2. Mini Motherboard (Mini-ITX / Thin-ITX / SBC)
Overview
A mini motherboard is a compact industrial board optimized for space-constrained systems like fanless box PCs, HMIs, kiosks, and embedded controllers.
⚙️Processor (CPU)
- Intel® Atom® x6000 series
- Intel® Celeron® / Pentium® (J/N series)
- Intel® Core™ i3 / i5 (low-power variants)
- AMD Ryzen™ Embedded R-series / V-series
🧠RAM (Memory)
- 1 or 2 SO-DIMM slots
- DDR4 / DDR5
- Capacity: up to 64GB
💾ROM / Storage
- M.2 NVMe / SATA
- SATA SSD / HDD
- Onboard eMMC (optional)
🔌I/O Ports
- USB 2.0 / USB 3.0
- HDMI / DP / LVDS / eDP (for panel displays)
- 1 or 2 LAN ports
- Audio In/Out
- COM ports via headers
- GPIO / I²C / SPI
📌 Key Characteristics
- Small form factor
- Low power consumption
- Ideal for fanless designs
- Suitable for embedded and mobile systems
3.Android Motherboard (Industrial / Embedded)
Overview
An Android motherboard is an embedded ARM-based industrial board designed to run Android OS for touch-driven and multimedia-centric applications. It is widely used in industrial HMIs, kiosks, digital signage, medical displays, and rugged tablets. These boards emphasize low power consumption, fanless operation, and rich display connectivity.
⚙️Processor (CPU)
- ARM Cortex-A53 / Cortex-A55 / Cortex-A72
- Octa-Core or Quad-Core architecture
- Typical SoC families:
- Rockchip (RK3288, RK3399, RK3566, RK3588)
- Qualcomm Snapdragon (industrial variants)
- MediaTek (MT8xxx / MT87xx series)
Performance Focus:
Optimized for UI rendering, touch response, video playback, and network connectivity
rather than heavy computing.
🧠RAM (Memory)
- LPDDR3 / LPDDR4 / LPDDR4X
- Capacity options: 2GB / 4GB / 8GB / 16GB
- Onboard soldered memory for vibration resistance
💾ROM / Storage
- eMMC onboard storage: 16GB / 32GB / 64GB / 128GB
- MicroSD card support (optional)
- External storage via USB or SATA (model dependent)
🎨 Display & Graphics
- HDMI output (up to 4K on high-end SoCs)
- LVDS / eDP / MIPI-DSI for industrial LCD panels
- Multi-display support (select models)
- Hardware video acceleration (H.264 / H.265)
🔌I/O Ports
- USB 2.0 / USB 3.0
- Ethernet LAN (10/100 or Gigabit)
- Wi-Fi & Bluetooth (onboard or module-based)
- RS-232 / RS-485 (via headers or DB9)
- GPIO, I²C, SPI, UART
- Audio In / Out (Line-out, Mic-in)
- Camera input (MIPI-CSI)
Operating System Support
- Android 9 / 10 / 11 / 12 / 13 (board dependent)
- AOSP support
- Optional Linux (Yocto / Ubuntu) on some platforms
📌Key Characteristics
- Fanless, low-power design
- Fast boot time
- Touch-optimized UI support
- Long lifecycle availability
- Stable operation in 24×7 environments
🏭 Typical Applications
- Industrial HMI & touch panels
- Digital signage systems
- Self-service kiosks
- POS terminals
- Medical display systems
- Rugged tablets & panel PCs
- Smart transportation displays
Rugged Motherboard
Key Characteristics
- Designed for extreme environments and mission-critical use
- Wide operating temperature range (typically -40°C to +85°C)
- High resistance to shock, vibration, dust, humidity, and EMI/EMC
- Conformal coating for moisture and corrosion protection
- Long lifecycle support with component traceability
- Supports fanless and sealed system designs
Why Choose a Rugged Motherboard
- Ensures uninterrupted operation in harsh field conditions
- Reduces system failure and maintenance costs
- Meets military, aerospace, and transportation standards
- Ideal for outdoor and mobile deployments
- High reliability for mission-critical operations
Types of Applications
- Defence and military systems
- Aerospace and avionics platforms
- Railway signaling and onboard systems
- Oil & gas exploration equipment
- Mining and heavy-duty industrial vehicles
- Outdoor rugged computers and consoles
Industrial Motherboard
Key Characteristics
- Designed for continuous 24×7 industrial operation
- Operating temperature typically -20°C to +70°C
- High stability with industrial-grade components
- Multiple I/O and expansion options (COM, LAN, PCIe)
- Long availability and backward compatibility
- Optimized for control panels and factory systems
Why Choose an Industrial Motherboard
- Reliable performance in controlled industrial environments
- Cost-effective compared to rugged boards
- Easy integration with automation and legacy systems
- Supports wide range of processors and operating systems
- Ideal for long-term industrial deployments
Types of Applications
- Factory automation and control panels
- PLC and SCADA systems
- Industrial HMIs and kiosks
- Manufacturing execution systems (MES)
- Medical and laboratory equipment
- Indoor industrial computing systems
Android Motherboard (Industrial / Rugged Embedded)
Key Characteristics
- ARM-based embedded platform optimized for Android OS
- Low power consumption with fanless operation
- Fast boot time and smooth touch UI performance
- Supports multiple display interfaces (HDMI, LVDS, eDP, MIPI)
- Onboard RAM and eMMC for vibration resistance
- Rich I/O support: USB, LAN, Wi-Fi, Bluetooth, GPIO, COM
- Available in industrial-grade and ruggedized variants
- Long lifecycle support for embedded deployments
Why Choose an Android Motherboard
- Ideal for touch-based and UI-driven applications
- Lower power and heat compared to x86 platforms
- Faster startup suitable for always-on systems
- Easy application development and customization
- Cost-effective solution for large-scale deployments
- Strong multimedia and network performance
- Supports remote management and OTA updates
Types of Applications
- Industrial HMI and touch panel PCs
- Digital signage and advertising displays
- Self-service kiosks and ticketing systems
- POS terminals and retail systems
- Medical display and monitoring devices
- Smart transportation and information displays
- Rugged tablets and mobile industrial devices
