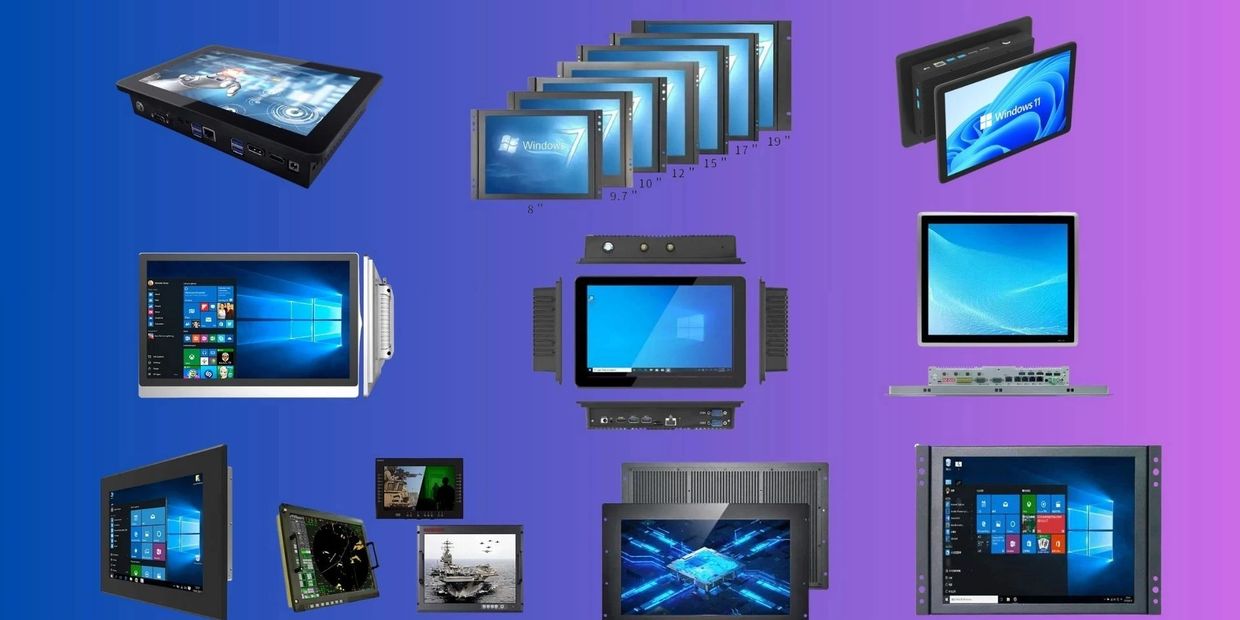

Rugged & Industrial Panel PCs (7″–24″)
Customer Requirement Specifications
🖥️ Windows-Based All-in-One Industrial Computing Systems
Rugged & Industrial Panel PCs are integrated Windows-based computing platforms combining an industrial touch display and embedded x86 architecture. They are designed for 24×7 continuous operation in factory floors, control rooms, vehicles, railways, defense installations, outdoor kiosks, and other mission-critical environments.
Display Subsystem
- 🖥️ Screen Sizes: Compact 7″–13.3″ & Large 15.6″–24″ options
- 🧩 Panel Type: Industrial IPS / TFT LCD with wide viewing angle
- 📐 Resolution: 800×480 up to Full HD / WUXGA / QHD (model dependent)
- ☀️ Brightness: 300–500 nits standard, 800–1000 nits sunlight-readable option
- 👆 Touch Technology: PCAP multi-touch & resistive touch support
- 🛡️ Surface: Anti-glare, anti-reflection hardened glass
- 🔗 Optional: Optical bonding for outdoor & vibration-prone environments
Processor Platforms
- ⚙️ Intel Low-Power Series: Intel Atom / Celeron / Pentium
🔹 Models: N4120 / N5100 / N6211 / J1900 / J6412 Up to 4.20Ghz - 🚀 Intel Core Series: Intel Core i3 / i5 / i7 / i9 Up to 4.20Ghz
🔹 Generation: 6th to 13th Gen (application dependent) - 🧠 System Memory: 4 GB / 8 GB / 16 GB / 32 GB / 64 GB
📦 Memory Type: DDR3L / DDR4 / DDR5 (platform dependent) - 💾 Storage (Primary): M.2 SATA SSD / M.2 NVMe SSD (128 GB – 2 TB)
- 📀 Storage (Optional): 2.5″ SATA SSD / HDD
- 🛡️ RAID Support: Available on selected industrial models
Operating System Support
- 🪟 Standard (Primary):
• Windows 10 Pro, Windows 11 Pro, Windows IoT Enterprise - 🐧 Optional (Linux):
• Linux OS
• Ubuntu
• Debian
• Red Hat Enterprise Linux (RHEL)
I/O Interfaces (Configurable)
- 🔌 USB Ports: USB 2.0 / USB 3.0 / USB 3.2
- 🔄 USB Type-C: Optional support
- 🌐 Ethernet: 1× / 2× / 3× Gigabit LAN
- 📡 Serial Ports: RS232 / RS422 / RS485
- 🖥️ Video Output: HDMI / VGA / DisplayPort / DVI
- 🔊 Audio: Line-in / Line-out / Optional internal speaker
- ⚡ Digital I/O: GPIO (optional)
- 🧩 Expansion: Mini-PCIe / PCIe (model dependent)
- 📶 Connectivity Slots: SIM slot & Micro-SD (optional, for LTE modules)
Rugged / Industrial Connector Options
- 🔒 Circular Locking Connectors: Rugged connectors for Power & I/O
- 🛠️ Industrial Locking Interfaces: Designed for high vibration & shock resistance
- 🔗 Pogo-Pin Interface: Optional docking support for quick connect / disconnect
Wireless & Communication (Optional)
- 📡 Wi-Fi: 802.11 a/b/g/n/ac/ax
- 🔵 Bluetooth: Version 5.0 / 5.3
- 📶 Cellular: 4G LTE / 5G modem support
- 🧭 GNSS: GPS / GLONASS / BeiDou / Galileo
- 🏷️ Short-Range ID: NFC / RFID modules
Power Input
- 🔋 DC Input: Wide-range 9–36 VDC
- ⚡ Typical Systems: 12 V / 24 V DC
- 🛡️ Protection: Reverse polarity, surge & over-voltage protection
- 🔌 AC Adapter: 100–240 VAC input (optional)
Mechanical & Thermal Design
- 🧱 Enclosure: Heavy-duty aluminum / aluminum-alloy or stainless-steel housing
- ❄️ Thermal Design: Fanless cooling; smart-fan on high-performance models
- 🔒 Front Panel: Sealed front-panel construction for harsh environments
- 🎨 Finish: Industrial powder-coated or anodized surface treatment
Mounting Options
- 🧩 Panel Mount: Cabinet-embedded installation
- 📐 VESA Mount: 75×75 mm / 100×100 mm
- 🧱 Wall / Desk: Wall mount or desktop stand support
- 🚜 Special Mounts: Console, vehicle & rail mounting (optional)
Environmental Specifications
- 🌡️ Environmental Specifications
• Operating Temp: –20°C to +60°C
• Wide Temp (Rugged): –40°C to +70°C
• Storage Temp: –40°C to +85°C - Humidity: 0–95% RH, non-condensing
- 🛠️ Shock & Vibration: Industrial grade / MIL-STD-810 (rugged models)
Reliability & Protection
- ⚡ ESD Protection: ±8 kV contact / ±15 kV air
- 📶 EMI / EMC: Industrial compliance
- ⏱️ Designed for 24×7 continuous operation
- 🔁 Long lifecycle with stable component availability
Certifications (Model Dependent)
- ✅ CE / FCC / RoHS
- 🏥 EN60601 (medical variants)
- 💥 ATEX / Explosion-proof (special rugged models)
- 🎖️ MIL-STD-810 (rugged configurations)
Typical Applications
- Industrial HMI & SCADA
- Factory automation & PLC systems
- Control rooms & monitoring stations
- 🚆 Railways | 🛡️ Defense | ✈️ Aerospace
- 🚜 Vehicle-mounted computing
- 🌦️ Outdoor kiosks & terminals
- 🛢️ Oil & gas | ⛏️ Mining | ⚡ Power plants
Explanation:
What is an Industrial Panel PC?
An Industrial Panel PC is a Windows/Linux-based, all-in-one computer designed for controlled industrial environments such as factories, control rooms, and production lines.
It integrates an industrial display with an embedded x86 computing platform, optimized for reliability, long lifecycle, and 24×7 operation.
Key Characteristics – Industrial Panel PC
- Designed for indoor industrial environments
- Fanless aluminum enclosure
- Front panel IP65 protection (dust & water splash)
- Standard industrial I/O (USB, LAN, COM)
- Wide voltage DC input (9–36V)
- Stable operation in moderate temperature ranges
- Long-term component availability
Typical Applications – Industrial Panel PC
- Factory automation & PLC interface
- Industrial HMI & SCADA
- Control cabinets & production monitoring
- Process industries (pharma, food, packaging)
- Power plants & utilities
- Indoor kiosks & operator terminals
Why Choose an Industrial Panel PC?
- Cost-effective for factory environments
- Optimized for cabinet and control-room use
- Easy integration with existing industrial systems
- Lower maintenance with fanless design
- Ideal where extreme ruggedization is not required
What is a Rugged Panel PC?
A Rugged Panel PC is a reinforced industrial computer engineered for harsh, outdoor, mobile, and mission-critical environments.
It extends industrial design by adding shock, vibration, wide-temperature, and ingress protection, making it suitable for defense, railways, vehicles, and oil & gas applications.
Key Characteristics – Rugged Panel PC
- Designed for harsh, outdoor, and mobile environments
- Reinforced aluminum or stainless-steel enclosure
- IP65 / IP67 front or full enclosure protection
- Circular locking connectors for power & I/O
- Shock & vibration resistance (MIL-STD-810)
- Wide operating temperature (–40°C to +70°C)
- High-brightness sunlight-readable display (optional)
- Secure mounting for vehicles and mobile platforms
Typical Applications – Rugged Panel PC
- Defense & command systems
- Railways & traffic control
- Vehicle-mounted computing
- Oil & gas, mining, heavy industry
- Outdoor kiosks & terminals
- Aerospace & mission-critical monitoring
Why Choose a Rugged Panel PC?
- Reliable operation in extreme conditions
- Withstands shock, vibration, dust, moisture, and heat
- Secure connectors prevent cable disconnection
- Long service life in field deployments
- Essential for mobile, outdoor, and defense systems
Customised Products
8" Industrial Panel PC
- 🖥️ 7-inch HD LCD Touch Display – 1024×600 resolution, capacitive touch, IP65 front panel
- 🧠 Intel® J1900 Quad-Core Processor – 2.0 GHz base, 10W TDP with Intel® HD Graphics
- 💾 Expandable Memory & Storage – DDR3L SODIMM up to 8GB, 128GB mSATA SSD (default)
- 🔌 Rich I/O Connectivity – HDMI, VGA, LVDS, USB 3.0/2.0, Gigabit LAN, Audio, GPIO
- 📡 Expansion & Wireless Ready – Mini-PCIe slot with optional Wi-Fi & 4G LTE support
10.1" Industrial Panel PC
- 🖥️ 10.1” Sunlight-Readable Touch Display – 1280×800, 1000 nits, 10-point PCAP touch, IP67/68 front.
- 🧠 Intel® Core™ i7-6500U Powered – High-performance 6th Gen processor for industrial workloads.
- 💾 Flexible Memory & Storage – DDR4 RAM up to 8GB, SSD/HDD options for scalable needs.
- 🔌 Industrial I/O Connectivity – Dual LAN, USB 3.0/2.0, COM ports, HDMI & VGA output.
- 🌡️ Rugged Fanless Design – Wide temperature support, aluminum enclosure, VESA mounting.
15.6" Explosion Proof Panel PC
- 🖥️ 15.6” Full HD Industrial Display – 1920×1080, wide viewing angles, true-color LCD.
- 🧠 Intel® Core™ i5-1235U Platform – 7×24 continuous operation, integrated HD graphics.
- 💥 Certified Explosion-Proof Design – Ex ibIIC T6Gb / Ex ibD21 T80℃ with 6 mm explosion-proof glass.
- 🛡️ Full IP65 Stainless Steel Enclosure – SS304 true-flat, rounded-corner design with waterproof M12 connectors and air-pressure balancing valve for optimal internal stability and extended product life
- 🔌 Industrial I/O & OS Support – Dual GbE, USB 3.0, COM, HDMI; Windows 10/11 & Linux.
19" Industrial Touch Panel PC
- 🖥️ 19” Industrial-Grade Display – 1280×1024 resolution, wide viewing angles, up to 1000 nits sunlight-readable.
- 🧠 High-Performance Computing – Intel® Core™ i7-1255U processor with 16GB RAM & 512GB SSD for 24×7 operation.
- 🖐️ Industrial Touch Screen – 10-point projected capacitive touch, glove-friendly with fast & accurate response.
- 🛡️ Rugged IP65 Front Design – Aluminum alloy bezel, anti-UV treatment, fanless cooling for harsh environments.
- 🔌 Rich Industrial I/O – Dual LAN, USB 2.0/3.0, COM ports, HDMI & VGA with Windows/Linux OS support
21.5" Industrial Touch Panel PC
- 🖥️ 21.5” Full HD Industrial Display – 1920×1080 resolution, wide viewing angles, 300 nits brightness.
- 🧠 Intel® Core™ i5 Performance – i5-3427U processor with industrial-grade components for 24×7 continuous operation.
- 🖐️ Rugged Touch Screen – 10-point PCAP touch with 2 mm tempered glass, 7H surface hardness.
- 🛡️ Full IP65 Front Protection – Aluminum alloy bezel with hard anodizing, dustproof & waterproof design.
- 🔌 Flexible I/O & OS Support – USB, COM (RS232/485/422), HDMI, VGA with Windows & Linux support
24" Rugged Panel PC
- 📺 24-inch Full HD IPS LED display with anti-glare surface for clear visual output
- ⚙️ Powered by Intel® Core™ i7 processor – suitable for continuous industrial operation
- 💾 16GB DDR4 RAM (expandable) for smooth multitasking
- 🗄️ Storage configuration:
• 2TB HDD for large data storage
• 512GB SSD for high performance - 🔌 Multiple I/O interfaces:
USB, LAN (Ethernet), HDMI, VGA, Serial communication ports - 🛡️ Industrial-grade rugged design with robust construction & reliable thermal performance
