Rugged & Industrial Laptop — Full Technical Details

---

Rugged & Industrial Laptop PCs are high-reliability portable computing systems engineered for harsh industrial, outdoor, and mission-critical environments. These laptops feature reinforced construction, industrial-grade components, wide temperature operation, flexible I/O, optional hot-swap dual batteries, and long lifecycle support for 24×7 continuous operation.

• Display Sizes:
  • 13.3 / 14 / 15.6 Inch
• Panel Type: Industrial-grade IPS TFT LCD
• Resolution:
  • 13.3″ – Full HD (1920 × 1080)
  • 14″ – Full HD (1920 × 1080)
  • 15.6″ – Full HD (1920 × 1080), optional higher resolution
• Brightness:
  • Standard industrial brightnes
  • Optional high-brightness sunlight-readable panel
• Touch Options:
  • Non-Touch
  • Capacitive Multi-Touch (Optional)
• Surface Treatment:
  • Anti-Glare
  • Anti-Scratch Hardened Glass
• Optional Features:
  • Optical Bonding
  • Wide Viewing Angles


• Processor Family: Intel® Core™
• Supported Options:
  • Intel Core i5 / i7 / i9
• Supported Generations:
  • 8 / 9/ 10/ 11/ 12/ 13th Gen
• Core Architecture:
  • Multi-core design
  • Optimized for industrial and rugged workloads
• Clock Speed (Typical):
  • Base Frequency: 1.6 GHz – 3.0 GHz
  • Turbo Boost: Up to 5.0 GHz (CPU dependent)
• Performance Features:
  • Intel Turbo Boost Technology
  • Hyper-Threading (model dependent)
  • Virtualization support
  • Long-term availability processors for industrial use


• Memory Type:
  • DDR4 or DDR5 (platform dependent)
• Capacity Options:
  • 8/ 16/ 32/ 64 GB
• Dual-Channel Memory Support (model dependent)


• Primary Storage:
  • M.2 NVMe SSD
  • 128 GB / 256 GB / 512 GB / 1 TB / 2 TB
• Secondary Storage (Optional):
  • 2.5″ SATA SSD or HDD
• Additional M.2 Slot (Optional)
• Industrial-grade SSD support for vibration resistance


• Integrated Graphics:
  • Intel UHD Graphics
  • Intel Iris Xe Graphics
• Optional Dedicated GPU:
  • For workstation, AI, or graphics-intensive applications (model dependent)


• Standard Battery:
  • Removable Lithium-Ion Battery
• Double Battery Option (Optional):
  • Two removable batteries
  • Hot-Swap capability
  • Extended operating time for field applications
• Power Input:
  • AC Adapter: 100–240 V
  • Optional Wide-Range DC Input for vehicle and mobile use
• Battery Protection:
  • Over-charge protection
  • Over-discharge protection
  • Thermal protection
  • Battery health monitoring


• Slim DVD-RW Drive (Optional)
• Internal or modular bay design
• DVD bay can be replaced with:
  • Extra battery
  • Additional storage module


• USB Ports:
  • USB 3.2 / USB 3.0
  • USB 2.0
• Display Output:
  • HDMI
  • DisplayPort (Optional)
• Network:
  • RJ-45 Gigabit Ethernet (Single / Dual)
• Serial Interfaces (Optional):
  • RS-232
  • RS-422
  • RS-485
• Audio:
  • Headphone output
  • Microphone input
• Expansion:
  • SIM Slot
  • MicroSD / TF Card Slot
  • Docking Connector or Pogo-Pin (Optional)
  • Optional Rugged Circular Connectors


• Wi-Fi 5 / Wi-Fi 6
• Bluetooth 5.x
• Optional 4G LTE / 5G Module
• Optional GPS / GNSS


• Windows 10 Pro
• Windows 11 Pro
• Windows IoT
• Linux (Ubuntu / Debian / Red Hat compatible)


• Chassis:
  • Reinforced Aluminum / Magnesium Alloy
• Ingress Protection:
  • IP65 Front Panel (Typical)
  • Higher IP Rating Optional
• Shock & Vibration:
  • MIL-STD-810G / MIL-STD-810H (Optional)
• Operating Temperature:
  • –20°C to +60°C (Standard)
  • Extended range optional
• Storage Temperature:
  • –30°C to +80°C
• Humidity:
  • 5% to 95% Non-Condensing
• Designed for 24×7 Continuous Operation


• TPM 2.0 (Optional)
• BIOS Password Protection
• HDD / SSD Password Protection
• Secure Boot Support
• Kensington Lock Slot

• Form Factor: Rugged Clamshell Laptop
• Shock-Resistant Mechanical Design
• Optional Mounting:
  • Vehicle Dock
  • Desk Dock
  • Wall Mount
• Sealed ports for harsh environments


• Docking Station
• Vehicle Power Adapter
• External Battery Charger
• Carrying Case
• Shoulder Strap
• Barcode Scanner
• RFID Reader
• Fingerprint Scanner
• Custom Branding / OEM / ODM Support


• Defense & Homeland Security
• Railways & Transportation
• Oil & Gas / Mining
• Factory Automation
• Field Service & Maintenance
• Logistics & Warehousing
• Utilities & Infrastructure Monitoring

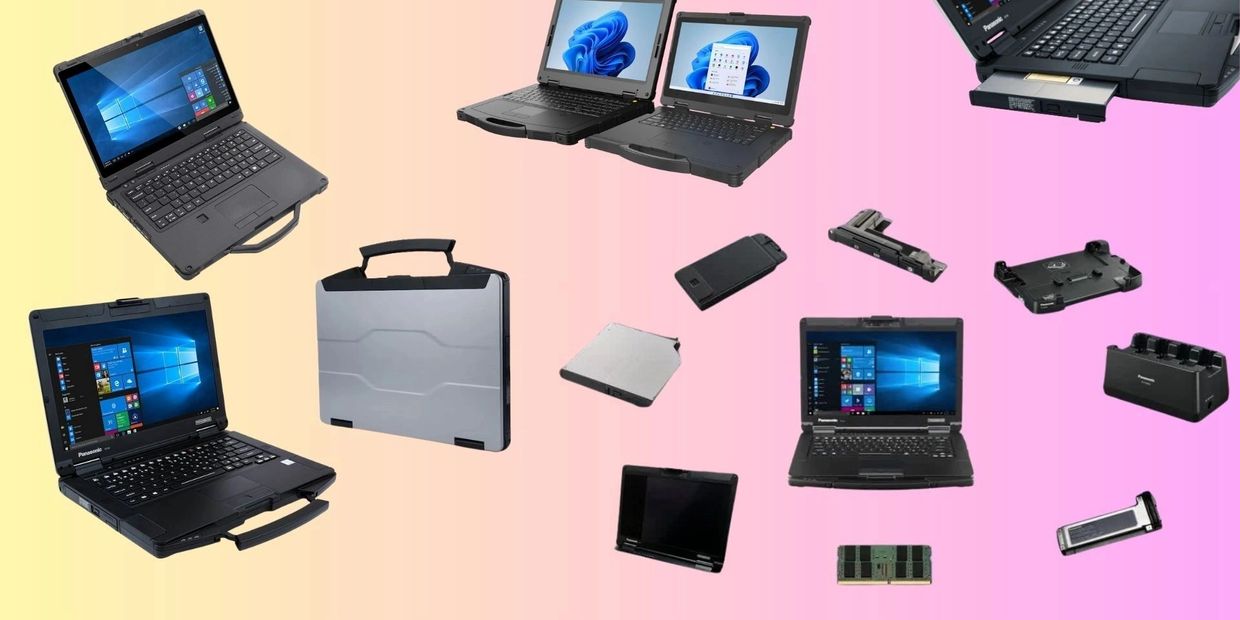

 OPTIONAL ACCESSORIES

• Front Expansion Unit – Adds modular functionality such as extra I/O, battery, or specialized interfaces.
• Rear Expansion Unit – Factory-configured rear module for additional connectivity or storage expansion.
• Port Replicator / Docking Station – Enables quick desktop connectivity to peripherals, display, LAN, and power.
• Vehicle Dock / Vehicle Mount – Secure mounting and power solution for in-vehicle and mobile applications.
• Universal Bay Unit – Modular bay supporting battery, optical drive, or storage expansion.
• Slim DVD Drive – Optional optical drive for legacy media access and data transfer.
• Additional Battery Pack – Secondary battery for extended runtime and hot-swap operation.
• Multi-Bay Battery Charger – Charges multiple batteries simultaneously for field and shift-based use.
• SSD Storage Module – High-speed storage expansion or quick-swap data module.
• Memory Module – RAM expansion to enhance multitasking and system performance.
• Protective Screen Film – Anti-scratch and anti-glare protection for touch and non-touch displays.
• Carrying Handle / Shoulder Strap – Improves portability during field operations.
• External Power Adapter – Spare AC or vehicle power adapter for uninterrupted operation.
• External Antennas – Enhances Wi-Fi, LTE, and GPS signal strength in challenging environments.
• Custom I/O Modules – Additional industrial interfaces such as RS-232, RS-422, RS-485, or LAN.
• OEM / ODM Custom Accessories – Project-specific accessories tailored to customer requirements.
