🖥️ Rugged & Industrial Displays – Technical Overview

   Rugged and Industrial Displays from 7″ to 55″+ are engineered for industrial automation, defence, railways, transportation, energy, mining, oil & gas, and control rooms.
Designed for 24/7 mission-critical operation, they deliver reliability, durability, and flexible configuration for harsh and demanding environments.

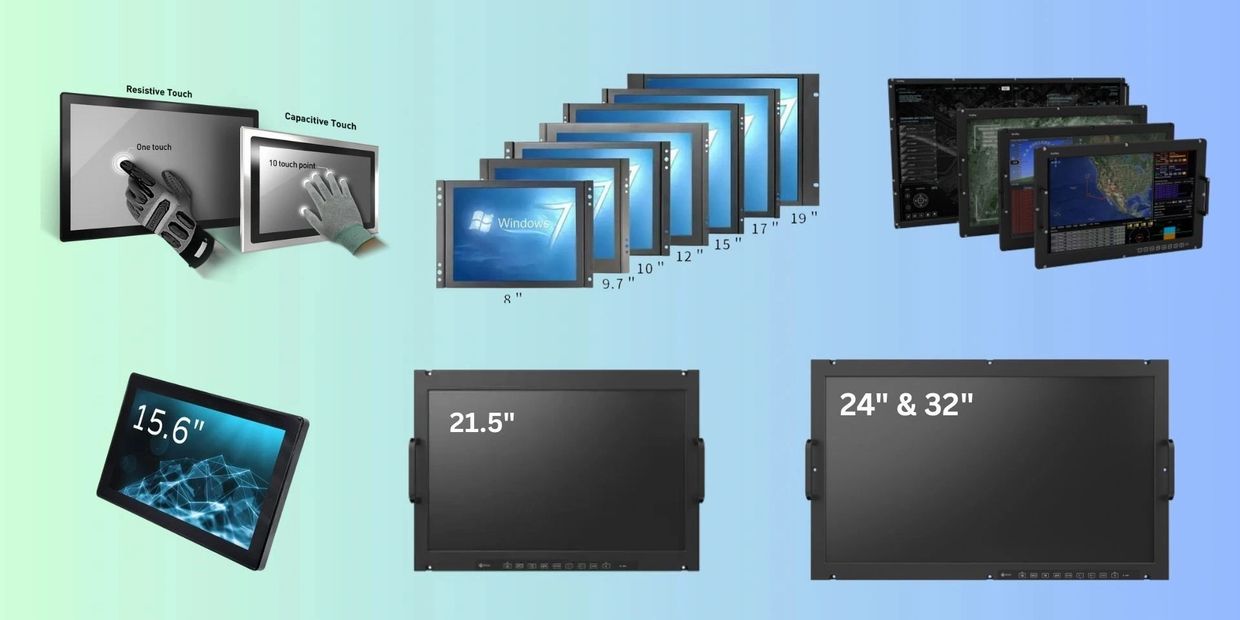

Display Size Coverage

     Available display sizes start from 7″ and extend through 8″, 10.1″, 10.4″, 12.1″, 15.6″, 19″, 21.5″, 24″, 27″, 32″, 40″, 45″, up to 55″ and above based on project needs.

This wide size range allows deployment from compact machine HMIs to large command-and-control visualization systems.

Rugged vs Industrial Display Concept

• For factories, control rooms, SCADA, indoor automation.
• Stable performance & long lifecycle.
• Cost-effective and reliable.

• For defence, railways, vehicles, mining, oil & gas, outdoor use.
• High durability, environmental protection.
• Mission-critical reliability.

Display Panel Technology

• Industrial-grade TFT LCD panels
• Optional IPS panels for wide viewing angles
• LED backlight with long service life
• Designed for 24/7 continuous operation
• Stable brightness and color consistency over time

Resolution & Aspect Ratio

Resolutions vary according to screen size:

• Small displays (7″–12.1″): optimized industrial      resolutions for HMI clarity
• Medium displays (15.6″–24″): Full HD (1920×1080)
• Large displays (27″ and above): Full HD or 4K      UHD

Standard aspect ratio is 16:9, with optional 4:3, 5:4, or 16:10 for legacy systems.

Brightness & Visibility

• Industrial versions: 250–350 nits, suitable for indoor environments
• Rugged versions: 700–1000 nits, suitable for high-ambient-light and outdoor use
• Optional sunlight-readable panels
• Anti-glare, anti-reflective, and anti-UV surface treatments

Why High Brightness Is Needed

High brightness ensures clear readability under sunlight or strong ambient lighting, especially for outdoor, vehicle-mounted, and field applications.

Touch & Non-Touch Options

 Non-Touch Displays

  Non-touch displays are used where:

• Input is via keyboard, mouse, joystick, PLC, or external controller
• Touch operation is not reliable due to gloves, vibration, or safety regulations
• Long-distance viewing is required

 Touch Displays

   Touch options include:

• Resistive touch for glove operation
• Projected Capacitive (PCAP) multi-touch
• Capacitive touch with glove and wet-finger support
• USB interface for touch

Why Touch Is Required

Touch displays enable direct interaction, reduce external input devices, save space, and improve usability in HMIs, kiosks, and control panels.

Speaker (Optional)

   Built-In Speaker Option

     Optional integrated speakers (typically 3W–10W) are available.

Why Speaker Is Required

Speakers are used for:

• Audio alerts and alarms
• System notifications and warnings
• Operator feedback in control rooms
• Training, demo, and monitoring applications

In rugged environments, audible alerts are critical for safety and operational awareness.

I/O Interfaces

Standard Industrial Interfaces

• HDMI
• VGA
• DisplayPort
• DVI (optional)
• USB (for touch interface)
• Audio input/output (optional)

MIL-STD / Rugged Circular Connectors

Connector Types

• MIL-STD circular connectors
• Amphenol / D38999 connectors
• Fully sealed power and signal connectors

Why MIL-STD Connectors Are Required

MIL-STD connectors are essential because they:

• Withstand high vibration and shock
• Prevent accidental disconnection
• Offer dust, water, and moisture protection
• Ensure signal stability in mobile and harsh environments
• Are mandatory in defence, railways, vehicles, and outdoor systems

These connectors dramatically improve system reliability and safety.

Power Input

• Wide-range DC input (9–36V or 12–36V)
• AC 100–240V external adapter
• Surge, over-voltage, and reverse-polarity protection

Why Wide DC Input Is Required

Wide DC input supports vehicle power systems, unstable industrial power sources, and field deployments.

Mechanical Construction

• Heavy-duty aluminum alloy enclosure
• Optional stainless steel (SS304 / SS316)
• Fanless design for silent operation
• Reinforced chassis for shock and vibration resistance

Mounting Options

• Panel mount
• VESA mount
• Rack mount
• Wall mount
• Console or custom structure mounting

Environmental Performance

• Industrial: -10°C to +60°C
• Rugged: -30°C to +70°C
• High resistance to dust, moisture, shock, and vibration

Ingress Protection

• Front panel IP65 standard
• Fully sealed rugged models available
• Suitable for dusty, wet, and outdoor environments

Reliability & Lifecycle

• Industrial-grade components
• Long product lifecycle (5–10+ years)
• High MTBF
• Designed for mission-critical and 24/7 operation

Typical Applications

• Industrial automation and HMIs
• Control rooms and command centers
• Defence and military systems
• Railway and transportation
• Oil & gas and mining
• Power plants and substations
• Outdoor kiosks and monitoring stations
• Vehicle-mounted systems

Final Brochure Summary

Rugged and Industrial Displays from 7″ to large-format sizes provide scalable, reliable, and configurable visualization solutions.
Industrial models suit controlled environments, while rugged models deliver extreme durability for harsh and mission-critical applications.
Options such as Touch / Non-Touch, Speakers, and MIL-STD connectors ensure the display is perfectly matched to operational, safety, and environmental requirements.
